2016 CE RoHS UL Certification 60w Solar Street Lamp 5 Years Warranty With High Efficiency Chip Solar Panel

2016 CE RoHS UL Certification 60w Solar Street Lamp 5 Years Warranty With High Efficiency Chip Solar Panel photo-1
2016 CE RoHS UL Certification 60w Solar Street Lamp 5 Years Warranty With High Efficiency Chip Solar Panel photo-2
US$ 215 - 365 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
KAICH
Model Number:
KAICHS01
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name KAICH
Model Number KAICHS01
Power Supply Solar
Application Other, high way , square, street
Lampshade Material Other, glass len
specification
Solution  as southeast asia sunshine duration
Solar Panel
240w
Gel battery
180Ah
Controller
10A
LED lamp
60w
Lighting Pole
8m
Foundation
320*320
Accessories
60MM
Life Span
5 years
Product Description

SOLAR PANEL

Cell:36/multicrystallinesillicon/156*134mm

Output Power : 240w

Output Power Tolerance : ± 5

 VMPP : 17.7v
IMPP: 6.8
VOC:22.7
ISC:7.36
STC: 1000w/M2 I rradiance 25DEGREE CELL temperature

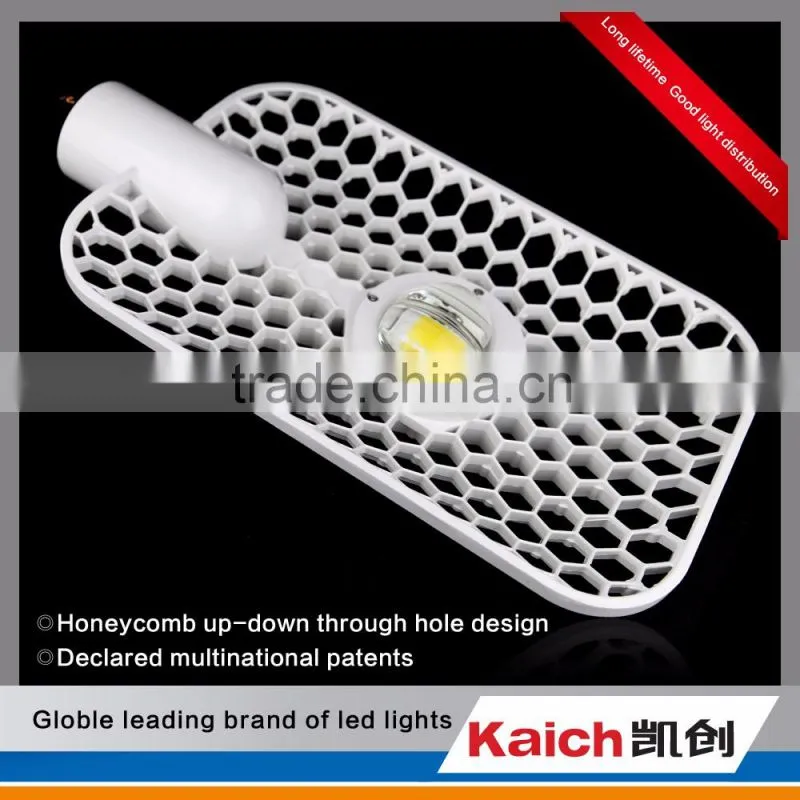

LED LAMP


Model :KC-F1 60w  Bridgelux or cree chip
Rated Voltage :  12v
Luminous Flux : 6600 Lums
Efficiency: 110 Lm/w
CRI : more than  75
CCT: 3000-6500k
Life time : More Than 50000hrs


Gel  Battery

Type:Free Maintenance gel deep recycle

capacity : 180Ah

Rated Voltage : 12v

Max. Discharge current :30I10A  (3min)

Self-Discharge : No more than 2% month

Ambient :-45 degree ~ 60 degree

Controller

Max Solar Current : 10A

Rated working Voltage : DC 12V

Max Solar Voltage : 55v

Ambient : -36 degree ~ 60 degree

Charging Model:MCT model automatically

Representative Efficiency :95%

Load Disconnect Voltage: 10.8~11.8v /21.6~23.6v

Max Battery voltage : 40v


Model
KAICHS01
KAICHS02
KAICHS03
LED Light Source
COB
COB
COB
Lamp Watt
60W
60 W
80W
Input Voltage
AC96-306V
AC96-306V
AC96-306V
Installation Process
Applications
Certifications
Company Information
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
