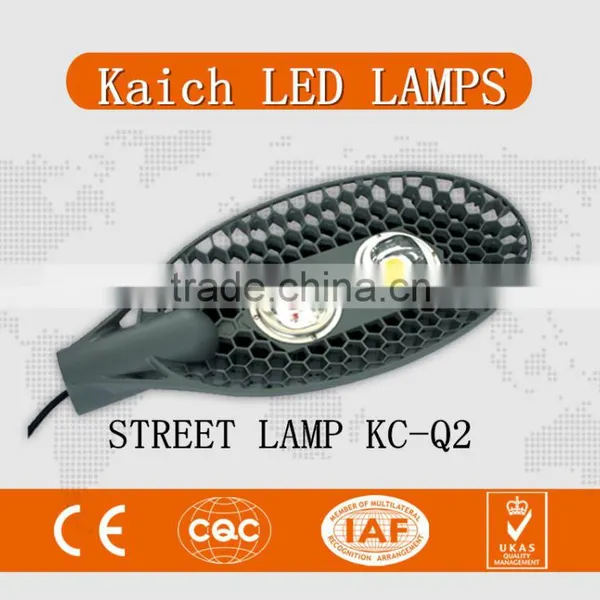

New Design Solar LED Street Light KC-Q2
Products Description
1. LED Light fixture
| KAICH LED KC-Q2 Lamp Parameters | |||||
| NO. | ITEM | ||||
| 1 | Model | KC-Q2 | |||
| 2 | Power Range(W) | 60W 80W 100W 120 W 140W | |||
| 3 | Solar Panel | Monocrysillicon and polysilicon | |||
| 4 | light source | intergrated optical source | |||
| 5 | Certifications | CE RoHS CQC | |||
| 6 | Color Temperature | 3000-6000k | |||
| 7 | Angle of Light Diffusion | 130°×90° | |||
| 8 | Rated Voltage | 110v/220v(constant-current) 1224V | |||
| 9 | Temp. Rise | 12-25°C | |||
| 10 | Light Effect | 128lmW(with AC) 149lmw (with solar panel) | |||
| 11 | Transmittance Efficiency | >95% | |||
| 12 | IP Code | 65 | |||
| 13 | Lifetime | >50000Hours | |||
| 14 | Ambient Tem. | -30~50°C | |||
| 15 | Body Material | Aluminium Die casting | |||
| 16 | Flux | 4500-13300lm | |||
| 17 | Product Size(cm) | 61 x 28 x 8.8 | |||
| (inches) | 24 x 11x 3.4 | ||||
2. Solar Panels
3. Gel Lea-acid Battery

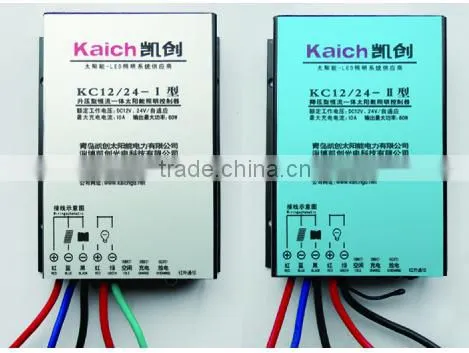

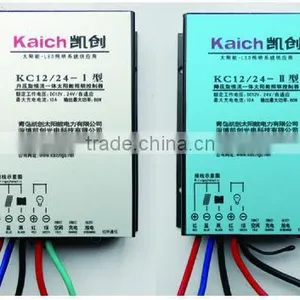

4. Intellegent Controller
Whole Set Pricing sheet Sample
Solar Street Light
Solar Garden/Lanscape Light
Patents technology
The advanced nature of LED lights is determined by its cooling technology. Good heat dissipation structure will reduce the temperature of the LED chip and improve the conversion efficiency of light, to reduce light decay rate and extend the chip’s service life.
Firstly,KAICH III adopts an up-down through-hole heat dissipation structure, which is conducive to the flow of hot and cold air and allows the heat sink better.
Contrast: Traditional LED lights use the heat-sink structure, which is not conducive to the rapid flow of hot and cold air, so that the cooling effect is poor.
Secondly, it adopts Hexagonal honeycomb through-hole structure, which is more conducive to diffuse the heat out of the center of the LED chip, so that the light shell’s cooling effect is better.
Thirdly, the design of no power supply box, can meet not only the condition that solar street lights do not need the built-in LED power supply, but also the demand of city light circuit application by external LED power supply, which reduces the cost of lights.
Fourthly, it adopts the integrated light source as the whole lamp light source, which greatly improves the efficiency of the whole lamp assembly and reduces the damage rate. Fifthly, with the use of high transmittance and high uniformity lens, the whole light’s illumination uniformity and light intensity increases significantly.
Fifthly, with the use of high transmittance and high uniformity lens, the whole light's illumintaion unifomity and light intensity increases significantly.

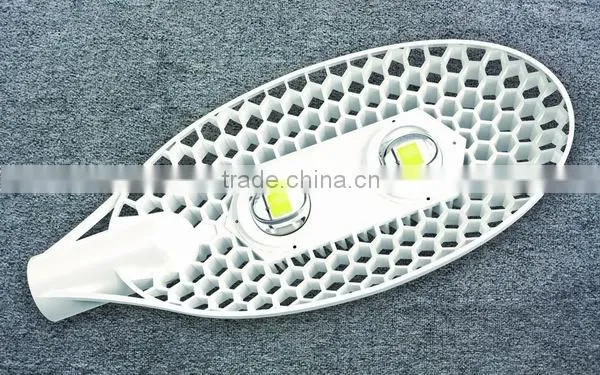

The Unique Heat Dissipation Structure
Application
Workshop ,gas station ,plaza ,tunnel lighting advertisement ighting village road , garden, park , high-speed way, exhibation hall square countryard ,billboard stadium warehouse and so on.
- Carton,plywood case,container
- Standing export packing
- Express,LCL. FCL
Kaich group ,with high starting point , high standard, professionalization, high quality products localization, puts the service concept “create value for customers with total satisfaction .move customers with sincerity ,beyond customers expectation” into every service process .Kaich group wins the praise from domestic and foreign clients with first class products and one-top service.
Shandong Kaich Optical & Electronic Technology Co.,Ltd,is the Solar-LED lighting products manufacturer base of Kaich group,with registration capital of CNY 10,000,000,has modern factory building of 5000 square meters,6 senior engineers,more than 50 professional and technical employees,with Marketing business Department,Production&Installation Department,Technology R&D Department,After-sale Service Department and other functional Department.
Kaich is specialized in designing and manufacturing Solar-Led lighting and related products,leads the Chinese solar LED Street Lamp Lighting Industry.
Products Range(Led street light,flood light,garden light and solar light)
Prodcution workshops
Lemen Test
Waterproof Test
1. All of your questions and suggestions related to us or our products, we will reply you within 24 hours.
2. Well-trained and passional sales & after- sale services.
3. We offer customize services. Can print your own logo on product , can customize the retail box packing and other things.
4. Shipping port: Qingdao, China mainland.
5. EXAMPLES are prepared.Discouts are offered based on order quantities.
Q: What are the advantages of solar led street light?
A: LED light source ten characteristics : 1. Small lamp body 2. Low energy consumption
3. Strong and durable 4. Long service life 5. Safe low voltage 6. Wide range of application
7. More colorful 8. Less heat dissipation 9. Environmental protection 10. Less cost.
Q: Is there cheap shipping cost to import to our country?
A: For small order, express will be the best. And for bulk order, sea ship way will be better ,
but take much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your place.

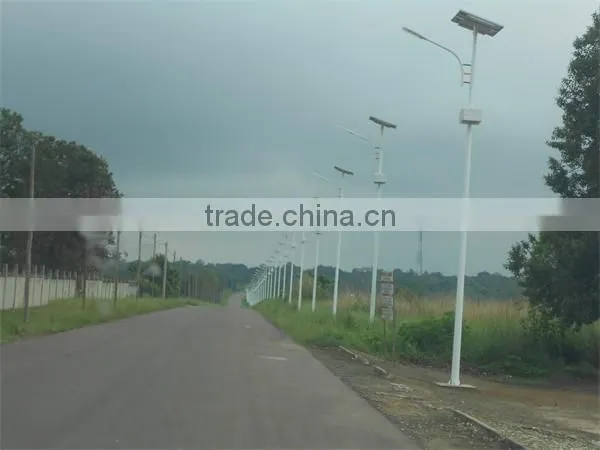

Africa and other projects
