LED Street Lamp without driver for Solar Lighting
KAICH KC-F1 20-60W
BEST QUALITY, LOWEST PRICE,
THE MOST POPULAR DESIGN IN 2015!
Shandong Kaich Optical& Electronic Technology Co., Ltd
1.We have been in LED light for more than 8 years.
2.Our main products are LED street light, solar LED street light system, LED flood light, LED garden light.
3.We have a professional technical team to serve every customer.
4.The design, honey-comb structure, have gotten patent from more than 9 countries: USA, european Union, Australia, India, Russia, South Africa and so on.
5.The lens are all designed by our optical design team and have gotten patents.
6.Our products have been sold to more than 20 countries.
| KC-F1 Lamp Parameters | |||||
| Model | KC-F1 | ||||
| Power consumption | 20w | 30w | 40w | 50w | 60w |
| Luminous Flux | 1900-2300lm | 2850-3450lm | 3800-4600lm | 4750-5750lm | 5700-6900lm |
| Lamp Body Material | Die-casting aluminum | ||||
| lamppost material | Q235 | ||||
| Lens | High transmittance borosilicate glass lens | ||||
| Source type | integrated light source | ||||
| Lighting effect | 110-120 lm/w | ||||
| Input & Voltage | AC 110/220V & DC12/24V | ||||
| Working Lifetime | >50000 hours | ||||
| Warranty | 3 years | ||||
| Color temperature | 3000-6000K | ||||
| CRI | Ra>70 | ||||
| Power factor | >0.95 | ||||
| IP rating | IP65 | ||||
| Driver brand: | Meanwell,Philips | ||||
| Battery type | Gel lead-acid battery | ||||
| Led chip brand | Cree / Bridgelux / Epistar | ||||
| Material | Aluminum with powder painting | ||||
| Angle of light diffusion | 160°*80°/170°*60° | ||||
| Working temperature | -40°C~50°C | ||||
| Certification | CE ISO CQC CCC | ||||
| Size | 480mm*260mm*70mm | ||||
| Product net weight | 2.3kg | ||||
| Driver position | outside | ||||
| Application | village,township,residential area,park, factory | ||||
| Installation height | 4-7m | ||||
| package | carton or wooden cases or Customers packing are acceptable | ||||
| Drive mode | the city electricity ,solar energy | ||||
Features
1. We use Bridgelux or Cree chips for all our LED lights. Our light source is integrated low voltage light source with patent honeycomb structured heat sink. Working power is 30w-240w. Main features of our chip is long service life for farly more than 50000hours and low voltage to avoid electric shock.

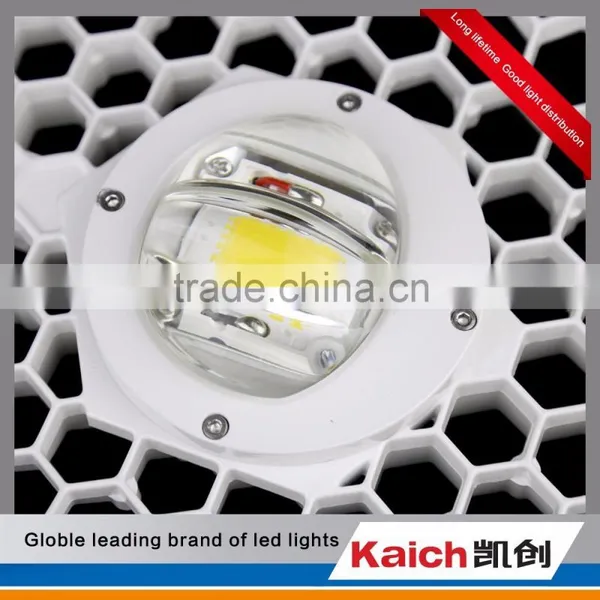

2. We have a independent reach team to design the lense for our LED light. The material of our lense is high borosilicate glass with high light transmittance rate of more than 95%. The design of our lense could make a better control of scatter light and improve the light uniformity and reducing light pollution.

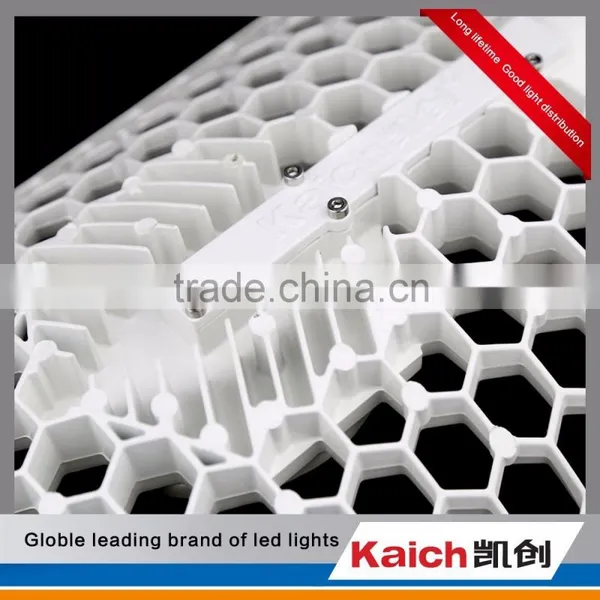

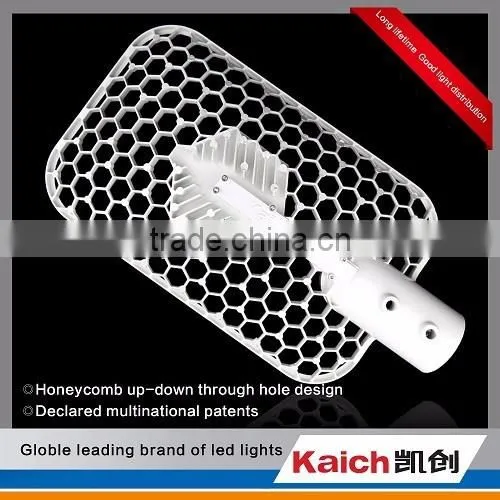

3. Our heat sink system is a patent honeycomb structured lamp shell. Heat dissipation is the main factor to influence the service life of LED chip. Good heat sink is a mark of good quality for any LED light. Our honeycomb structured heat sink could dissipate the sizable amount of heat generated by the light source efficiently. According to our test taken in factory, the luminous decay of the LED chip is less than 1% after working 8800 hours continuously. So, the life of LED chip could be prolonged to more than 50000 hours for sure.
On the other side, this kind of structure can reduce both the weight and cost of light with beautify appearance.
Waterproof testing
