COB LED Street Light IP 66 30W 40W 50W KC-F1+

Name: COB LED Street Light IP 66 30W 40W 50W KC-F1+
Brand: KAICH
SKU: 126498085
Availability: InStock

COB LED Street Light IP 66 30W 40W 50W KC-F1+ thumbnail-1

COB LED Street Light IP 66 30W 40W 50W KC-F1+ thumbnail-2

COB LED Street Light IP 66 30W 40W 50W KC-F1+ thumbnail-3

COB LED Street Light IP 66 30W 40W 50W KC-F1+ thumbnail-4

COB LED Street Light IP 66 30W 40W 50W KC-F1+ thumbnail-5

COB LED Street Light IP 66 30W 40W 50W KC-F1+ photo-1

COB LED Street Light IP 66 30W 40W 50W KC-F1+ photo-2

COB LED Street Light IP 66 30W 40W 50W KC-F1+ photo-3

COB LED Street Light IP 66 30W 40W 50W KC-F1+ photo-4

COB LED Street Light IP 66 30W 40W 50W KC-F1+ photo-5

US$ 67 - 67 MOQ: 1 Set

Key Specifications

Get Latest Price

LED Light Source:

COB Bridgelux

Input Voltage(V):

AC85-265V

Lamp Power(W):

Contact Supplier Request Quote Chat Now

Shandong Kaich Optical & Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source COB Bridgelux

Input Voltage(V) AC85-265V

Lamp Power(W) 50

Lamp Luminous Flux(lm) 5500

Lamp Luminous Efficiency(lm/w) 110

Color Temperature(CCT) Warm White

Working Temperature(℃) -40, 70

Working Lifetime(Hour) 50000

Lamp Body Material Aluminum

IP Rating IP66

Certification CE, CQC

Warranty(Year) 5

Place of Origin Shandong, China

Brand Name KAICH

Model Number KC-F1+

LED Street Light with COB LED chip.

Long life, Less weight, New design.

Power: 30W 40W 50W

Model No.: KC-F1+

LED chip: Bridgelux.

Driver: MEANWELL.

Specifications:

Model	KC-F1+
Power consumption	30W	40W	50W
Lighting effect	100-110 lm/w
Flux	3000-3300 lm	4000-4400 lm	5000-5500 lm
Input & Voltage	AC 85/305V & DC12/24V
Working Lifetime	>50000 hours
Warranty	5 years
Color temperature	3000-6000K
Power factor	>0.95
IP rating	IP66
Led chip brand	Cree / Bridgelux
Driver brand:	Meanwell
Material:	Aluminum with powder painting
Angle of light diffusion:	160°X80°/170°X60°
Working temperature:	-40°C~50°C
Certification	CE ISO CQC
CRI	Ra>85
Colar	RAL
Product net weight	1.6 KG
Product dimension:

Product Pictures:

Components & Features:

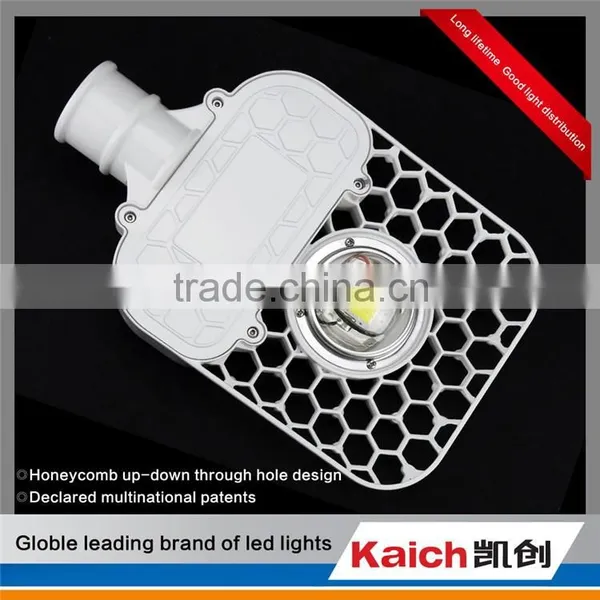

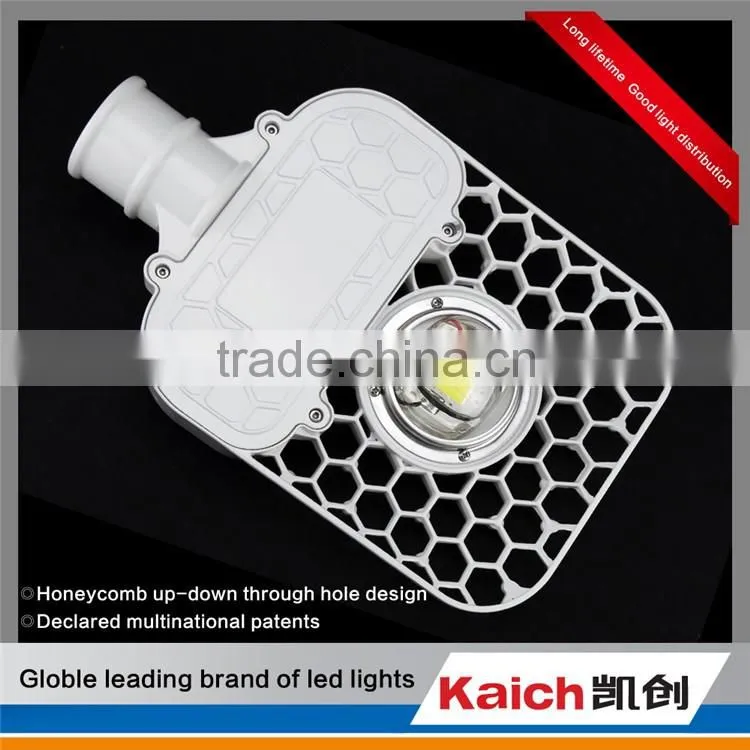

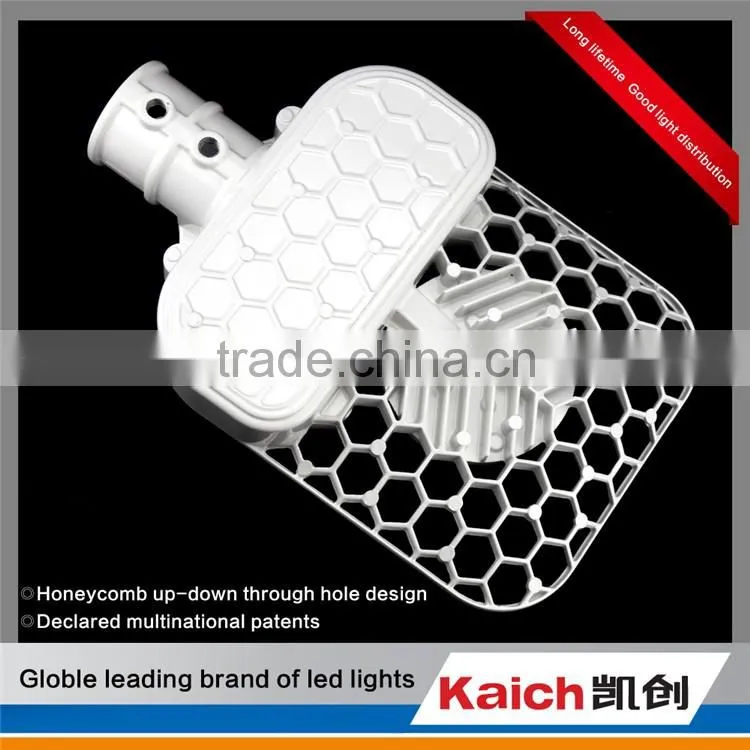

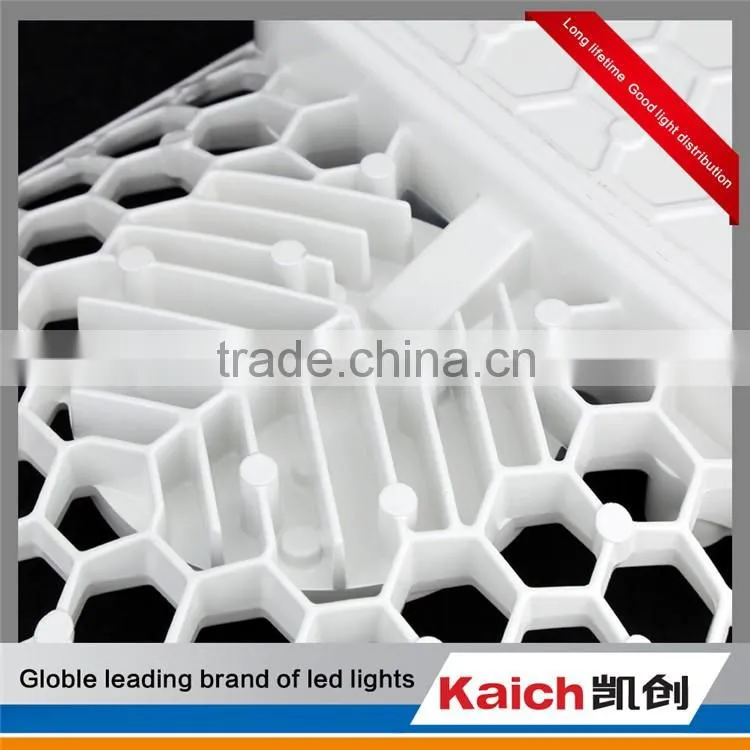

1) Die-casting Alluminium lamp body in honeycomb through-hole structure.

This kind of design could dissipate out the huge amount of heat generated by the light source efficiently.

According to our test taken in factory, the luminous decay of the LED chip is less than 1% after working 8800 hours continuously. So, the life of LED chip could be prolonged to more than 50000 hours for sure.

IP66 which could be applied in all kinds of outdoor application.

Lamp body with driver box, which could be used on any kinds of light pole.

2) COB LED chip--Bridgelux Long serivice life up to more than 50000 hours with high light effect to 120LM/W.

3) MEANWELL driver: quality warranty of 5 years. Best quality constant-current source.

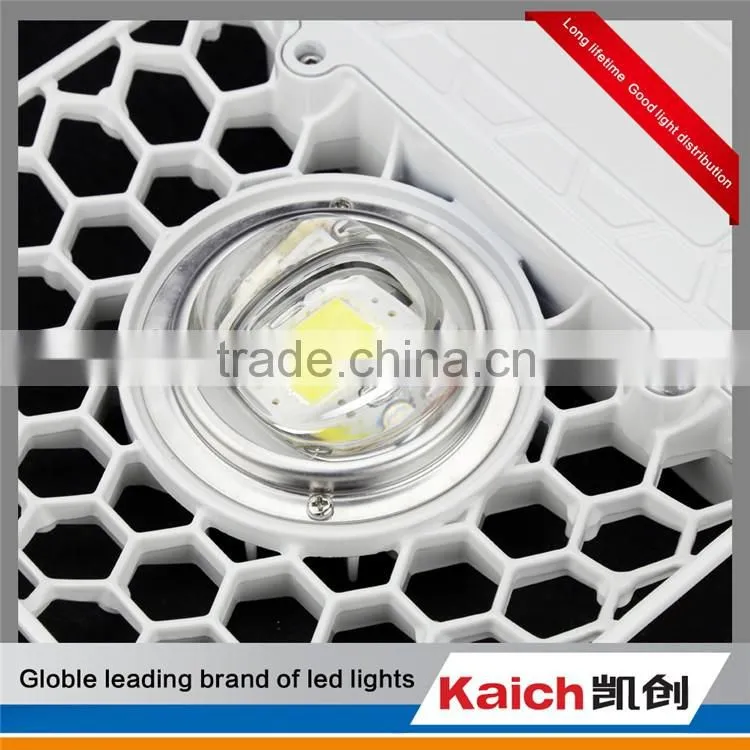

4) Optically designed Glass lens with different angles which could be used in all kinds of road lighting area.

5) Quality warranty: 5 years for the whole set lamp.

CASES:

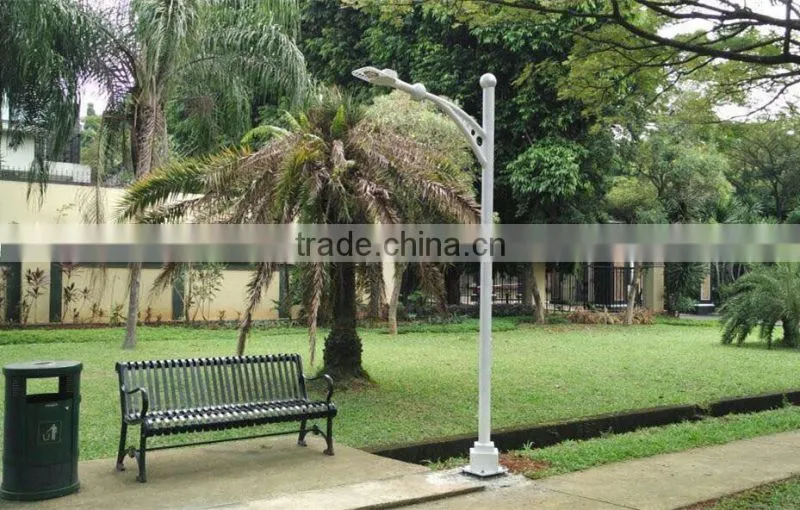

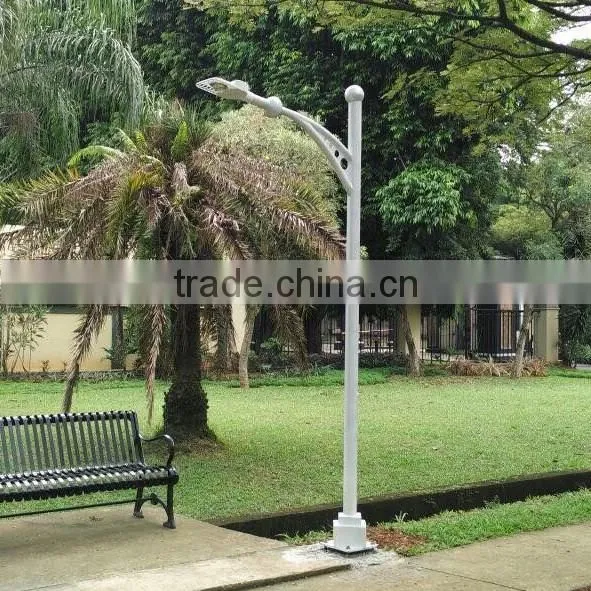

In a park of Indonesia.

Company introduction:

Shandong Kaich Optical & Electronic Technology Co.,Ltd.

We are a LED Outdoor lighting products manufacturer, belongs to the Kaich Group, with registration capital of CNY 10,000,000, has modern factory buildings of 5000 square meters, 6 senior engineers, 80 professional and technical personnel, own a high - power LED light production line, with a large coil bending machine, cutting board machine, large spray paint room, all kinds of specialized testing machinery equipped. We have got the CE certification, and has exported about one million USD in this year.
