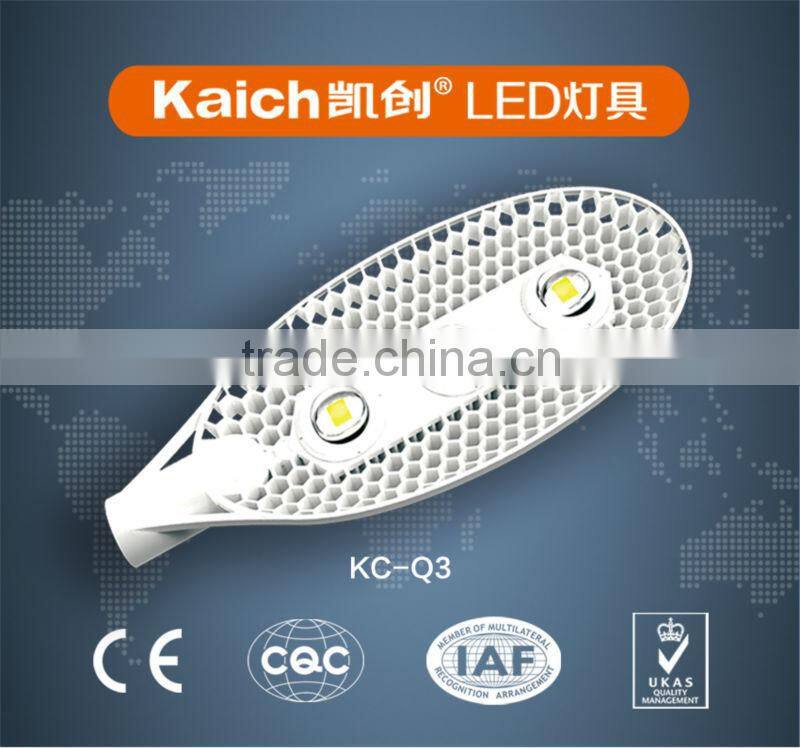

Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting

Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting thumbnail-1
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting thumbnail-2
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting thumbnail-3
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting thumbnail-4
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting thumbnail-5
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting photo-1
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting photo-2
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting photo-3
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting photo-4
Led Street Light 240W Street Light KC-Q3 Replace 400W Sodium Street Lighting photo-5
US$ 135 - 169 MOQ: 3 Pieces
Key Specifications
Get Latest Price
LED Light Source:
integrated optical
Input Voltage(V):
110-220V 12\24V
Lamp Power(W):
240
Contact Supplier Request Quote Chat Now
Shandong Kaich Optical & Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source integrated optical
Input Voltage(V) 110-220V 12\24V
Lamp Power(W) 240
Lamp Luminous Flux(lm) 2640
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Pure White
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CCC, CE, CQC
Warranty(Year) 3
Place of Origin Shandong, China
Brand Name KAICH
Model Number KC-Q3

 LED Street Lamp KC-Q3 240W high power street light

Product Description

China news designed solar power street lighting

Products Description



 Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting





KC-Q3 Lamp Parameters

Model

KC-Q3

Power

consumption

120W

150W

180W

210W

240W

Luminous Flux

10200-13200lm

12750-16500lm

15300-19800lm

17850-23100lm

20400-26400lm

Lamp Body Material

ACD 12 Die-casting aluminum

Lamppost

material

Q235

Lens

High transmittance organosilicon glass lens, TYPE II ,III,IV

Source type

5003 Support integrated light source

LED chips quantity

 3 pcs

Lighting effect

100-120 lm/w

Lumen Maintenance

 > 80%

Input & Voltage

AC90-305V & DC12/24V/24V

Working Lifetime

>50000 hours

Warranty

3 years

Color

temperature

3000-6000K

CRI

Ra>70

Power factor

>0.95

IP rating

IP66

Driver brand:

Meanwell

Driver position

outside

Led chip brand

Cree / Bridgelux

Surface process

Powder coated (white black gray blue yellow light gray )

Angle of light diffusion

160°*80°/170°*60°

Working

temperature

 -40°C~+50°C

Certification

CE ISO CQC Rohs

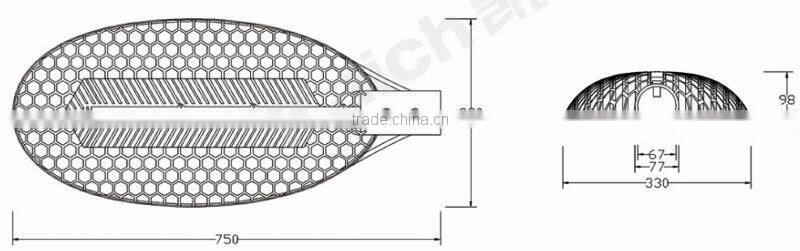

Size

750mm*330mm*92mm

Product net weight

6.3 KG

Qty/ carton box

 2

Weightcarton

13.32 KG

Mounting

Pole  installation

Application

express way,urban arterial road

Installation height

10-12m

package

carton or wooden cases or Customers packing are acceptable

Drive mode

Solar and non-solar



Whole Set Pricing sheet Sample



 Features:

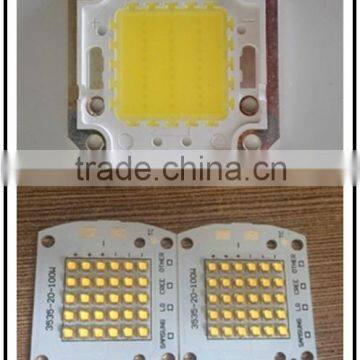

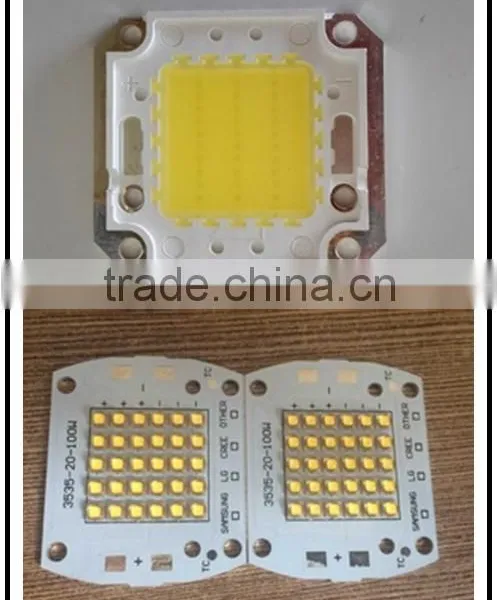

1. We use Bridgelux or Cree chips for all our LED lights. Our light source is integrated low voltage light source with patent honeycomb structured heat sink. Working power is 30w-240w. Main features of our chip is long service life for farly more than 50000hours and low voltage to avoid electric shock.

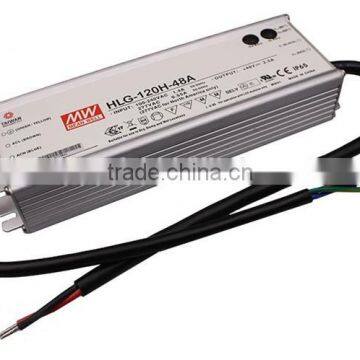

2. We adopt Meanwell driver for our LED outdoor lights with 5 years quality warranty. The output voltage is 36V, which can avoid light flare and electric shock, and the power factor can reach 0.99 to saving energy more efficiently. Meawell driver can be set to adjust output current and lower the power for further energy saving.

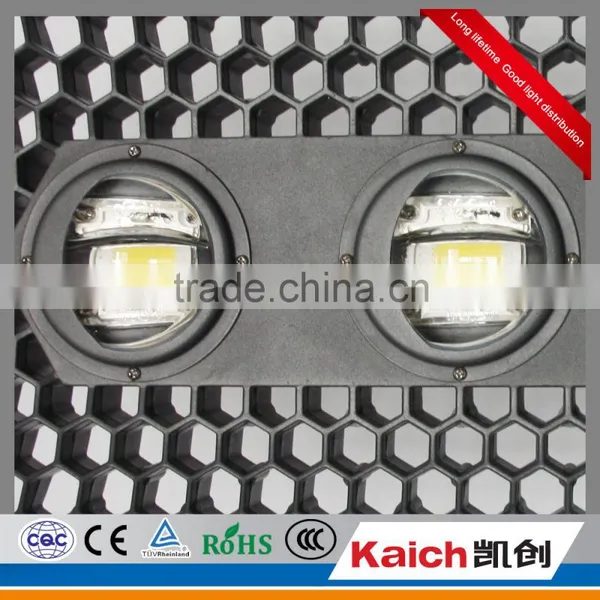

3. We have a independent reach team to design the lense for our LED light. The material of our lense is high borosilicate glass with high light transmittance rate of more than 95%. The design of our lense could make a better control of scatter light and improve the light uniformity and reducing light pollution.

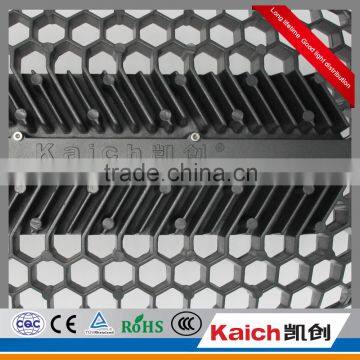

4. Our heat sink system is a patent honeycomb structured lamp shell. Heat dissipation is the main factor to influence the service life of LED chip. Good heat sink is a mark of good quality for any LED light. Our honeycomb structured heat sink could dissipate the sizable amount of heat generated by the light source efficiently. According to our test taken in factory, the luminous decay of the LED chip is less than 1% after working 8800 hours continuously. So, the life of LED chip could be prolonged to more than 50000 hours for sure.



On the other side, this kind of structure can reduce both the weight and cost of light with beautify appearance.

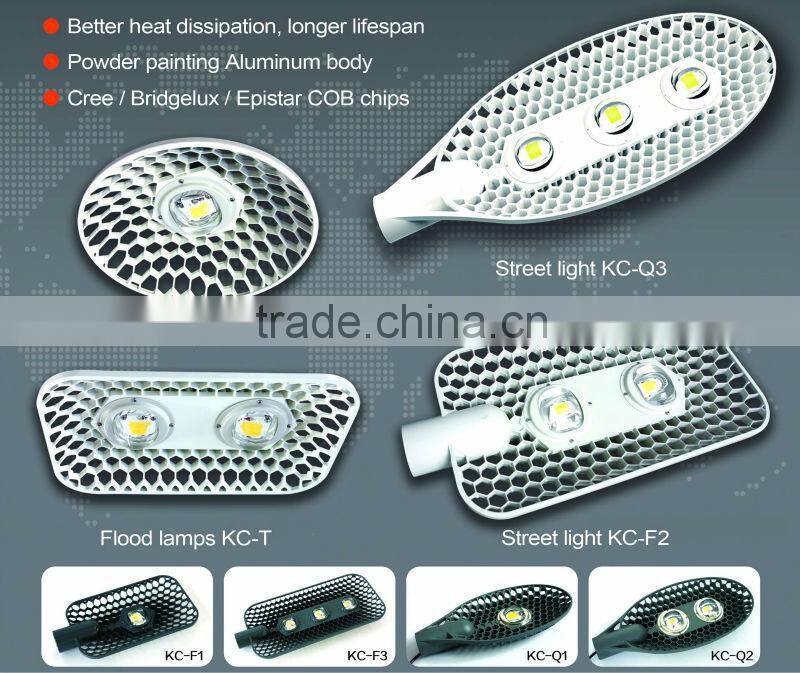

Multiple Design

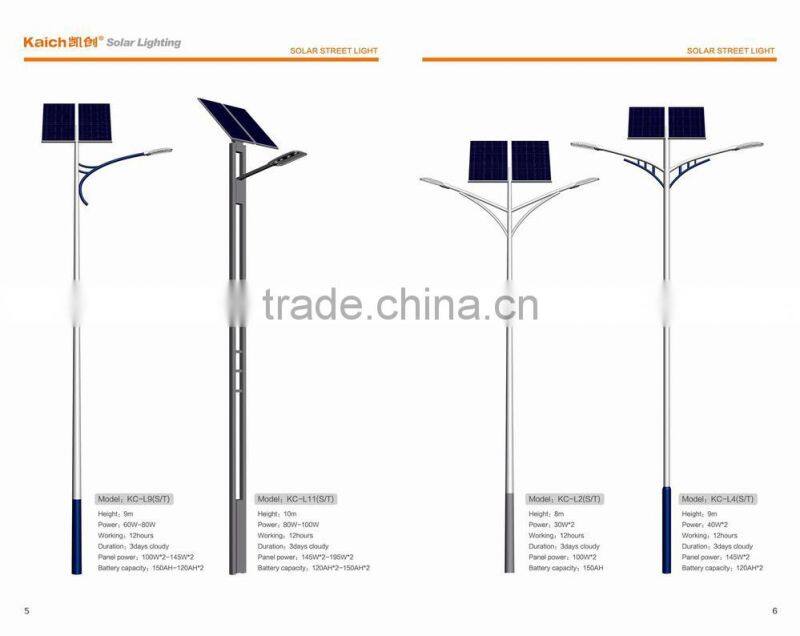

Solar Street Light

Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting

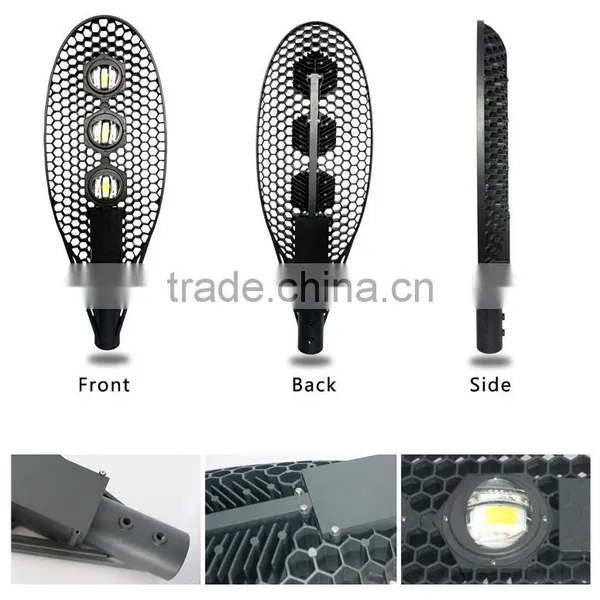

about Q3

Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting

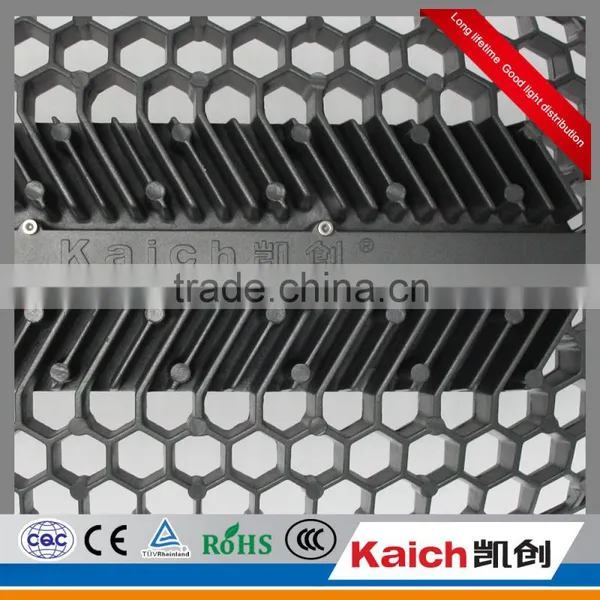

The Unique Heat Dissipation Structure





Application

Workshop ,gas station ,plaza ,tunnel lighting  advertisement ighting village road ,  garden, park , high-speed way, exhibation hall square countryard ,billboard stadium  warehouse and so on.





Packaging & Shipping
  • Carton,plywood case,container
  • Standing export packing
  • Express,LCL. FCL
Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting





Company Information



Company Profile

Kaich group ,with high starting point , high standard, professionalization, high quality products localization, puts the service concept “create value for customers with total satisfaction .move customers with sincerity ,beyond customers expectation” into every service process .Kaich group wins the praise from domestic and foreign clients with first class products and one-top service.

Shandong Kaich Optical & Electronic Technology Co.,Ltd,is the Solar-LED lighting products manufacturer base of Kaich group,with registration capital of CNY 10,000,000,has modern factory building of 5000 square meters,6 senior engineers,more than 50 professional and technical employees,with Marketing business Department,Production&Installation Department,Technology R&D Department,After-sale Service Department and other functional Department.

Kaich is specialized in designing and manufacturing Solar-Led lighting and related products,leads the Chinese solar LED Street Lamp Lighting Industry.

Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting

Products Range(Led street light,flood light,garden light and solar light)

Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting



Prodcution  workshops

Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting





Quality Control

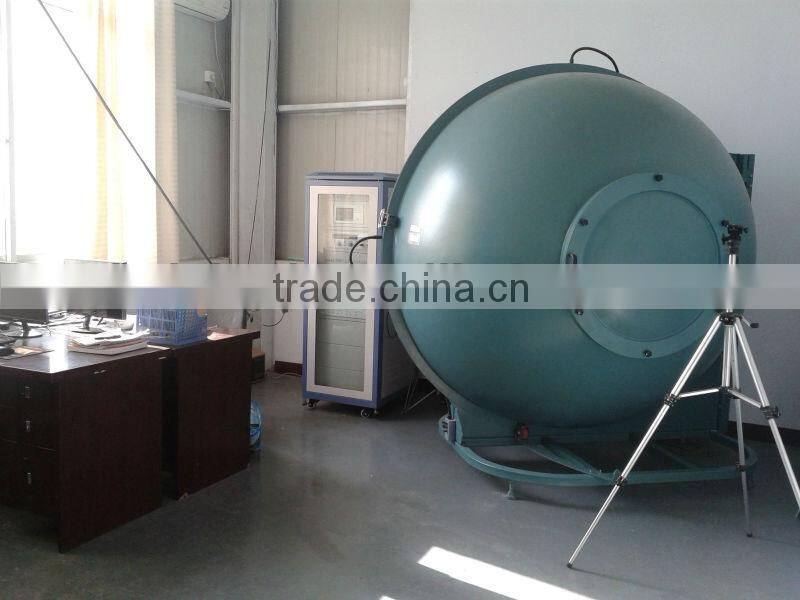

Lemen Test



Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting

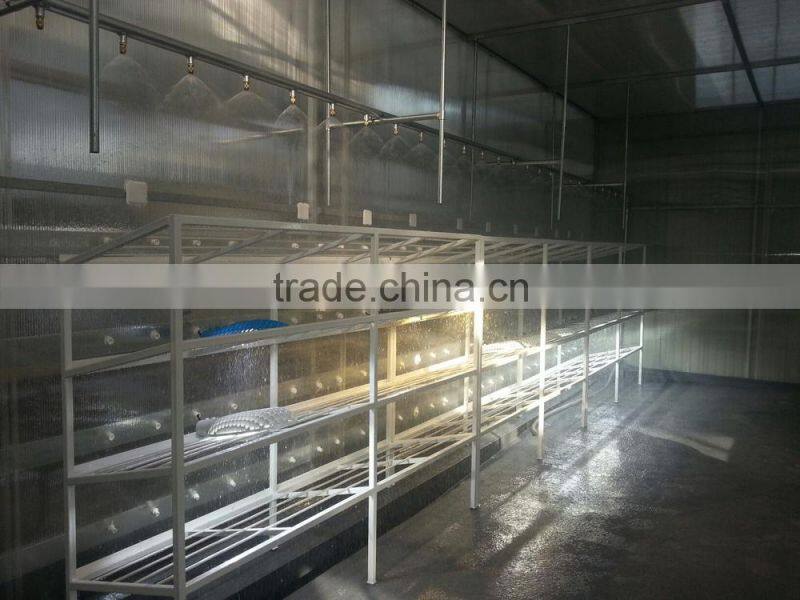

Waterproof Test

Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting





Our Services

1. All of your questions and suggestions  related to  us or our products, we will reply you within 24 hours.

2. Well-trained and passional sales & after- sale services.

3. We offer customize services. Can print your own logo on product , can customize the retail box packing and other things.

4. Shipping port: Qingdao, China mainland.

5. EXAMPLES are prepared.Discouts are offered based on order quantities.

FAQ

Q: What are the advantages of solar led street light?



A:   LED light source ten characteristics : 1. Small lamp body          2. Low energy consumption

3. Strong and durable       4. Long service life      5. Safe low voltage     6. Wide range of application

7. More colorful            8. Less heat dissipation      9.  Environmental protection      10. Less cost.





Q: Is there cheap shipping cost to import to our country?



A: For small order, express will be the best. And for bulk order, sea ship way will be better ,

but take much time.

For urgent orders, we suggest via air to airport plus our ship partner send to your place.

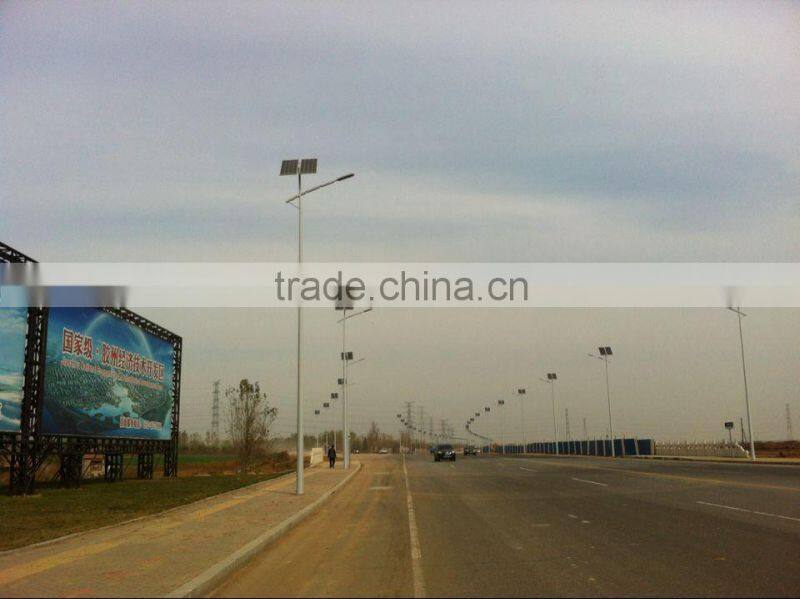

Our cases

 Africa and other projects

Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting

 Led Street Light 240W Street light KC-Q3 Replace 400W Sodium Street Lighting
