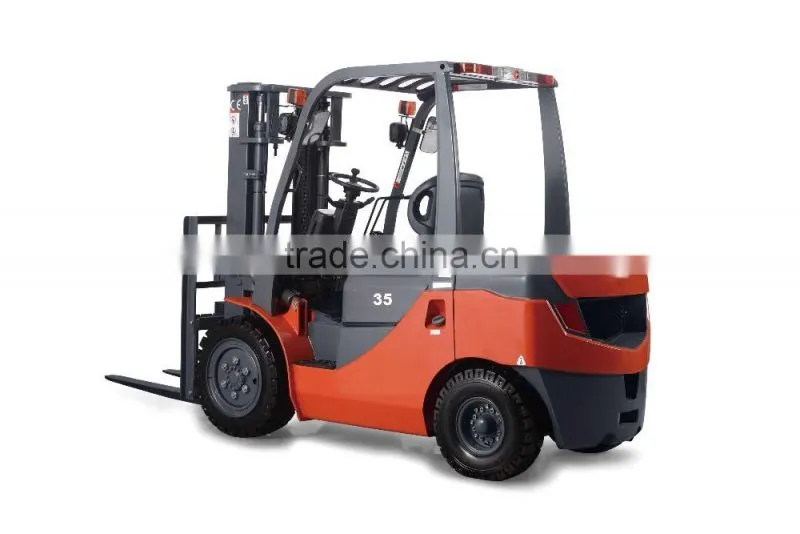

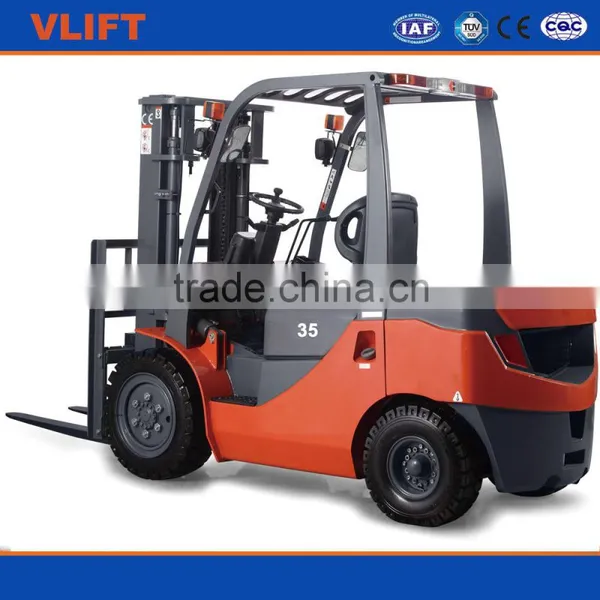

Hydraulic Diesel Forklift Truck 3.5ton (red Colour)for Sale
US$ 7,800 - 9,800
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
VLIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao Ningbo port for forklift
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
4 Ton Diesel Manual Forklift Truck For SaleUS$ 8,700 - 8,900MOQ: 1 Piece -
4.5ton China Diesel Forklift Truck for SaleUS$ 15,200 - 15,300MOQ: 1 Piece
-
Diesel Forklift 4.5Ton With Japan Mitsubishi EngineUS$ 16,500 - 16,800MOQ: 1 Set
-
Japan Isusu Engine 7ton Diesel ForkliftUS$ 8,800 - 10,900MOQ: 1 Piece
-
8Ton Diesel Forklift Truck Japan Isuzu EngineUS$ 15,000 - 20,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
VLIFT
Model Number
CPCD35
Type
Other, forklift
Power Souce
Diesel Engine
Rated Loading Capacity
3500kg
Max. Lifting Height
3000mm
Min. Lifting Height
2115mm
Fork Length
1070mm
Fork Width
125mm
Overall Dimensions
2770*1225*2115mm
Certification
CE ISO SGS
After-sales Service Provided
Engineers available to service machinery overseas
3.5ton China hydraulic diesel forklift truck
| CPCD35 DIESEL FORKLIFT SPECIFICATION | |||||
| General | 1 | Model | CPCD35 | ||
| 2 | Power Type | Diesel | |||
| 3 | Rated Capacity | kg | 3500 | ||
| 4 | Load Centre | mm | 500 | ||
| Characteristic&Dimension | 5 | Lift Height | mm | 3000 | |
| 6 | Fork Size (L×W×T) | mm | 1070×125×50 | ||
| 7 | Mast Tilt Angle (F/R) | Deg | 6°/12° | ||
| 8 | Front Overhang (Wheel center to fork face) | mm | 480 | ||
| 9 | Ground Clearance(Bottom of mast) | mm | 135 | ||
| 10 | Length to face of fork(Without fork) | mm | 2770 | ||
| 11 | Overall Width | mm | 1225 | ||
| 14 | Overhead Guard Height | mm | 2115 | ||
| 15 | Turning Radius (outside) | mm | 2480 | ||
| Performance | 16 | Travel Speed (No load) | km/h | 19 | |
| 17 | Lifting Speed (Full load) | mm/s | 420 | ||
| 18 | Max.Gradeability (No load/Full load) | % | 20 | ||
| Chassis | 19 | Front Tire | mm | 28×9-15-12PR | |
| 20 | Rear Tire | mm | 6.50-10-10PR | ||
| 21 | Wheelbase | mm | 1700 | ||
| Power&Transmission | 23 | Battery Voltage/Capacity | V/Ah | 12/80 | |
| 24 | Engine Model | 4TNE98 | |||
| 25 | Manufacture | YANMAR | |||
| 26 | Rated output/r.p.m. | kw | 42.1/2300 | ||
| 27 | Rated torque/r.p.m. | N·m | 187-207/1700 | ||
| 28 | No.of Cylinder | 4 | |||
| 29 | Bore×Stroke | mm | 98×110 | ||
| 30 | Displacement | cc | 3331 | ||
| 31 | Fuel Tank Capacity | L | 60 | ||
| 32 | Transmission Type | Hydraulic | |||
| 33 | Stage (FWD/RVS) | 1/1 | |||

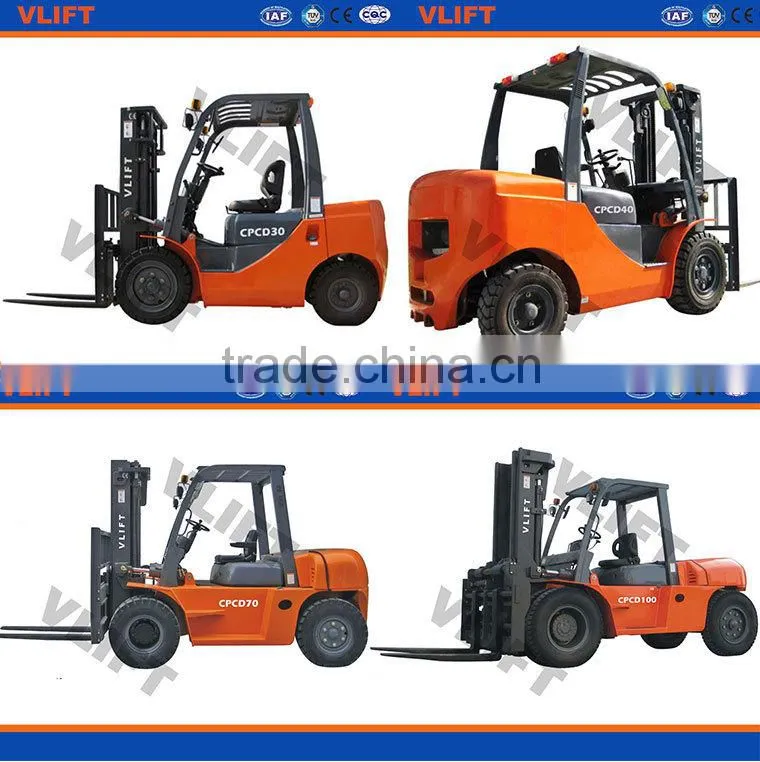

We have 2ton to 16ton diesel forklifts at different loading capacities.

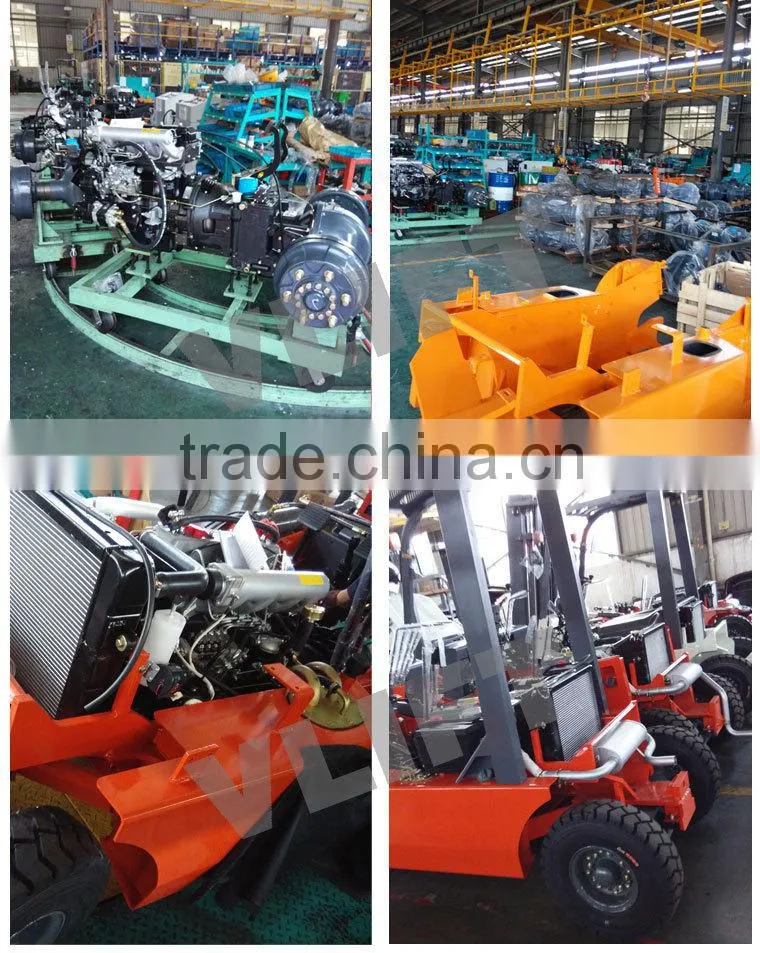

Japan Isuzu Engine 3.0 ton diesel forklift Before Assembly
Japan Isuzu Engine 3.0 ton diesel forklift Assembly Workshop
Japan Isuzu Engine 3.0 ton diesel forklift Finished Production
