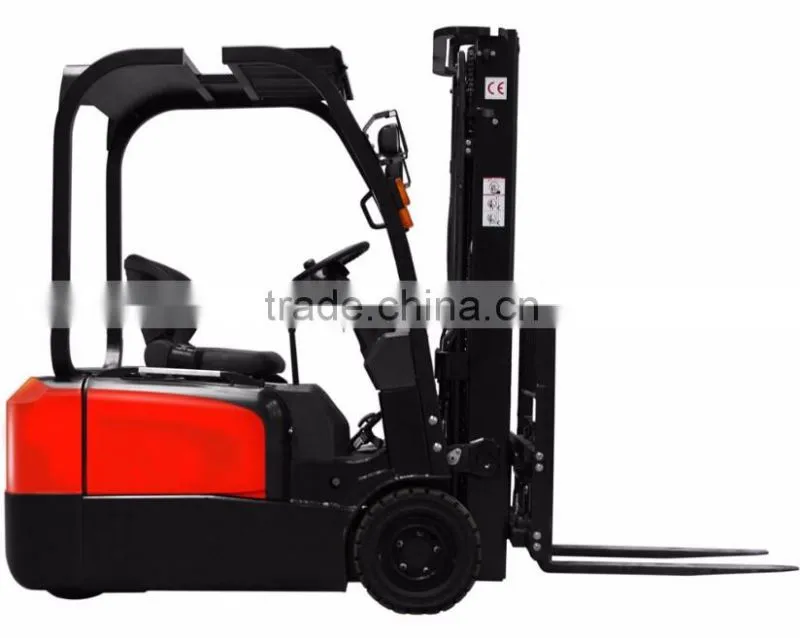

Help Center2 Ton Three Wheel Full Electric Forklift With Charger With Battery
Related Products
-
1.5 Ton Electric Forklift Trucks With Side Shift With Charger With BatteryUS$ 8,900 - 9,100MOQ: 1 Set -
500kg Electric Forklift With 3 Wheel for Multistory and Ultra Small SpaceUS$ 6,500 - 6,800MOQ: 1 Set
-
1ton Electric Forklift Truck for SaleUS$ 8,800 - 9,000MOQ: 1 Unit
-
1.5ton Electric Forklift Truck for SaleUS$ 8,800 - 9,000MOQ: 1 Unit
-
2ton Electric Forklift Truck for SaleUS$ 9,000 - 12,000MOQ: 1 Unit
| 2 ton three wheel full electric forklift with charger with battery | |||
| 1 | Model designation | CPCB20T | |
| 2 | Drive unit | Battery | |
| 3 | Operator type | Rider seated | |
| 4 | Load capacity | Q (kg) | 2000 |
| 5 | Load center | c (mm) | 500 |
| 6 | Wheelbase | x (mm) | 1468 |
| 7 | Load distance | y (mm) | 397.5 |
| Weights | |||
| 8 | Service weight (Incl. battery) | kg | 3380 |
| 9 | Axle loading, loaded front/ rear | kg | 5050/380 |
| 10 | Axle loading, unloaded front/ rear | kg | 1750/1680 |
| Wheels, Chassis | |||
| 11 | Tyre type | solid rubber | |
| 12 | Tyre size, operator side | 200x50-10 | |
| 13 | Tyre size, load side | 15x4.5-8 | |
| 14 | Wheels, number front/ rear (x=drive wheels) | 2x/2 | |
| 15 | Tread, Driving Wheel | b10 (mm) | 902 |
| 16 | Tread, Steering Wheel | b11 (mm) | 175 |
| Dimensions | |||
| 17 | Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 6°/ 6.5° |
| 18 | Height, mast lowered | h1 (mm) | 2060 |
| 19 | Free lift | h2 (mm) | 120 |
| 20 | Lift height | h3 (mm) | 3000 |
| 21 | Height, mast extended | h4 (mm) | 4011 |
| 22 | Height of overhead guard (cabin) | h6 (mm) | 2060 |
| 23 | Seat height | h7 (mm) | 920 |
| 24 | Tow coupling height | h10 (mm) | 475 |
| 25 | Overall length | l1 (mm) | 2975 |
| 26 | Length to face of forks | l2 (mm) | 2055 |
| 27 | Overall width | b1/ b2 (mm) | 1150 |
| 28 | Fork dimensions | s/ e/ l (mm) | 920×100×40 |
| 29 | Fork carriage type | 2A | |
| 30 | Fork carriage width | b3 (mm) | 1040 |
| 31 | Ground clearance, loaded, below mast | m1 (mm) | 108 |
| 32 | Ground clearance, center of wheelbase | m2 (mm) | 78 |
| 33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 3400 |
| 34 | Aisle width, 800×1200 pallet crossways | Ast (mm) | 3526 |
| 35 | Outer turning radius | Wa (mm) | 1680 |
| Performance | |||
| 36 | Travel speed, loaded/ unloaded | km/ h | 13/14 |
| 37 | Lifting speed, loaded/ unloaded | m/ s | 0.26/0.43 |
| 38 | Reach speed,loaded/ unloaded | m/ s | 0.44/0.435 |
| 39 | Gradeability(loaded/unloaded) | % | 10.5/14.5 |
| 40 | Service brake | Hydraulic+Electeomagnetic | |
| Drive | |||
| 41 | Drive motor rating S2 60 min. | kW | 4.5x2 |
| 42 | Lift motor rating at S3 15% | kW | 11 |
| 43 | Battery voltage/ rated capacity | V/ Ah | 48/500 |
| 44 | Battery weight | kg | 856 |
| Others | |||
| 45 | Type of drive control | AC | |
| 46 | Sound level at operator's ear | dB (A) | 74 |
Export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
