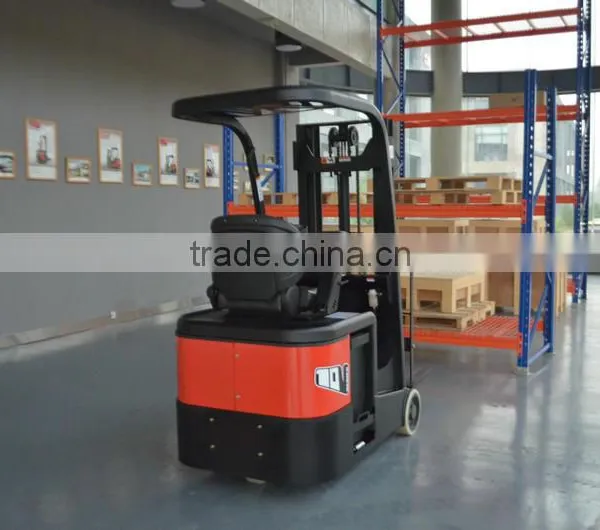

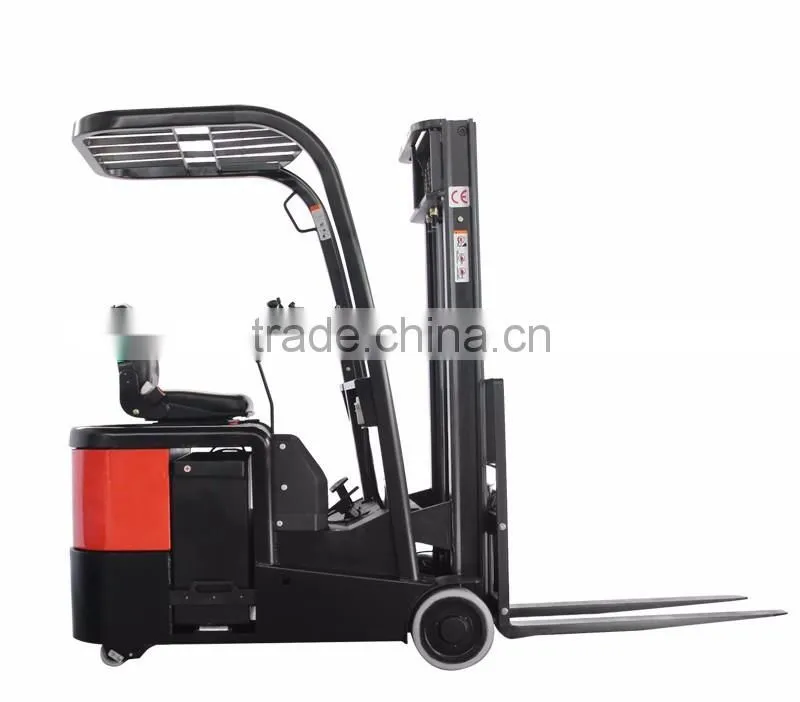

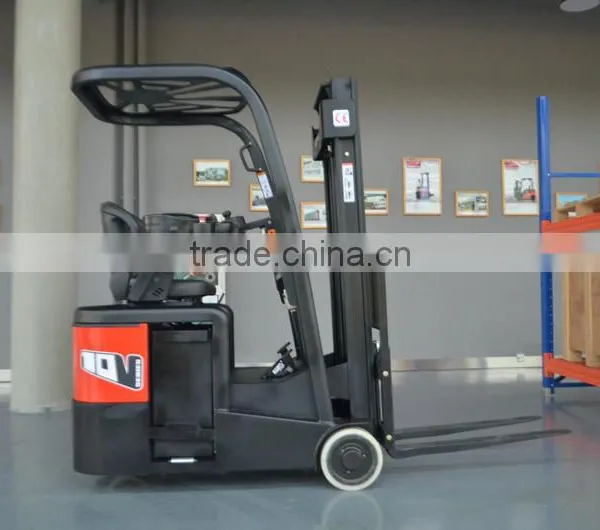

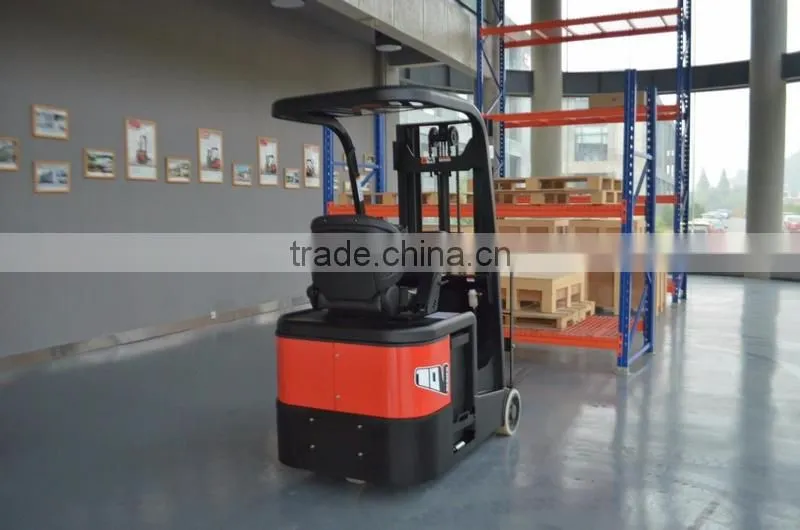

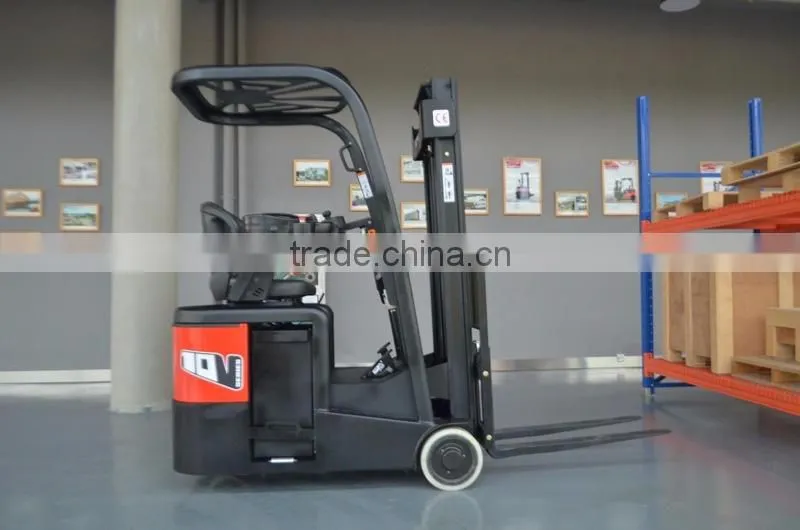

500kg electric forklift with 3 wheel for multistory and ultra small space
1.Maintenance-free AC motor;
2.Smart meters, displays battery usage time, error codes and other system information;
3.Electronic steering, handling lighter;
4.Imports AMP connector waterproof and dustproof;
5.Integrated standard mailbox, motors, pumps;
6.Regenerative braking, anti-skid ramp to ensure safe driving;
7.Lifting overload protection, hydraulic systems explosion-proof design;
8.Low voltage automatic protection, extended battery life;
9.The controller self-diagnosis system;
| 500kg electric forklift with 3 wheel | |||
| Characteristics | |||
| 1 | Model designation | CPCB05 | |
| 2 | Drive unit | Battery | |
| 3 | Operator type | Rider seated | |
| 4 | Load capacity | Q (kg) | 500 |
| 5 | Load center | c (mm) | 400 |
| 6 | Wheelbase | x (mm) | 225 |
| 7 | Load distance | y (mm) | 182.5 |
| Weights | |||
| 8 | Service weight (Incl. battery) | kg | 1195 |
| 9 | Axle loading, loaded front/ rear | kg | 1420/275 |
| 10 | Axle loading, unloaded front/ rear | kg | 565/630 |
| Wheels, Chassis | |||
| 11 | Tyre type | PU | |
| 12 | Tyre size, operator side | 230/75 | |
| 13 | Tyre size, load side | 230/75 | |
| 14 | Wheels, number front/ rear (x=drive wheels) | 2/1 | |
| 15 | Tread, front | b10 (mm) | 830 |
| Dimensions | |||
| 16 | Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 2°/2° |
| 17 | Height, mast lowered | h1 (mm) | 2060 |
| 18 | Lift height | h3 (mm) | 3000 |
| 19 | Height, mast extended | h4 (mm) | 3860 |
| 20 | Height of overhead guard (cabin) | h6 (mm) | 1980 |
| 21 | Seat height | h7 (mm) | 975 |
| 22 | Overall length | l1 (mm) | 2350 |
| 23 | Length to face of forks | l2 (mm) | 1430 |
| 24 | Overall width | b1/ b2 (mm) | 944 |
| 25 | Fork dimensions | s/ e/ l (mm) | 920×100×40 |
| 26 | Fork carriage type | 2A | |
| 27 | Fork carriage width | b3 (mm) | 720 |
| 28 | Ground clearance, loaded, below mast | m1 (mm) | 90 |
| 29 | Ground clearance, center of wheelbase | m2 (mm) | 95 |
| 30 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2830 |
| 31 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2945 |
| 32 | Outer turning radius | Wa (mm) | 1300 |
| Performance | |||
| 33 | Travel speed, loaded/ unloaded | km/ h | 6/8 |
| 34 | Lifting speed, loaded/ unloaded | m/ s | 0.13/0.2 |
| 35 | Reach speed,loaded/ unloaded | m/ s | 0.14/0.125 |
| 36 | Gradeability(loaded/unloaded) | % | 6/8 |
| 37 | Service brake | Hydraulic/mechanical | |
| Drive | |||
| 38 | Drive motor rating S2 60 min. | kW | 1.5 |
| 39 | Lift motor rating at S3 15% | kW | 2.2 |
| 40 | Battery voltage/ rated capacity | V/ Ah | 24/ 210 |
| 41 | Battery weight | kg | 210 |
| Others | |||
| 42 | Type of drive control | AC | |
| 43 | Sound level at operator's ear | dB (A) | 70 |
