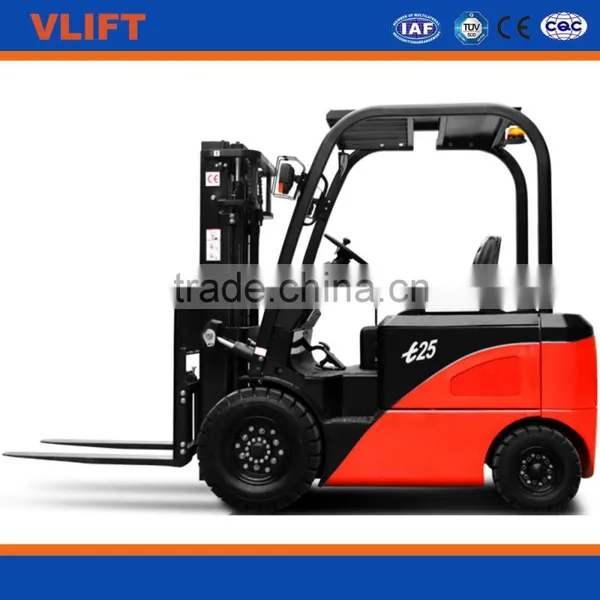

2.5 Ton Four Wheel Electric Forklift Brand Near TOYOTA
US$ 12,300 - 12,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
VLIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.5 Ton Three Wheel Electric ForkliftUS$ 10,000 - 10,200MOQ: 1 Set -
Electric Forklift Truck 3 Ton TCM QualityUS$ 13,300 - 13,500MOQ: 1 Set
-
3 Ton Full Electric Forklift Truck Lifting Height 4mUS$ 13,800 - 14,300MOQ: 1 Set
-
3 Ton Electric Battery Forklift Truck Lifting Height 4m With Full Free MastUS$ 14,400 - 14,800MOQ: 1 Set
-
3 Ton ElectricBattery Forklift Truck Lifting Height 4.5m With Low PriceUS$ 13,900 - 14,300MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
VLIFT
Model Number
CPCD25 electric forklift
Type
Other, electric forklift
Power Souce
AC Motor
Rated Loading Capacity
2500kg
Max. Lifting Height
4030mm
Min. Lifting Height
1995mm
Fork Length
1070mm
Fork Width
122mm
Overall Dimensions
2285*1150*1995mm(L*W*H)
Certification
ISO Certificate
After-sales Service Provided
Engineers available to service machinery overseas

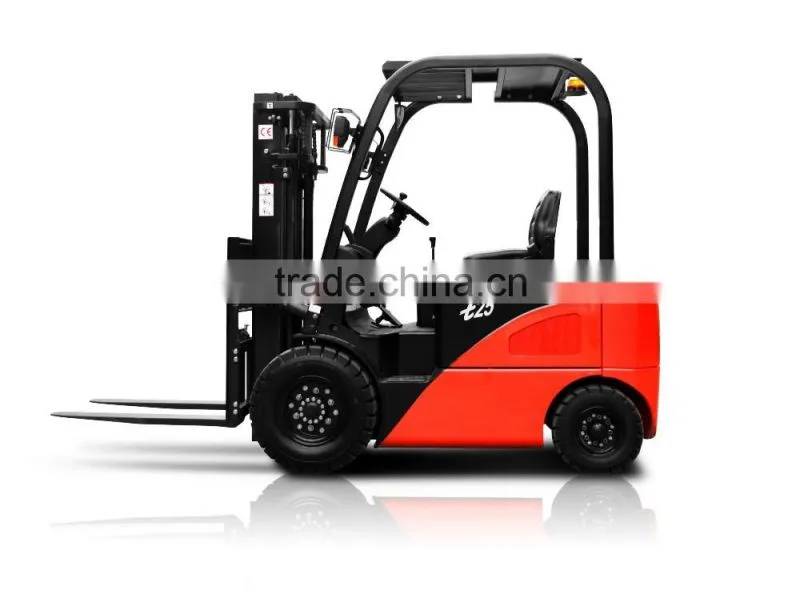

2.5 Ton Four wheel Electric forklift Brand Near TOYOTA
Product Description
| CPCB25 TECHNOLOGY SPECIFICATION | ||||
| 1 | Manufacturer | VLIFT | ||
| 2 | Model | CPCB25 | ||
| 3 | Load capacity | kg | 2500 | |
| 4 | Load center | mm | 500 | |
| 5 | Power unit | Battery | ||
| 6 | Operator type | Driver/seat | ||
| 7 | Tire type | Pneumatic | ||
| 8 | Wheel(x=driving) | Front/rear | 2X/2 | |
| 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 160 | |
| 11 | Fork size | L*W*T | mm | 1070*122*40 |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 |
| 13 | Overall length(without fork) | mm | 2285 | |
| 14 | Total width | mm | 1150 | |
| 15 | Mast height (fork lowering) | mm | 1995 | |
| 16 | Overall height fork raised | With backrest | mm | 4030 |
| 17 | Height to head guard | mm | 2145 | |
| 18 | Turning raduis(outside) | mm | 2000 | |
| 19 | Load distance | mm | 445 | |
| 20 | Min. right angle stacking aisle | not add load length&clearence | mm | 2445 |
| 21 | Speed | Max Travelling full load | km/h | 13.5 |
| Max Travelling no load | km/h | 14.5 | ||
| Lifting full load | mm/s | 240 | ||
| Lifting no load | mm/s | 450 | ||
| 22 | Gradeability | full load | % | 12.5 |
| 23 | Truck weight(with standard battery) | kg | 3820 | |
| 24 | Weight distribution | Full load front/rear | kg | 5425/895 |
| 25 | No load front/rear | kg | 1425/2395 | |
| 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 21*8-9-16PR | |
| 31 | rear axle | 18*7-8-14PR | ||
| 32 | Wheelbase | mm | 1400 | |
| 33 | Tread | Front/rear | mm | 955/950 |
| 34 | Ground clearence | At lowest point(mast) | mm | 110 |
| Frame | mm | 115 | ||
| 35 | Brake | Service brake | Hydraulic-foot pedal | |
| Parking brak | Mechanical-hand lever | |||
| 36 | Battery | Voltage/capacity | V/AH/5hr | 48V-450 |
| 37 | Weight with box (standard) | kg | 825 | |
| 38 | Electric motor | AC Driving motor | kw | 11 |
| 39 | DC Hydraulic driving motor | kw | 8.6 | |
| 40 | AC Hydraulic driving motor (as option) | kw | 13 | |
| 41 | Control type | Driving AC , lifting AC | ||
| 42 | Operating pressure | kg/cm² | 175 | |

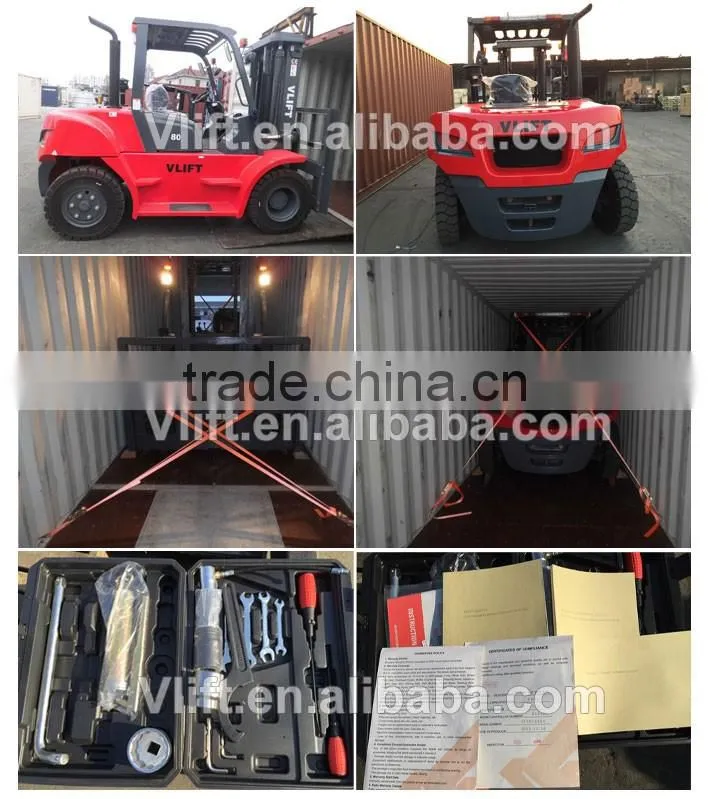

Packaging & Shipping
Vlift forklift export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
Certifications
Our Factory Show
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
