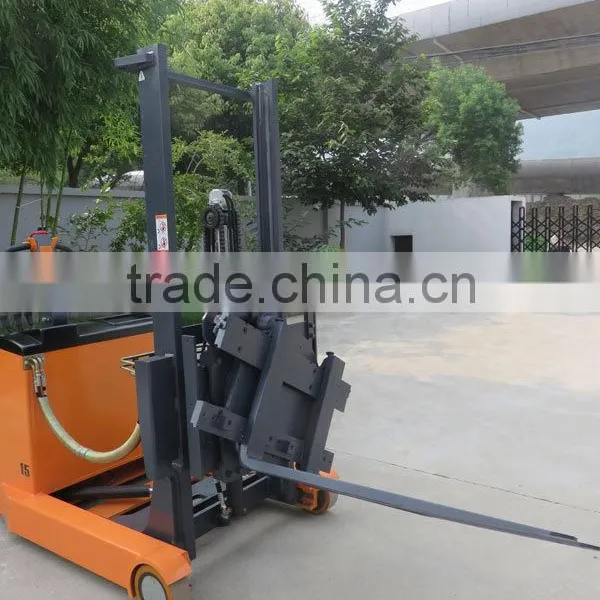

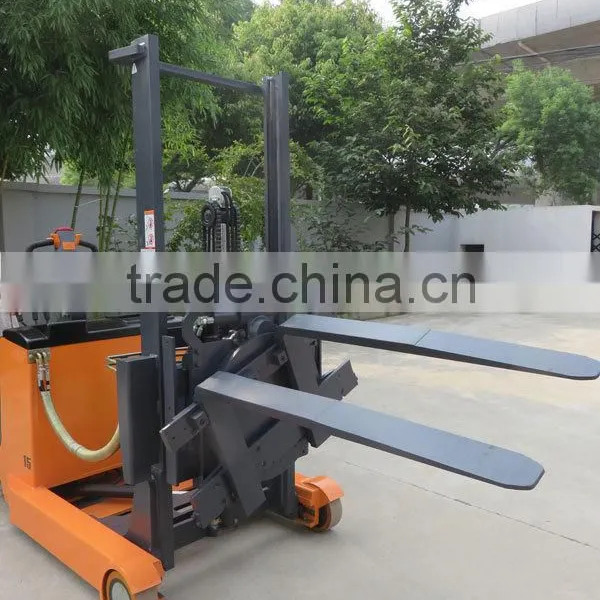

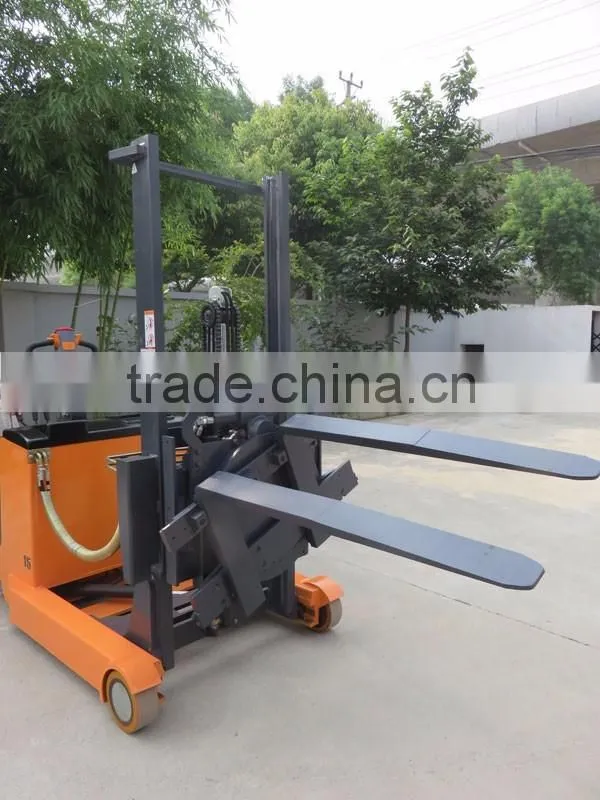

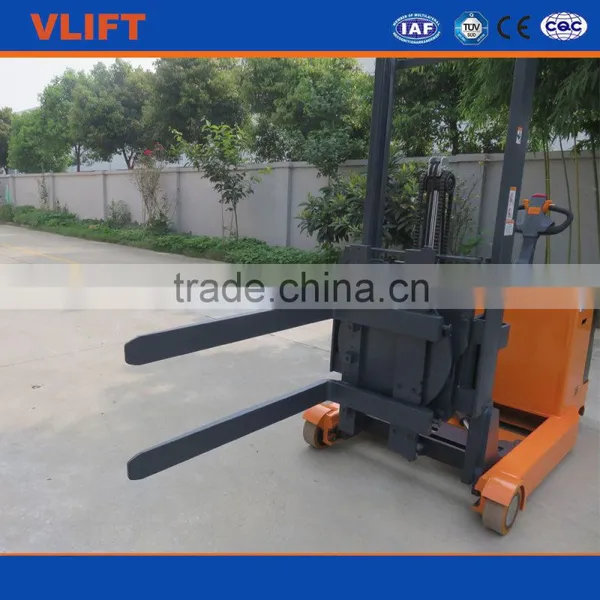

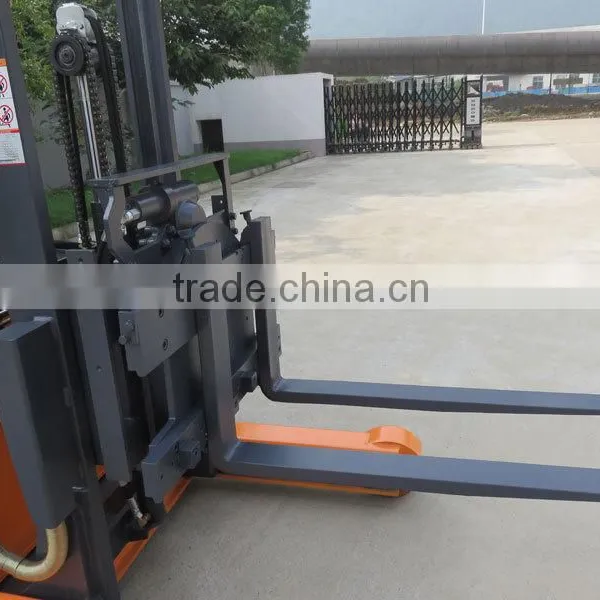

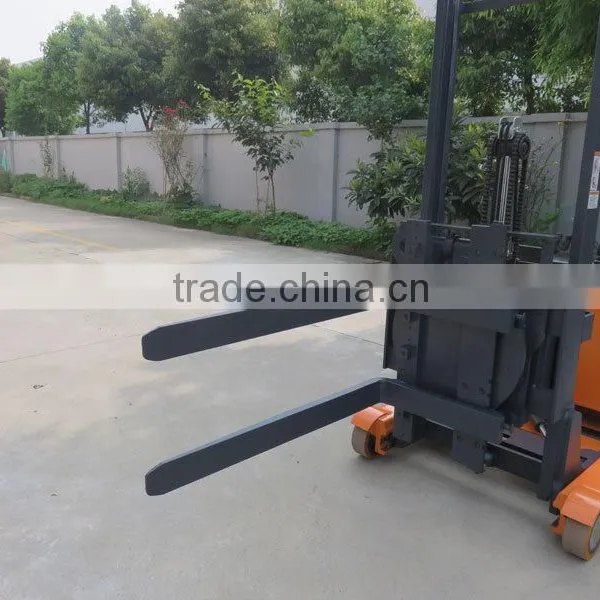

1.5 ton electric reach stacker with ratator with 3 stage 4.5 m full free mast
| Identification | Product model | VS15-15S | |
| Load capacity | Q kg | 1500 | |
| Load center | C mm | 500 | |
| Front overhang | X mm | 446 | |
| Wheelbase | Y mm | 1440* | |
| Weight (without battery) | kg | 1700* | |
| Dimension | Height with mast closed | h1 mm | 2066 |
| Free lift | h2 mm | 1125 | |
| Lifting height | h3 mm | 4500 | |
| Height with mast extended | h4 mm | 6441 | |
| Height of handle in drive position (Max/Min) | h6 mm | 1380/1020 | |
| Overall length | L1 mm | 2325* | |
| Overall width | b1 mm | 1090 | |
| Fork dimensions (Forging) | s/e/l mm | 100/35/1070 | |
| Fork width | b3 mm | 200-730 | |
| Reach distance | L3 mm | 580 | |
| Min ground clearance | m mm | 55 | |
| Aisle width for pallets 1000x1200 ( fork along side1000) | Ast mm | 2742 | |
| Aisle width for pallets 800x1200 (fork along side 1200) | 2780 | ||
| Turning radius | Wa mm | 1725 | |
| Fork tilting degree (forward/backward) | a/b ° | 3/5 | |
| Performance | Travel speed loaded/unloaded | km/h | 4.8/5.6 |
| Lift speed loaded/unloaded | m/s | 90/120 | |
| Lowering speed loaded/unloaded | m/s | 125/80 | |
| Max gradeability loaded/unloaded | % | 5/8 | |
| Motor | Drive motor rating | kw | AC 1.5 |
| Lift motor rating | kw | 3 | |
| Battery voltage / nominal capacity | V/Ah | 24/240(Standard),280 | |
| Battery weight | kg | 240(Standard),262 | |
| others | Type of drive control | MOSFET | |
| Type of steering | mechanical |
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
