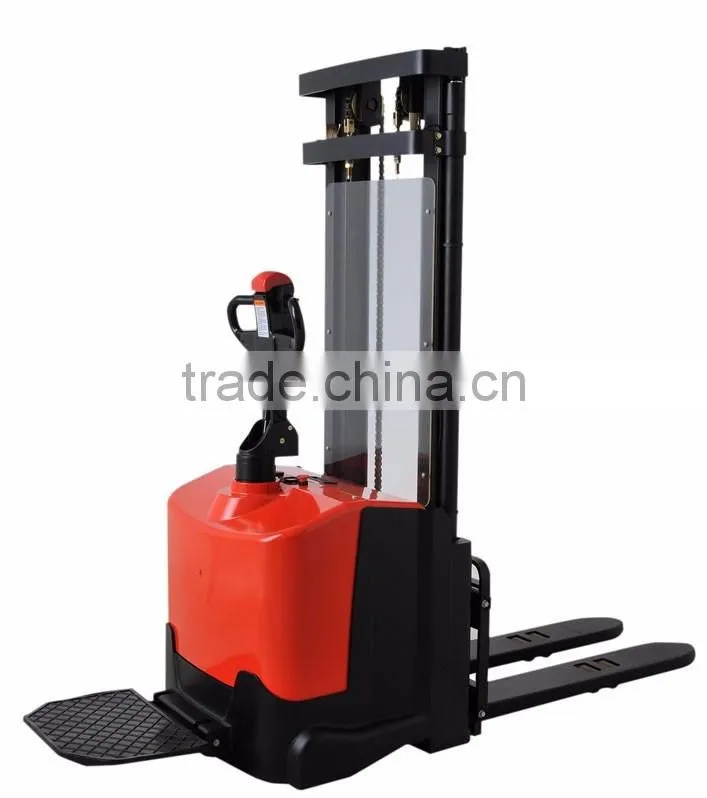

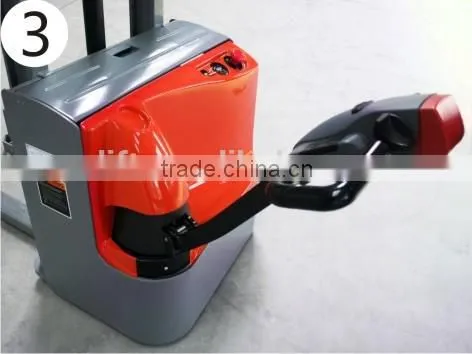

Full Electric Stacker 1.5 Ton Lift Height 4M
| Characteristics For Electric Stacker VS15-RS | |||
| 1.1 | Manufacturer | VLIFT | |
| 1.2 | Model designation | VS15-RS | |
| 1.3 | Drive unit | Battery | |
| 1.4 | Operator type | Rider stand | |
| 1.5 | Load capacity | Q (kg) | 1500 |
| 1.6 | Load center | c (mm) | 600 |
| 1.8 | Load distance | x (mm) | 690 |
| 1.9 | Wheelbase | y (mm) | 1245 |
| Weights | |||
| 2.1 | Service weight (Incl. battery) | kg | 985 |
| 2.2 | Axle loading, laden operator/load side | kg | 1642/ 843 |
| 2.3 | Axle loading, unladen operator/load side | kg | 676/ 309 |
| Wheels, Chassis | |||
| 3.1 | Tyre type | PU/ PU | |
| 3.2 | Tyre size, operator side | mm | 230x75 |
| 3.3 | Tyre size, load side | mm | 85x70 |
| 3.4 | Balance wheels (dimensions) | 130x60 | |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x+ 2/ 4 | |
| 3.6 | Tread, operator side | b10 (mm) | 533 |
| 3.7 | Tread, load side | b11 (mm) | 380 |
| Dimensions | |||
| 4.2 | Height, mast lowered | h1 (mm) | 1962 |
| 4.3 | Free lift | h2 (mm) | 100 |
| 4.4 | Lift height | h3 (mm) | 4200 |
| 4.5 | Height, mast extended | h4 (mm) | 3400 |
| 4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 1150/ 1480 |
| 4.15 | Fork height, lowered | h13 (mm) | 88 |
| 4.19 | Overall length | l1 (mm) | 1975/ 2405 |
| 4.20 | Length to face of forks | l2 (mm) | 560 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 60/ 190/ 1150 |
| 4.25 | Outside fork width, minimum/ maximum | b5 (mm) | 630 |
| 4.32 | Ground clearance | m2 (mm) | 28 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2375 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2310 |
| 4.35 | Outer turning radius | Wa (mm) | 1460 |
| Performance | |||
| 5.1 | Travel speed, laden/ unladen | km/ h | 5.5/ 6.0 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.14/ 0.22 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.18/ 0.2 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 8/ 16 |
| 5.10 | Service brake | Electromagnetic | |
| Drive | |||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.5 |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 160 |
| 6.5 | Battery weight (with box) | kg | 165 |
| Battery compartment dimensions l/ w/ h | mm | 750/ 525/ 175 | |
| Battery type | Industry battery | ||
| Others | |||
| 8.1 | Type of drive control | AC | |
| Manufacturer | CURTIS | ||
| 8.4 | Sound level at operator's ear | dB (A) | 74 |
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
