China Fiberglass Reinforced PPR Pipe Making Machine /PPR GF PPR Pipe Extrusion Machine/Production Line Maker
US$ 40,000 - 190,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Other, Energy Supply Pipe
Plastic Processed:
Other, Glassfiber PPR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Anti-UV PPR Pipe Extrusion Line PPR Pipe With Anti-UV LayerUS$ 50,000 - 100,000MOQ: 1 Set -
Anti-UV PPR Pipe Production Line PPR Pipe With Anti-UV LayerUS$ 50,000 - 100,000MOQ: 1 Set
-
Anti-UV PPR Pipe Production Machine PPR Pipe With Anti-UV LayerUS$ 50,000 - 100,000MOQ: 1 Set
-
Anti-UV PPR Pipe Extrusion Machine PPR Pipe With Anti-UV LayerUS$ 50,000 - 100,000MOQ: 1 Set
-
Anti-UV PPR Pipe Extruder Machine PPR Pipe With Anti-UV LayerUS$ 50,000 - 100,000MOQ: 1 Set
Condition
New
Application
Other, Energy Supply Pipe
Plastic Processed
Other, Glassfiber PPR
Screw Design
Single-screw
Automatic Grade
Automatic
Place of Origin
Shandong, China
Brand Name
KAIDE
Model Number
SJ-80/33,SJ65/33
Voltage
380V or Customized
Power(W)
175 KW
Dimension(L*W*H)
42mx3mx2.5m
Weight
5300KGS
Certification
CE ISO
After-sales Service Provided
Engineers available to service machinery overseas
China Fiberglass Reinforced PPR Pipe Making Machine /PPR GF PPR Pipe Extrusion Machine/Production Line Maker
- 3 layers PPR-GF-PPR pipe line of 28m/min speed
- Siemens PLC computer control
- Pipe diameter:20mm-63mm;20-110mm,75-160mm
- Speed:28m/min
1.General Introduction
- 1)Our factory are the birthplace of China's first high speed plastic pipe production line!
- 2)We are most professional multilayer composite pipe extrusion machine manufacture!
- 3)Our ppr-gf-ppr pipe extrusion making machine has been exported to Russia,Ukraine,Iran,Algeria etc!And it has enjoyed great reputation for our higher machine quality and better service!
- 4)For the core technology of high speed PPR pipe machine,we have gained 5 National patents.
2. Technical Data
| 1 | Production scope | 20mm-63mm |
| 2 | Production speed | 28m/min |
| 3 | Inverter | ABB Brand |
| 4 | Electric power | 380V 50 HZ |
| 5 | Water supply temperature | 5-15℃ |
| 6 | Air pressure required | ≥0.6Mpa |
| 7 | Production Line Size | 42m×3m×3.5m |
| 8 | Low-voltage apparatus | Schneilder Brand |
| 9 | Nominal Power | 271KW |
| 10 | Actual power | 149-163KW |
3. Compositions
- PPR Extruder
- Glassfiber Extruder
- Marking line Extruder
- Die head mould
- Vacuum calibrating stand
- Water cooling flume
- Pulling machine
- Cutting machine
- PLC computer

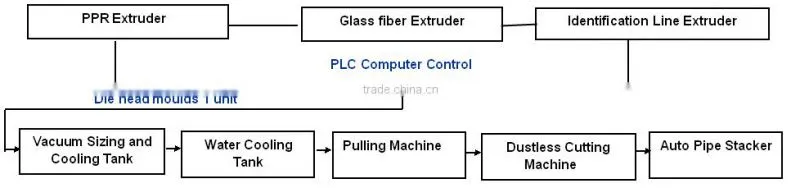

4. fiberglass PPR pipe extruding procession

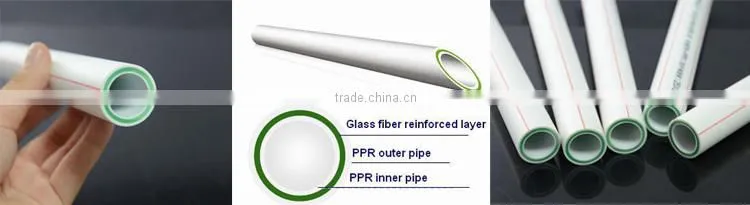

5.Manufactured Pipe:PPR-GF-PPR pipe

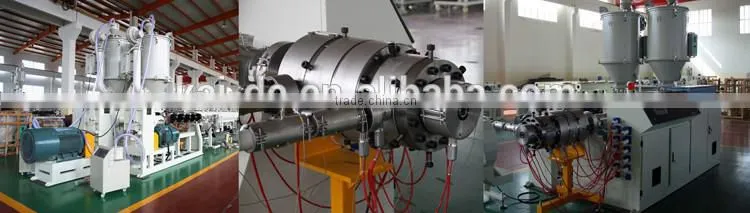

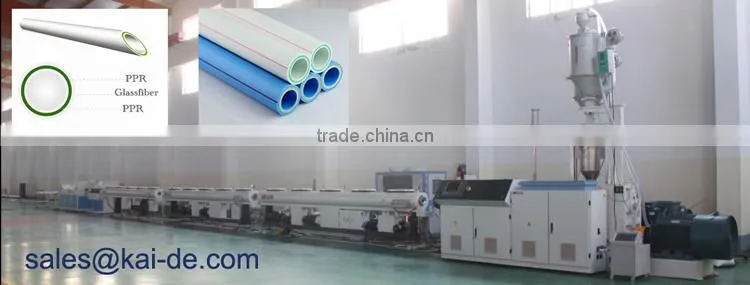

6.Workshop of ppr-fiberglass-ppr pipe machine
Our company is a factory special in manufacturing Plasric Pipe Extrusion Machine,especially:
- 1)high speed plastic pipe making machine
- 2)composite mutilayer plastic pipe making machine.
7.Chinaplas Exhibition
Any inquiry from you are highly appreciated,Thanks in advenced.-:))
Contact information
Any problems,pls don't hestite to contact us ,and welcome to visit our factory!
