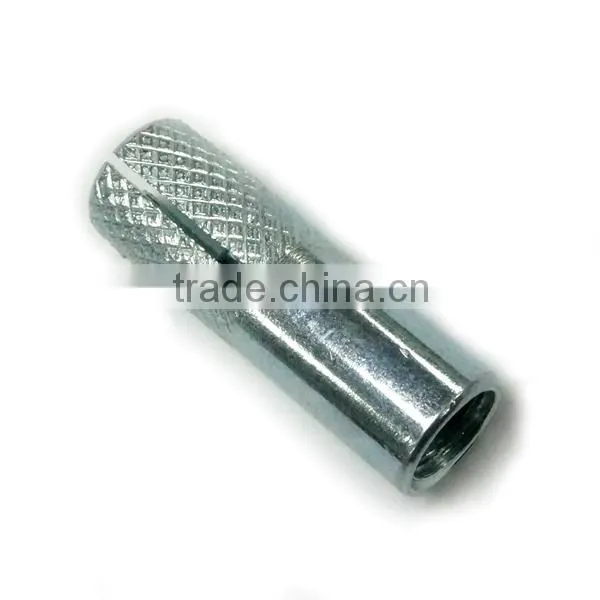

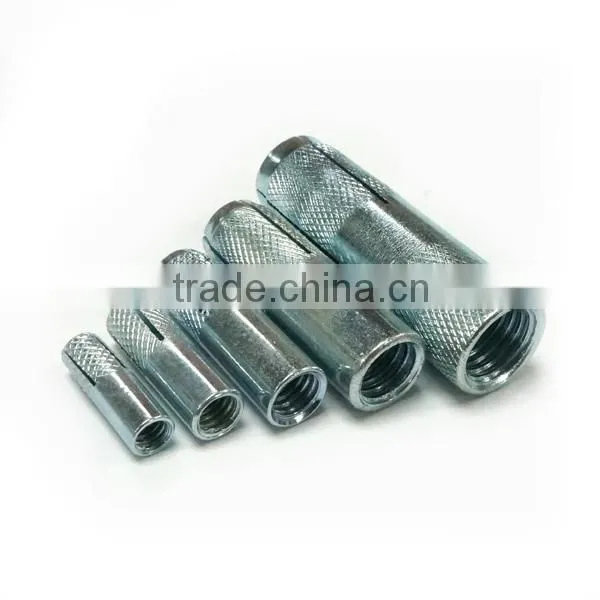

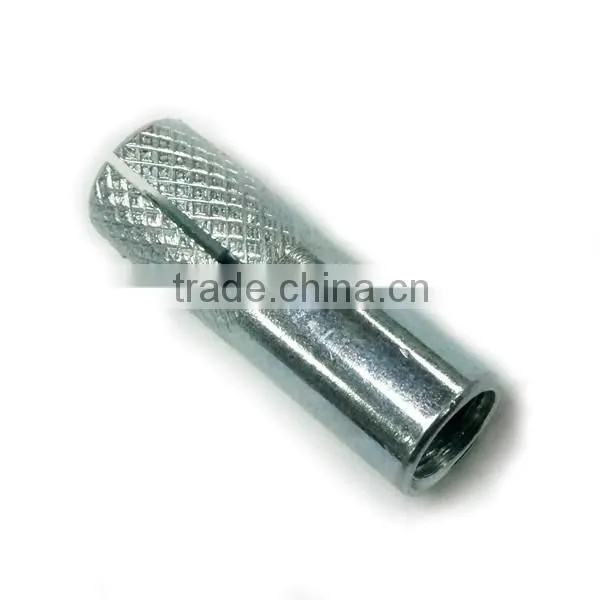

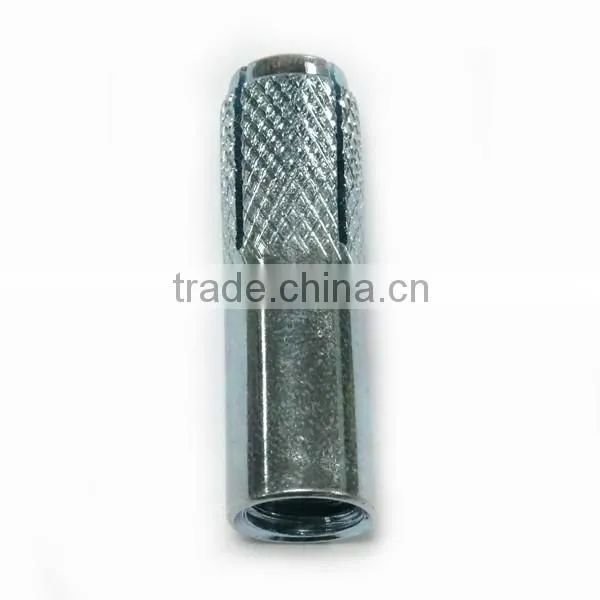

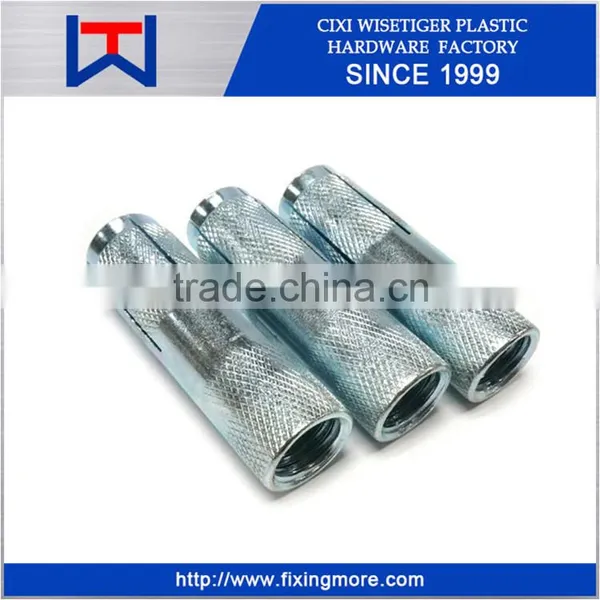

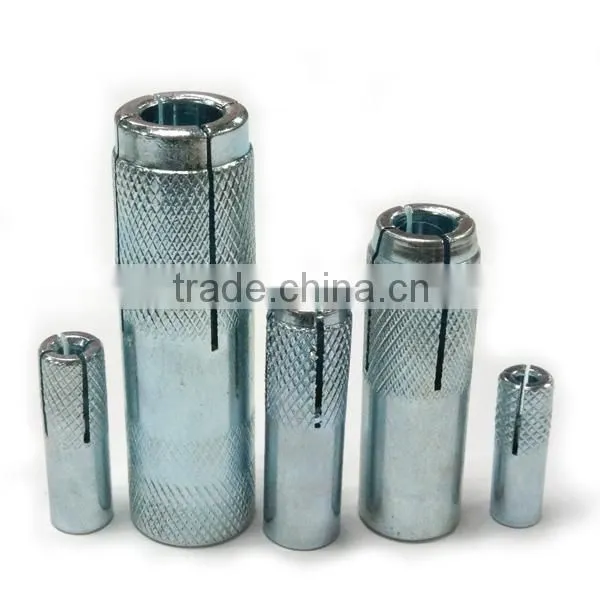

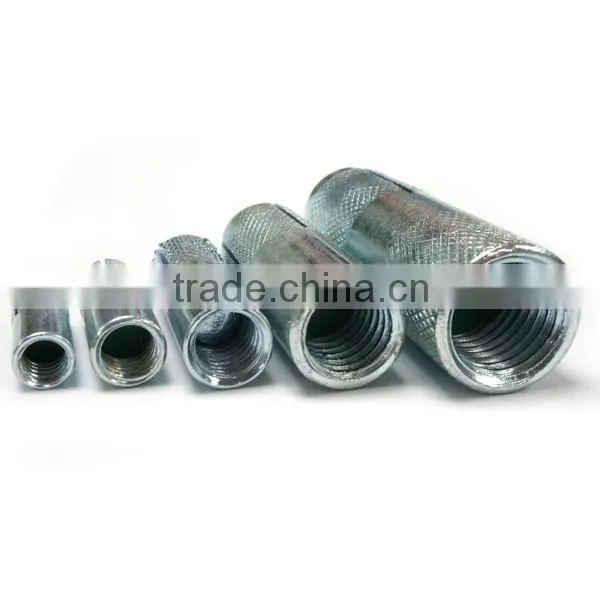

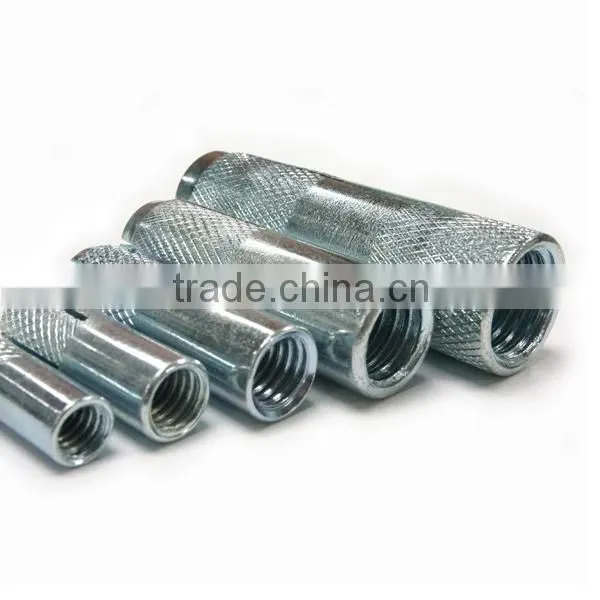

Help CenterChina Made YZP Bright Concrete Drop In Anchor Carbon Steel
Related Products
-
Hilti Drop in Anchor M16US$ 0.1 - 1MOQ: 1000 Pieces -
High Quality Drop in Anchor M12US$ 0.1 - 1MOQ: 1000 Pieces
-
Drop-in Anchor With LipUS$ 0.1 - 1MOQ: 1000 Pieces
-
Lipped Drop in Anchor With Zinc PlatedUS$ 0.1 - 1MOQ: 1000 Pieces
-
Carbon Steel Blue White Zinc Plated Drop In Anchor M10 M12US$ 0.1 - 1MOQ: 1000 Pieces
Drop in Anchor with knurled
Base Material
1.Base material of concrete,hardnatureal stone.
2.For fastening mediunloads,for example suspended ceiling pipes rails,channels,panels,brackets etc.
(Solid concrete, solid block, hard stone, Piping, ventilation systems, cable ducts)
Product Advantages
1. ISO9001:2000 Certified ,CE, GS
2. Quality Control inspection Before Shipment
3. Appearance: Bright neat body, without any burrs
4. Tolerances: Precision Tolerances to Customer Specification
5. Non-standard/ OEM/ODM/customized service provided
Specifications Model
A. METRIC
| CODE | SIZE | DRILL DIA. | DRILL DEP. | THREAD LEN. | TENSION(KN.)** |
| DA0630 | M6x30 | 8 | 33 | 13.5 | 1.5 |
| DA0830 | M8x30 | 10 | 33 | 13.5 | 2 |
| DA1030 | M10x30 | 12 | 33 | 13.5 | 3 |
| DA1040 | M10x40 | 12 | 44 | 18 | 3 |
| DA1250 | M12x50 | 15 | 54 | 22.5 | 5.3 |
| DA1251 | M12x50 | 16 | 54 | 22.5 | 5.3 |
| DA1665 | M16x65 | 20 | 71 | 29 | 7.4 |
| DA2080 | M20x80 | 25 | 86 | 36 | 11 |
B. INCH
| CODE | SIZE | DRILL DIA. | DRILL DEP. | THREAD LEN. | TENSION(LBS.)** |
| DA14 | 1/4" | 3/8" | 1" | 7/16" | 391 |
| DA516 | 5/16" | 3/8" | 1" | 7/16" | 420 |
| DA38 | 3/8" | 1/2" | 1-9/16" | 5/8" | 712 |
| DA12 | 1/2" | 5/8" | 2" | 1-3/16" | 1047 |
| DA58 | 5/8" | 7/8" | 2-1/2" | 1-3/16" | 1833 |
| DA34 | 3/4" | 1" | 3-3/16" | 1-3/8" | 2391 |
** Tabulated load values are for anchors installed in concrete(Concrete C20/25). Concrete compressive strength must be at the specified minimum at the time of installation.
