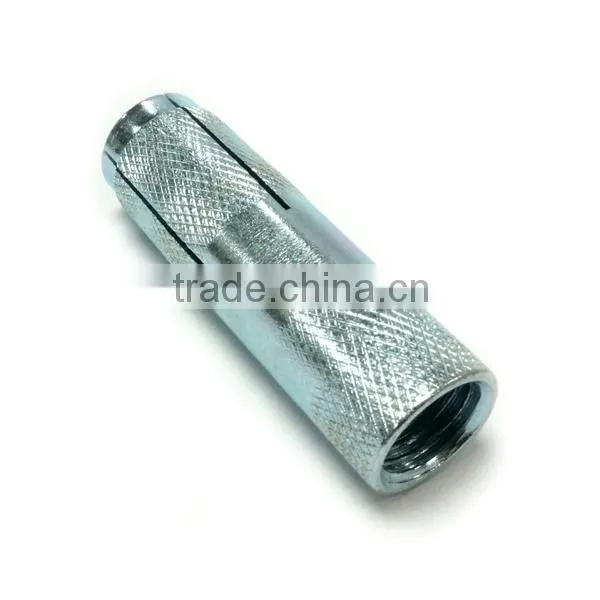

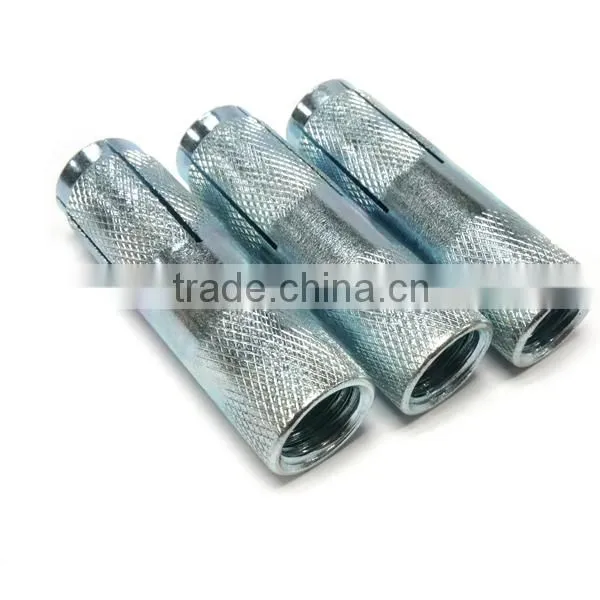

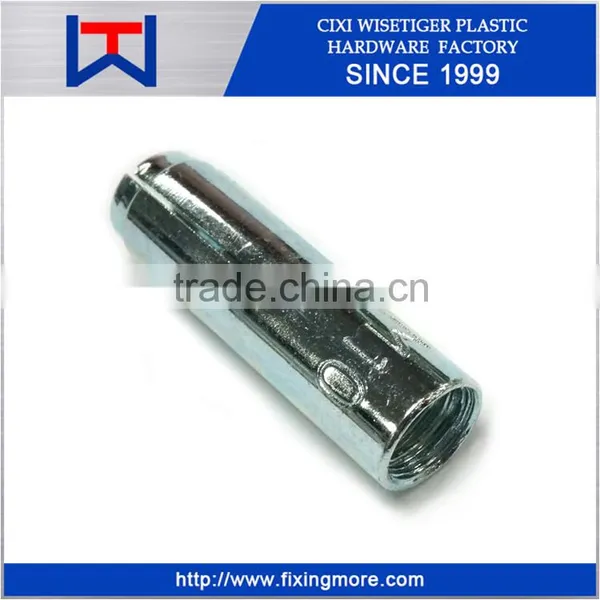

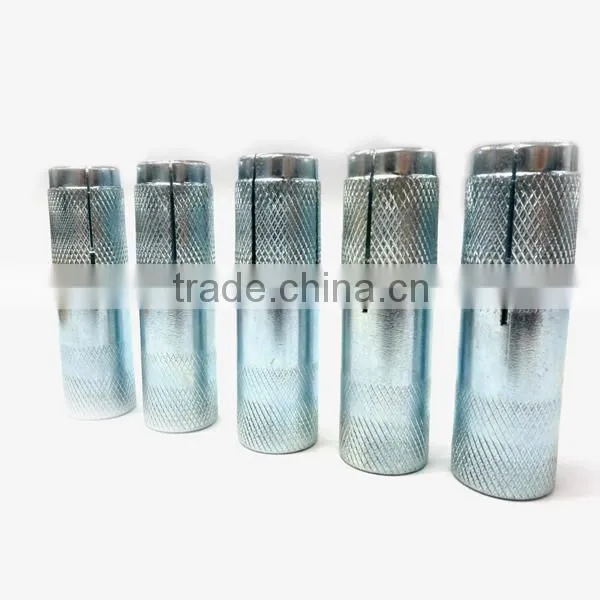

Lipped Drop in Anchor With Zinc Plated
US$ 0.1 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Fixingmore
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Carbon Steel Blue White Zinc Plated Drop In Anchor M10 M12US$ 0.1 - 1MOQ: 1000 Pieces -
Cut Expansion Anchor for Grille 5/8"US$ 0.1 - 1MOQ: 1000 Pieces
-
China Ultra Cut Anchor for Sale M6US$ 0.1 - 1MOQ: 1000 Pieces
-
M16 Strike Anchor/Steel Expansion AnchorUS$ 0.1 - 1MOQ: 1000 Pieces
-
Metal Hit Anchor/Strike Anchor/Hammer Drive Anchor With Spinning Washer Nut,Zinc PlatedUS$ 0.1 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Fixingmore
Model Number
OEM
Type
Drop-in Anchor
Material
Steel
Diameter
1/4"-1/2"
Length
5/8"-1"
Capacity
1.3-3.8LBS.
Standard
Other, DIN, ANSI,ASTM, JIS, GB,etc
Mini Drop-in Anchor lipped
Base Material
pre-cast hollow core plank
concrete
Product Advantages
1. ISO9001:2000 Certified ,CE, GS
2. Quality Control inspection Before Shipment
3. Appearance: Bright neat body, without any burrs
4. Tolerances: Precision Tolerances to Customer Specification
5. Non-standard/ OEM/ODM/customized service provided
Specifications Model
A. INCH
| CODE | SIZE | DRILL DIA. | DRILL DEP. | THREAD LEN. | TENSION(LBS.)** |
| MD14 | 1/4" | 3/8" | 5/8" | 3/8" | 1.3 |
| MD38 | 3/8" | 1/2" | 3/4" | 13/32" | 2.4 |
| MD12 | 1/2" | 5/8" | 1" | 5/8" | 3.8 |
** Tabulated load values are for anchors installed in concrete(Concrete C20/25).
Concrete compressive strength must be at the specified minimum at the time of installation.
