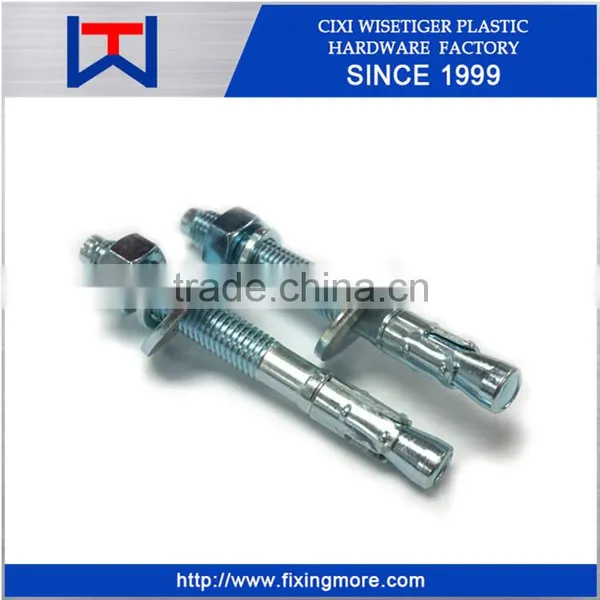

Heavy Duty Wedge Type Expansion Anchor
US$ 0.1 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Supplier High Quality Heavy Duty Concrete AnchorsUS$ 0.1 - 1MOQ: 1000 Pieces -
China Made YZP Bright Concrete Drop In Anchor Carbon SteelUS$ 0.1 - 1MOQ: 1000 Pieces
-
Hilti Drop in Anchor M16US$ 0.1 - 1MOQ: 1000 Pieces
-
High Quality Drop in Anchor M12US$ 0.1 - 1MOQ: 1000 Pieces
-
Drop-in Anchor With LipUS$ 0.1 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
OEM
Type
Heavy Duty Anchor
Material
Steel
Diameter
M6-M20(1/4" to 5/8")
Length
60mm - 260mm (1-3/4" to 8-1/2")
Capacity
5.8-23.8KN. (325-2755LBS.)
Standard
Other, DIN, ANSI,ASTM, JIS, GB,etc
Heavy Duty Anchor With Hex Head ZP
Base Material
Cracked Concrete
Uncracked Concrete
Sand-limestone Solid
Product Advantages
1. ISO9001:2000 Certified ,CE, GS
2. Quality Control inspection Before Shipment
3. Appearance: Bright neat body, without any burrs
4. Tolerances: Precision Tolerances to Customer Specification
5. Non-standard/ OEM/ODM/customized service provided
Specifications Model
A. METRIC
| CODE | SIZE | DRILL DIA. | LENGTH | MINIMUM EMB. | TENSIONS(KN.)** |
| HDA06060 | M6 | 10mm | 60mm | 50mm | 5.8 |
| HDA06070 | M6 | 70mm | |||
| HDA06090 | M6 | 90mm | |||
| HDA06110 | M6 | 110mm | |||
| HDA08070 | M8 | 12mm | 70mm | 60mm | 7.6 |
| HDA08080 | M8 | 80mm | |||
| HDA08100 | M8 | 100mm | |||
| HDA08120 | M8 | 120mm | |||
| HDA10085 | M10 | 15mm | 85mm | 71mm | 11.9 |
| HDA10100 | M10 | 100mm | |||
| HDA10110 | M10 | 110mm | |||
| HDA10130 | M10 | 130mm | |||
| HDA10180 | M10 | 180mm | |||
| HDA12100 | M12 | 18mm | 100mm | 80mm | 14.3 |
| HDA12110 | M12 | 110mm | |||
| HDA12120 | M12 | 120mm | |||
| HDA12140 | M12 | 140mm | |||
| HDA12170 | M12 | 170mm | |||
| HDA16120 | M16 | 24mm | 120mm | 100mm | 19.1 |
| HDA16140 | M16 | 140mm | |||
| HDA16170 | M16 | 170mm | |||
| HDA20170 | M20 | 28mm | 170mm | 125mm | 23.8 |
| HDA20190 | M20 | 190mm | |||
| HDA20220 | M20 | 220mm | |||
| HDA20260 | M20 | 260mm |
B. INCH
| CODE | SIZE | DRILL DIA. | ANCHOR LEN. | MINIMUN EMB. | MAX. FIXTURE THICK. | TENSION(LBS.)** |
| HDA14134 | 1/4" x 1-3/4" | 1/4" | 1-3/4" | 1-1/4" | 1/2" | 325 |
| HDA143 | 1/4" x 3" | 1/4" | 3" | 1-3/4" | 1-3/4" | 485 |
| HDA38214 | 3/8" x 2-1/4" | 3/8" | 2-1/4" | 2" | 1/4" | 865 |
| HDA383 | 3/8" x 3" | 3/8" | 3" | 2-3/4" | 1" | 1105 |
| HDA38312 | 3/8" x 3-1/2" | 3/8" | 3-1/2" | 2-3/4" | 1-1/2" | 1105 |
| HDA384 | 3/8" x 4" | 3/8" | 4" | 2-3/4" | 2" | 1105 |
| HDA12234 | 1/2" x 2-3/4" | 1/2" | 2-3/4" | 2-1/2" | 1/4" | 1225 |
| HDA12312 | 1/2" x 3-1/2" | 1/2" | 3-1/2" | 3" | 1/4" | 1640 |
| HDA12434 | 1/2" x 4-3/4" | 1/2" | 4-3/4" | 3-1/4" | 1-1/2" | 2160 |
| HDA12534 | 1/2" x 5-3/4" | 1/2" | 5-3/4" | 3-1/4" | 2-1/2" | 2160 |
| HDA583 | 5/8" x 3" | 5/8" | 3" | 2-3/4" | 1/4" | 1500 |
| HDA584 | 5/8" x 4" | 5/8" | 4" | 3-1/2" | 1/4" | 2210 |
| HDA585 | 5/8" x 5" | 5/8" | 5" | 3-3/4" | 1-1/4" | 2755 |
| HDA586 | 5/8" x 6" | 5/8" | 6" | 3-3/4" | 2-1/4" | 2755 |
| HDA58812 | 5/8" x 8-1/2" | 5/8" | 8-1/2" | 3-3/4" | 4-3/4" | 2755 |
** Tabulated load values are for anchors installed in concrete(Concrete C20/25). Concrete compressive strength must be at the specified minimum at the time of installation.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2010
Factory Size
1,000-3,000 square meters
Total Employees
51 - 100 People
