High strength Carbon Steel Wedge Anchor Use to the Concrete 12mm
Technical Data
Diameter |
M6-M24(1/4” to 1-1/4”) |
Length |
40mm-440mm (1-3/4” to 12”) |
Capacity |
3.6-18.3KN. (1770-27845LBS.) |
Standard |
DIN, ANSI,ASTM, JIS, GB,etc |
Material |
Steel/Carbon Steel /Stainless Steel |
Surface |
Zinc Plated/Hot Dipped/Mechanical Galvanising |
Thread |
Metric,UNC,UNF,BSW,RD |
Color |
Yellow/ Blue and White |
Product Description

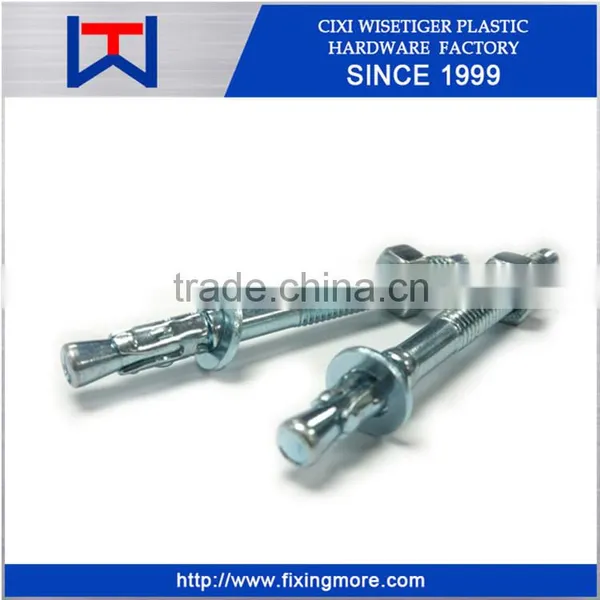

The wedge anchor consists of two pieces permanently preassembled into a single unit.
The carbon steel rod is threaded for a portion of its length.
The extreme end of the threaded portion is rounded to protect the threads from damage while the anchor is being driven into the hole drilled in the concrete.
The other end of the rod has a necked down diameter, which runs for a short distance, at the end of which it tapers outwardly to the full diameter of the rod.
A precision formed universal clip made of carbon steel is permanently assembled around the necked down diameter to complete the anchor.
Each package contains the correct number of nuts and washers.
Base Material
Cracked Concrete
Uncracked Concrete
Steel structure
Rilings
Cntilever Backet
Ecalator
Crtain wall
Dors and Wndows
Mchanical Euipment
Cble Tay
Woden Sructure
Installation Instructions
1. Drill a hole in the concrete using a hammer drill and a carbide tipped masonry drill bit conforming to ANSI B94, 12-77,the same diameter as the wedge anchor. If the fixture being fastened is in place and being used as a template to locate the hole for the anchor, the mounting hole in the fixture should afford clearance for the universal wedge clip on the stud.
2. Clear the hole of all debris
3. Place the wedge anchor through the hole in the fixture or directly into the concrete, and hammer it in to the drilled hole, ensuring that they are installed to the desired depth.
4. Turn the nut by hand until the unit is "snugged up". Tighten the nut with a torque wrench to ensure they are tightened to the required torque value.
Product Advantages
1. ISO9001:2000 Certified ,CE, GS
2. Quality Control inspection Before Shipment
3. Appearance: Bright neat body, without any burrs
4. Tolerances: Precision Tolerances to Customer Specification
5. Non-standard/ OEM/ODM/customized service provided
6.The longer thread interval makes a variety of thickness of anchorage possible
7. Electro-galvanizing offers maximum bearing capacity in non-cracking concrete, making full use of the intension of substrate
8. Flexible, can be used on the smaller surface or close to the edge
9. When the diameter of anchor is 8mm to 16mm or meeting steel bar during the installation, the depth of drilling hole can be decreased
10. Anti-seismic, anti-aging, high-temperature resistance, weather resistance, resistance to fracture
Specifications Model
A. MM
| CODE | SIZE | THREAD LEN. | MINIMUM EMB. | TENSIONS(KN.)** |
| WA06040 | M6x40 | 20mm | 30mm | 3.6 |
| WA06050 | M6x50 | 30mm | ||
| WA06055 | M6x55 | 35mm | ||
| WA06065 | M6x65 | 35mm | ||
| WA06070 | M6x70 | 40mm | ||
| WA06080 | M6x80 | 60mm | ||
| WA06090 | M6x90 | 70mm | ||
| WA06095 | M6x95 | 75mm | ||
| WA06100 | M6x100 | 80mm | ||
| WA06120 | M6x120 | 95mm | ||
| WA08050 | M8x50 | 20mm | 35mm | 5.7 |
| WA08060 | M8x60 | 30mm | ||
| WA08070 | M8x70 | 40mm | ||
| WA08075 | M8x75 | 45mm | ||
| WA08080 | M8x80 | 50mm | ||
| WA08085 | M8x85 | 55mm | ||
| WA08090 | M8x90 | 60mm | ||
| WA08095 | M8x95 | 65mm | ||
| WA08100 | M8x100 | 70mm | ||
| WA08105 | M8x105 | 70mm | ||
| WA08110 | M8x110 | 75mm | ||
| WA08115 | M8x115 | 85mm | ||
| WA08120 | M8x120 | 85mm | ||
| WA08130 | M8x130 | 95mm | ||
| WA08150 | M8x150 | 115mm | ||
| WA08160 | M8x160 | 125mm | ||
| WA08165 | M8x165 | 130mm | ||
| WA10060 | M10x60 | 20mm | 45mm | 7.6 |
| WA10066 | M10x65 | 25mm | ||
| WA10070 | M10x70 | 30mm | ||
| WA10080 | M10x80 | 40mm | ||
| WA10095 | M10x95 | 55mm | ||
| WA10100 | M10x100 | 60mm | ||
| WA10110 | M10x110 | 70mm | ||
| WA10115 | M10x115 | 70mm | ||
| WA10120 | M10x120 | 75mm | ||
| WA10125 | M10x125 | 80mm | ||
| WA10130 | M10x130 | 85mm | ||
| WA10140 | M10x140 | 95mm | ||
| WA10150 | M10x150 | 105mm | ||
| WA10160 | M10x160 | 115mm | ||
| WA10170 | M10x170 | 125mm | ||
| WA10180 | M10x180 | 135mm | ||
| WA10210 | M10x210 | 165mm | ||
| WA12080 | M12x80 | 30mm | 60mm | 8.3 |
| WA12110 | M12x110 | 60mm | ||
| WA12125 | M12x125 | 75mm | ||
| WA12145 | M12x145 | 95mm | ||
| WA12165 | M12x165 | 125mm | ||
| WA12185 | M12x185 | 135mm | ||
| WA12200 | M12x200 | 145mm | ||
| WA12220 | M12x220 | 165mm | ||
| WA12240 | M12x240 | 195mm | ||
| WA12260 | M12x260 | 205mm | ||
| WA12280 | M12x280 | 225mm | ||
| WA12300 | M12x300 | 245mm | ||
| WA12330 | M12x330 | 275mm | ||
| WA12360 | M12x360 | 305mm | ||
| WA16090 | M16x90 | 30mm | 75mm | 9.9 |
| WA16115 | M16x115 | 55mm | ||
| WA16130 | M16x130 | 70mm | ||
| WA16145 | M16x145 | 85mm | ||
| WA16160 | M16x160 | 100mm | ||
| WA16180 | M16x180 | 120mm | ||
| WA16220 | M16x220 | 155mm | ||
| WA16240 | M16x240 | 175mm | ||
| WA16260 | M16x260 | 195mm | ||
| WA16280 | M16x280 | 215mm | ||
| WA16300 | M16x300 | 235mm | ||
| WA16330 | M16x330 | 265mm | ||
| WA16440 | M16x440 | 370mm | ||
| WA20130 | M20x130 | 60mm | 85mm | 16.5 |
| WA20160 | M20x160 | 90mm | ||
| WA20200 | M20x200 | 130mm | ||
| WA20270 | M20x270 | 200mm | ||
| WA24180 | M24x180 | 100mm | 105mm | 18.3 |
| WA24260 | M24x260 | 180mm |
B. I NCH
| CODE | SIZE | THREAD LEN. | MINIMUN EMB. | TENSION(LBS.)** |
| WA14134 | 1/4" x 1-3/4" | 3/4" | 1-1/8" | 1771 |
| WA14214 | 1/4" x 2-1/4" | 1-1/4" | ||
| WA14314 | 1/4" x 3-1/4" | 2-1/4" | ||
| WA38214 | 3/8" x 2-1/4" | 1-1/4" | 1-5/8" | 3636 |
| WA38234 | 3/8" x 2-3/4" | 1-5/8" | ||
| WA383 | 3/8" x 3" | 1-7/8" | ||
| WA38312 | 3/8" x 3-1/2" | 2-3/8" | ||
| WA38334 | 3/8" x 3-3/4" | 2-5/8" | ||
| WA385 | 3/8" x 5" | 3-7/8" | 5653 | |
| WA387 | 3/8" x 7" | 5-7/8" | 6328 | |
| WA12234 | 1/2" x 2-3/4" | 1-3/8" | 2-1/4" | 6714 |
| WA12334 | 1/2" x 3-3/4" | 2-3/8" | ||
| WA12412 | 1/2" x 4-1/2" | 3-1/8" | ||
| WA12512 | 1/2" x 5-1/2" | 4-1/8" | 8942 | |
| WA127 | 1/2" x 7" | 5-5/8" | ||
| WA12812 | 1/2" x 8-1/2" | 7-1/8" | 10175 | |
| WA58312 | 5/8" x 3-1/2" | 2" | 2-3/4" | 8747 |
| WA58412 | 5/8" x 4-1/2" | 3" | ||
| WA585 | 5/8" x 5" | 3-1/2" | ||
| WA586 | 5/8" x 6" | 4-1/2" | ||
| WA587 | 5/8" x 7" | 5-1/2" | 15590 | |
| WA58812 | 5/8" x 8-1/2" | 7" | 16710 | |
| WA5810 | 5/8" x 10" | 8-1/2" | ||
| WA34414 | 3/4" x 4-1/4" | 2-3/8" | 3-3/8" | 11314 |
| WA34434 | 3/4" x 4-3/4" | 2-7/8" | ||
| WA34512 | 3/4" x 5-1/2" | 3-5/8" | ||
| WA34614 | 3/4" x 6-1/4" | 4-3/8" | ||
| WA347 | 3/4" x 7" | 5-1/8" | ||
| WA34812 | 3/4" x 8-1/2" | 6-5/8" | 18408 | |
| WA3410 | 3/4" x 10" | 8-1/8" | 19805 | |
| WA3412 | 3/4" x 12" | 10-1/8" | ||
| WA786 | 7/8" x 6" | 2-3/4" | 3-7/8" | 16534 |
| WA788 | 7/8" x 8" | 4-3/4" | ||
| WA7810 | 7/8" x 10" | 6-3/4" | 18250 | |
| WA16 | 1" x 6" | 2-3/8" | 4-1/2" | 18250 |
| WA19 | 1" x 9" | 5-3/8" | ||
| WA112 | 1" x 12" | 8-3/8" | 26726 | |
| WA1149 | 1-1/4" x 9" | 4-3/4" | 5-1/2" | 22971 |
| WA11412 | 1-1/4" x 12" | 7-3/4" | 27845 |
** Tabulated load values are for anchors installed in concrete(Concrete C20/25). Concrete compressive strength must be at the specified minimum at the time of installation.
