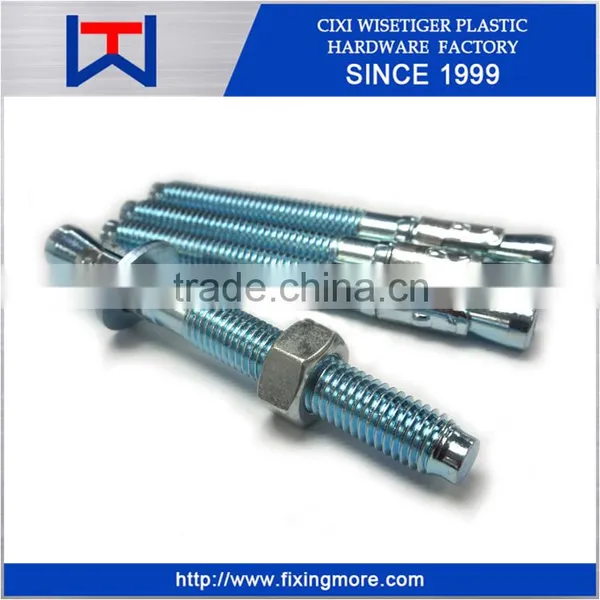

China Supplier Carbon Steel Zinc Plated Expansion Bolt Wedge Anchor
US$ 0.1 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Fixingmore
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Wedge Anchors/Through Bolts Hot Dipped GalvanizedUS$ 0.1 - 1MOQ: 1000 Pieces -
Wedge Anchors/Through Bolts With Hot Dipped GalvanizedUS$ 0.1 - 1MOQ: 1000 Pieces
-
Galvanized Sleeve Anchor With Flange NutUS$ 0.1 - 1MOQ: 1000 Pieces
-
Heavy Sleeve Anchor With TurnbuckleUS$ 0.1 - 1MOQ: 1000 Pieces
-
Zinc Plated Sleeve Anchors With Hex HeadUS$ 0.1 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Fixingmore
Model Number
OEM
Standard
Other, DIN, ANSI,ASTM, JIS, GB,etc
China Supplier Carbon Steel Zinc Plated Expansion Bolt wedge Anchor
Base Material
Cracked Concrete
Uncracked Concrete
Steel structure
Rilings
Cntilever Backet
Ecalator
Crtain wall
Dors and Wndows
Mchanical Euipment
Cble Tay
Woden Sructure
Product Advantages
1. ISO9001:2000 Certified ,CE, GS
2. Quality Control inspection Before Shipment
3. Appearance: Bright neat body, without any burrs
4. Tolerances: Precision Tolerances to Customer Specification
5. Non-standard/ OEM/ODM/customized service provided
6. The longer thread interval makes a variety of thickness of anchorage possible
7. Electro-galvanizing offers maximum bearing capacity in non-cracking concrete, making full use of the intension of substrate
8. Flexible, can be used on the smaller surface or close to the edge
9. When the diameter of anchor is 8mm to 16mm or meeting steel bar during the installation, the depth of drilling hole can be decreased
10. Anti-seismic, anti-aging, high-temperature resistance, weather resistance, resistance to fracture
Specifications Model
A. METRIC
| CODE | SIZE | THREAD LEN. | MINIMUM EMB. | TENSIONS(KN.)** |
| WA06040 | M6x40 | 20mm | 30mm | 3.6 |
| WA06050 | M6x50 | 30mm | ||
| WA06055 | M6x55 | 35mm | ||
| WA06065 | M6x65 | 35mm | ||
| WA06070 | M6x70 | 40mm | ||
| WA06080 | M6x80 | 60mm | ||
| WA06090 | M6x90 | 70mm | ||
| WA06095 | M6x95 | 75mm | ||
| WA06100 | M6x100 | 80mm | ||
| WA06120 | M6x120 | 95mm | ||
| WA08050 | M8x50 | 20mm | 35mm | 5.7 |
| WA08060 | M8x60 | 30mm | ||
| WA08070 | M8x70 | 40mm | ||
| WA08075 | M8x75 | 45mm | ||
| WA08080 | M8x80 | 50mm | ||
| WA08085 | M8x85 | 55mm | ||
| WA08090 | M8x90 | 60mm | ||
| WA08095 | M8x95 | 65mm | ||
| WA08100 | M8x100 | 70mm | ||
| WA08105 | M8x105 | 70mm | ||
| WA08110 | M8x110 | 75mm | ||
| WA08115 | M8x115 | 85mm | ||
| WA08120 | M8x120 | 85mm | ||
| WA08130 | M8x130 | 95mm | ||
| WA08150 | M8x150 | 115mm | ||
| WA08160 | M8x160 | 125mm | ||
| WA08165 | M8x165 | 130mm | ||
| WA10060 | M10x60 | 20mm | 45mm | 7.6 |
| WA10066 | M10x65 | 25mm | ||
| WA10070 | M10x70 | 30mm | ||
| WA10080 | M10x80 | 40mm | ||
| WA10095 | M10x95 | 55mm | ||
| WA10100 | M10x100 | 60mm | ||
| WA10110 | M10x110 | 70mm | ||
| WA10115 | M10x115 | 70mm | ||
| WA10120 | M10x120 | 75mm | ||
| WA10125 | M10x125 | 80mm | ||
| WA10130 | M10x130 | 85mm | ||
| WA10140 | M10x140 | 95mm | ||
| WA10150 | M10x150 | 105mm | ||
| WA10160 | M10x160 | 115mm | ||
| WA10170 | M10x170 | 125mm | ||
| WA10180 | M10x180 | 135mm | ||
| WA10210 | M10x210 | 165mm | ||
| WA12080 | M12x80 | 30mm | 60mm | 8.3 |
| WA12110 | M12x110 | 60mm | ||
| WA12125 | M12x125 | 75mm | ||
| WA12145 | M12x145 | 95mm | ||
| WA12165 | M12x165 | 125mm | ||
| WA12185 | M12x185 | 135mm | ||
| WA12200 | M12x200 | 145mm | ||
| WA12220 | M12x220 | 165mm | ||
| WA12240 | M12x240 | 195mm | ||
| WA12260 | M12x260 | 205mm | ||
| WA12280 | M12x280 | 225mm | ||
| WA12300 | M12x300 | 245mm | ||
| WA12330 | M12x330 | 275mm | ||
| WA12360 | M12x360 | 305mm | ||
| WA16090 | M16x90 | 30mm | 75mm | 9.9 |
| WA16115 | M16x115 | 55mm | ||
| WA16130 | M16x130 | 70mm | ||
| WA16145 | M16x145 | 85mm | ||
| WA16160 | M16x160 | 100mm | ||
| WA16180 | M16x180 | 120mm | ||
| WA16220 | M16x220 | 155mm | ||
| WA16240 | M16x240 | 175mm | ||
| WA16260 | M16x260 | 195mm | ||
| WA16280 | M16x280 | 215mm | ||
| WA16300 | M16x300 | 235mm | ||
| WA16330 | M16x330 | 265mm | ||
| WA16440 | M16x440 | 370mm | ||
| WA20130 | M20x130 | 60mm | 85mm | 16.5 |
| WA20160 | M20x160 | 90mm | ||
| WA20200 | M20x200 | 130mm | ||
| WA20270 | M20x270 | 200mm | ||
| WA24180 | M24x180 | 100mm | 105mm | 18.3 |
| WA24260 | M24x260 | 180mm |
B. I NCH
| CODE | SIZE | THREAD LEN. | MINIMUN EMB. | TENSION(LBS.)** |
| WA14134 | 1/4" x 1-3/4" | 3/4" | 1-1/8" | 1771 |
| WA14214 | 1/4" x 2-1/4" | 1-1/4" | ||
| WA14314 | 1/4" x 3-1/4" | 2-1/4" | ||
| WA38214 | 3/8" x 2-1/4" | 1-1/4" | 1-5/8" | 3636 |
| WA38234 | 3/8" x 2-3/4" | 1-5/8" | ||
| WA383 | 3/8" x 3" | 1-7/8" | ||
| WA38312 | 3/8" x 3-1/2" | 2-3/8" | ||
| WA38334 | 3/8" x 3-3/4" | 2-5/8" | ||
| WA385 | 3/8" x 5" | 3-7/8" | 5653 | |
| WA387 | 3/8" x 7" | 5-7/8" | 6328 | |
| WA12234 | 1/2" x 2-3/4" | 1-3/8" | 2-1/4" | 6714 |
| WA12334 | 1/2" x 3-3/4" | 2-3/8" | ||
| WA12412 | 1/2" x 4-1/2" | 3-1/8" | ||
| WA12512 | 1/2" x 5-1/2" | 4-1/8" | 8942 | |
| WA127 | 1/2" x 7" | 5-5/8" | ||
| WA12812 | 1/2" x 8-1/2" | 7-1/8" | 10175 | |
| WA58312 | 5/8" x 3-1/2" | 2" | 2-3/4" | 8747 |
| WA58412 | 5/8" x 4-1/2" | 3" | ||
| WA585 | 5/8" x 5" | 3-1/2" | ||
| WA586 | 5/8" x 6" | 4-1/2" | ||
| WA587 | 5/8" x 7" | 5-1/2" | 15590 | |
| WA58812 | 5/8" x 8-1/2" | 7" | 16710 | |
| WA5810 | 5/8" x 10" | 8-1/2" | ||
| WA34414 | 3/4" x 4-1/4" | 2-3/8" | 3-3/8" | 11314 |
| WA34434 | 3/4" x 4-3/4" | 2-7/8" | ||
| WA34512 | 3/4" x 5-1/2" | 3-5/8" | ||
| WA34614 | 3/4" x 6-1/4" | 4-3/8" | ||
| WA347 | 3/4" x 7" | 5-1/8" | ||
| WA34812 | 3/4" x 8-1/2" | 6-5/8" | 18408 | |
| WA3410 | 3/4" x 10" | 8-1/8" | 19805 | |
| WA3412 | 3/4" x 12" | 10-1/8" | ||
| WA786 | 7/8" x 6" | 2-3/4" | 3-7/8" | 16534 |
| WA788 | 7/8" x 8" | 4-3/4" | ||
| WA7810 | 7/8" x 10" | 6-3/4" | 18250 | |
| WA16 | 1" x 6" | 2-3/8" | 4-1/2" | 18250 |
| WA19 | 1" x 9" | 5-3/8" | ||
| WA112 | 1" x 12" | 8-3/8" | 26726 | |
| WA1149 | 1-1/4" x 9" | 4-3/4" | 5-1/2" | 22971 |
| WA11412 | 1-1/4" x 12" | 7-3/4" | 27845 |
** Tabulated load values are for anchors installed in concrete(Concrete C20/25).
Concrete compressive strength must be at the specified minimum at the time of installation.
