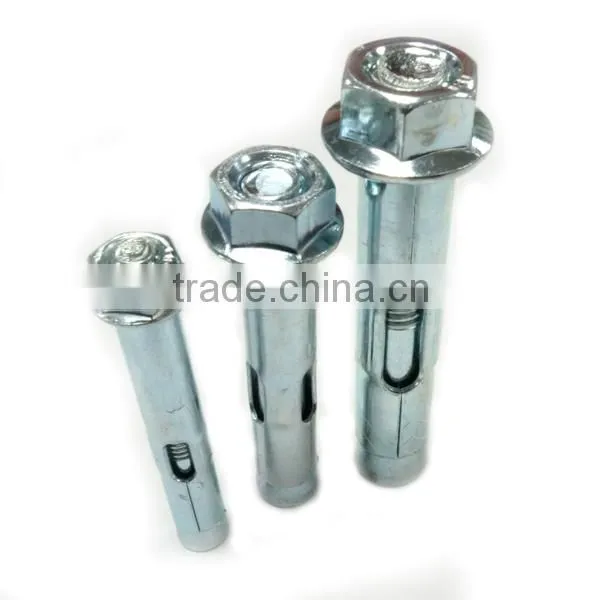

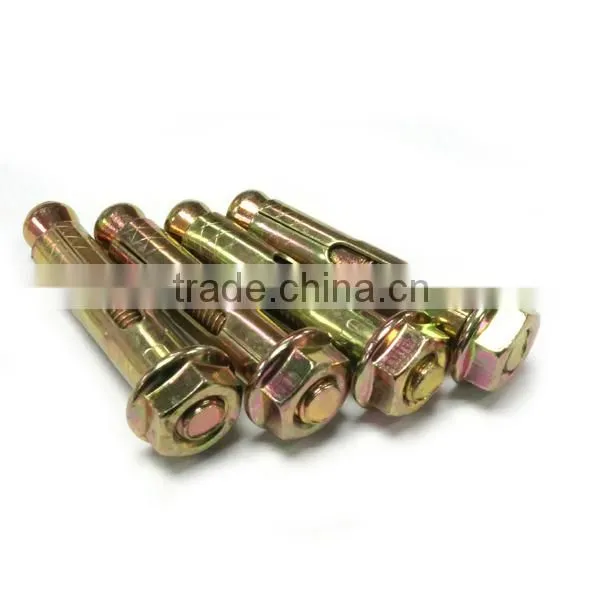

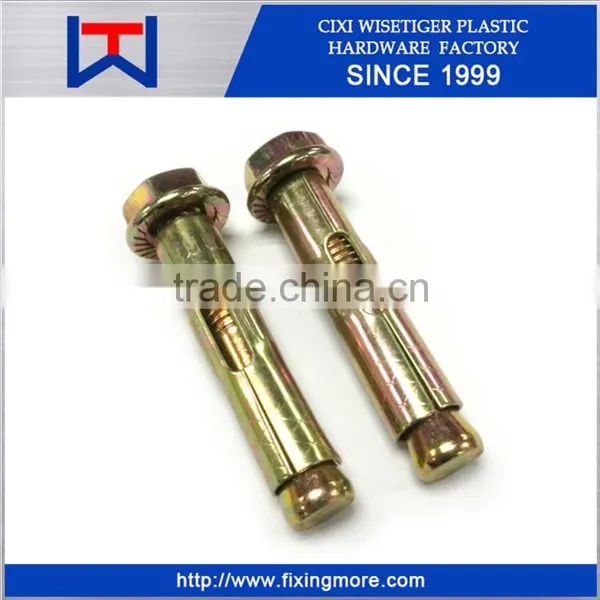

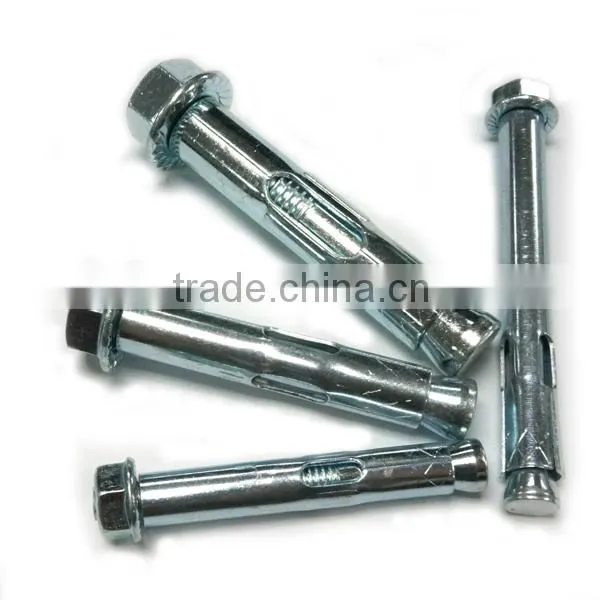

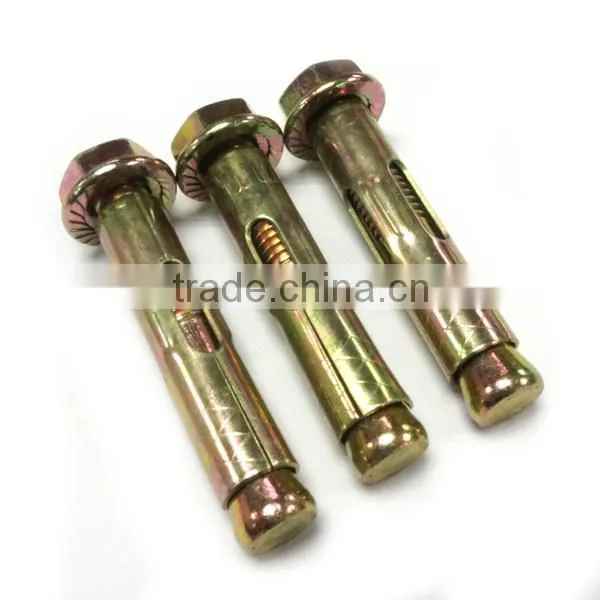

Galvanized Sleeve Anchor With Flange Nut
US$ 0.1 - 1
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Fixingmore
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heavy Sleeve Anchor With TurnbuckleUS$ 0.1 - 1MOQ: 1000 Pieces -
Zinc Plated Sleeve Anchors With Hex HeadUS$ 0.1 - 1MOQ: 1000 Pieces
-
Zinc Plated Sleeve Anchors With Hex NutUS$ 0.1 - 1MOQ: 1000 Pieces
-
Sleeve Anchor With MechanicalUS$ 0.1 - 1MOQ: 1000 Pieces
-
Sleeve Anchor With Hook Bolt,Zinc Plated / Hot Dipped / Mechanical GalvanisingUS$ 0.1 - 1MOQ: 1000 Pieces
Place of Origin
Zhejiang, China
Brand Name
Fixingmore
Model Number
OEM
Type
Sleeve Anchor
Material
Steel
Diameter
M8-M20 (5/16" to 3/4")
Length
40mm - 150mm (1-13/16" to 9")
Capacity
1.4-2.6KN. (325-1255LBS.)
Standard
Other, DIN, ANSI,ASTM, JIS, GB,etc
Zinc Plated Sleeve Anchors With Hex Nut
Base Material
Uncracked Concrete
Hollow-core Concrete Slabs
Natural Stone
Light Weight Concrete
Solid Brick/Masonry
Product Advantages
1. ISO9001:2000 Certified ,CE, GS
2. Quality Control inspection Before Shipment
3. Appearance: Bright neat body, without any burrs
4. Tolerances: Precision Tolerances to Customer Specification
5. Non-standard/ OEM/ODM/customized service provided
Specifications Model
A. METRIC
| CODE | SIZE | THREAD DIA. | LENGTH | MINIMUM EMB. | TENSIONS(KN.)** |
| SLA08040 | M8 | 6mm | 40mm | 30mm | 1.4 |
| SLA08065 | M8 | 65mm | 35mm | 1.4 | |
| SLA08085 | M8 | 85mm | 35mm | 1.4 | |
| SLA10050 | M10 | 8mm | 50mm | 40mm | 2.2 |
| SLA10075 | M10 | 75mm | 40mm | 2.2 | |
| SLA10100 | M10 | 100mm | 40mm | 2.2 | |
| SLA10125 | M10 | 125mm | 40mm | 2.2 | |
| SLA12060 | M12 | 10mm | 60mm | 45mm | 2.7 |
| SLA12075 | M12 | 75mm | 50mm | 2.7 | |
| SLA12100 | M12 | 100mm | 50mm | 2.7 | |
| SLA12130 | M12 | 130mm | 50mm | 2.7 | |
| SLA16065 | M16 | 12mm | 65mm | 50mm | 5.3 |
| SLA16110 | M16 | 110mm | 55mm | 5.3 | |
| SLA16150 | M16 | 150mm | 55mm | 5.3 | |
| SLA20080 | M20 | 16mm | 80mm | 60mm | 5.6 |
| SLA20110 | M20 | 110mm | 60mm | 5.6 | |
| SLA20150 | M20 | 150mm | 60mm | 5.6 |
B. I NCH
| CODE | SIZE | DRILL DIA. | ANCHOR LEN. | MINIMUM EMB. | TENSION(LBS.)** |
| SLA516112 | 5/16"x1-1/2" | 5/16" | 1-13/16" | 1-3/8" | 325 |
| SLA516238 | 5/16"x2-3/8" | 5/16" | 2-11/16" | 1-1/2" | 325 |
| SLA38178 | 3/8"x1-7/8" | 3/8" | 2-3/16" | 1-5/8" | 510 |
| SLA383 | 3/8"x3" | 3/8" | 3-5/16" | 1-5/8" | 510 |
| SLA384 | 3/8"x4" | 3/8" | 4-5/16" | 1-5/8" | 510 |
| SLA12212 | 1/2"x2-1/2" | 1/2" | 2-7/8" | 2-1/8" | 605 |
| SLA123 | 1/2"x3" | 1/2" | 3-3/8" | 2-1/4" | 605 |
| SLA12334 | 1/2"x3-3/4" | 1/2" | 4-3/8" | 2-1/4" | 605 |
| SLA12514 | 1/2"x5-1/4" | 1/2" | 6-1/8" | 2-1/4" | 605 |
| SLA126 | 1/2"x6" | 1/2" | 6-3/4" | 2-1/4" | 605 |
| SLA58212 | 5/8"x2-1/2" | 5/8" | 3-3/16" | 2-1/8" | 1185 |
| SLA583 | 5/8"x3" | 5/8" | 3-3/4" | 2-3/4" | 1185 |
| SLA58414 | 5/8"x4-1/4" | 5/8" | 5" | 2-3/4" | 1185 |
| SLA58534 | 5/8"x5-3/4" | 5/8" | 6-1/4" | 2-3/4" | 1185 |
| SLA34234 | 3/4"x2-3/4" | 3/4" | 3-5/8" | 2-1/8" | 1255 |
| SLA34414 | 3/4"x4-1/4" | 3/4" | 5-1/8" | 3-3/8" | 1255 |
| SLA34614 | 3/4"x6-1/4" | 3/4" | 7-1/8" | 3-3/8" | 1255 |
| SLA34814 | 3/4"x8-1/4" | 3/4" | 9" | 3-3/8" | 1255 |
** Tabulated load values are for anchors installed in concrete(Concrete C20/25). Concrete compressive strength must be at the specified minimum at the time of installation.
