Specifications
door lock drilling machine,1.easy programming,
2.9 shafts working together.
3.servo motor

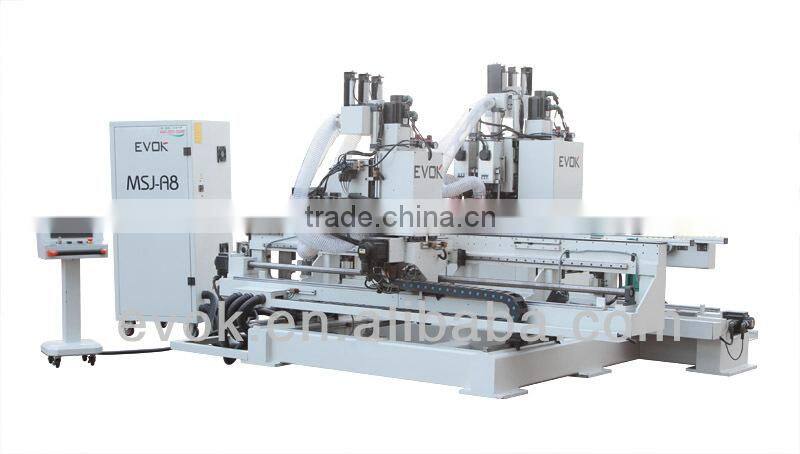

CNC high-speed and full function wooden-door lock-hole and hinge boring machine
(1)Brief introduction:
It can be used for drilling hole or boring hinge on the wooden-door with one time,the edge of door can be flat or bevel.the speed of drilling and boring rather fast.It takes only 2-3min to finish one door.
(2)technical parameter:
Max diameter of the cutter 20mm
Min diameter of the cutter 4mm
Panel width 600-1100mm
Panel length(max) 2600mm
Panel thickness 60mm
Max working depth 110mm
Max working hole 60mm
Lock groove cutter 3
Lock hole spindles 3
Hinge spindles 3
Cutter speed 12000T/min
Spindle speed 6000T/min
Installing power 18kw
Sevor motor 6sets
High-speed motor 9sets
Machine size 2800*2100*1580mm
