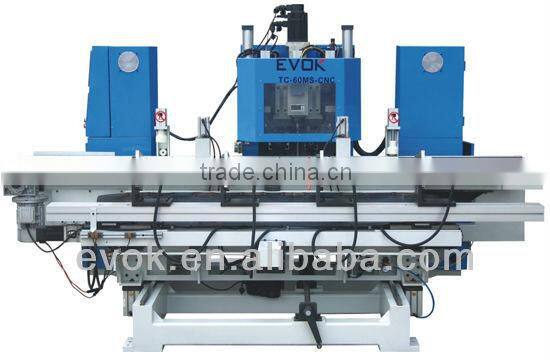

TC-60MS-CNC Door lock drilling machine
(1)Brief introduction:
It can be used for drilling hole or boring hinge on the wooden-door with one time,the edge of door can be flat or bevel.the speed of drilling and boring rather fast.It takes only 2-3min to finish one door.
(2)technical parameter:
Max diameter of the cutter 20mm
Min diameter of the cutter 4mm
Panel width 600-1100mm
Panel length(max) 2600mm
Panel thickness 60mm
Max working depth 110mm
Max working hole 60mm
Lock groove cutter 3
Lock hole spindles 3
Hinge spindles 3
Cutter speed 12000T/min
Spindle speed 6000T/min
Installing power 18kw
Sevor motor 6sets
High-speed motor 9sets
Machine size 2800*2100*1580mm
A. Pre-sales service
1. Indicate the specified function and equipment configuration.
2. Professional feedback on all kinds of technical questions.
3. Help to meet the needs of the individualized product. For example,OEM,ODM.
4. Welcome to visit our factory at any time.
B. On-purchase service
1. Provide the product performance and technical specification document sheets.
2. Confirm the changes or special requirements in the production process.
3. Welcome to visit our factory to inspect.
C. After-sales service
1. Provide installation, commissioning, operation, maintenance and other guidance.
2. Provide easy-wearing parts and common used spare parts.
3. 24 hours on line service.
4. Engineers available to service machinery overseas.
Customer First. Good will is the best policy.
-High Srandard.
-Fine Quyality.
-Famous Brand.
-Excellent Service
All products are ISO9001:2008 and CE certificated.
Wildly distributed through China and ecported to Europe, the Middle East, Asia and Oceania.
We are dedicated to continually perfecting our performance and providing high quality products
in appreciation for the support and cooperation of our customers.
Q1: Are U Manufacture or Trading Company ?
A: We are manufacture company, and we have a professional team for good service.
Q2: How long the machine can be used?
A: It depends how you use, if use it in good maintenance, at least 10 years.
Q3: How to ensure the safety?
A: There have the overlod and over heat protection,it ensure working people safety.
Q4: What is the difference with other producer?
A: "EVOK" means "Every machine is OK". We specialize in designing and manufacturing
woodworking machines. We have introduced advanced technology from abroad and own a
skillful R&D team. The key components of each machine are entirely bought from Italy,
Germany, Japan and Taiwan area.
Q5: What do U major in?
A: In the recent years, EVOK has successfully designed and developed a series of woodworking
machines as follows: automatic edge banding machines, multi-drill boring machines, novel corner
cutting machines, hinge boring machines, edge trimming machines, computer panel saws, and
table saws.
