Home > Industrial Equipment & Components > Refrigeration Equipment > Refrigeration Machinery > Small Glass Lid Top Glass Door Chest Freezer Display Freezer
US$ 200 - 250
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Model Number:
SD182/282
Type:
Freezers
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Small Ice Cream Freezer Ice Cream Chest Freezer Single Glass Top Door FreezerUS$ 200 - 250MOQ: 10 Pieces -
182L Small Store Supermarket Freezer 2 Baskets Curved Single Glass Door Chest Deep FreezerUS$ 200 - 250MOQ: 10 Pieces
-
Commercial 182L/282L Curved Glass Top Door Chest Display Freezer Supermarket FreezerUS$ 200 - 250MOQ: 10 Pieces
-
Small 182L 282L Supermarket Commercial Ice Cream Chest Showcase Freezer Display FreezerUS$ 200 - 250MOQ: 10 Pieces
-
182L, 282L Commercial Chest Freezer Glass Door Chest FreezerUS$ 200 - 250MOQ: 10 Pieces
Place of Origin
Shandong, China
Model Number
SD182/282
Type
Freezers
Style
Single-temperature
Certification
ISO
Capacity
182L/282L
Temperature
≤-18°C
Climate Type
ST
Refrigerant
R134a/R600a

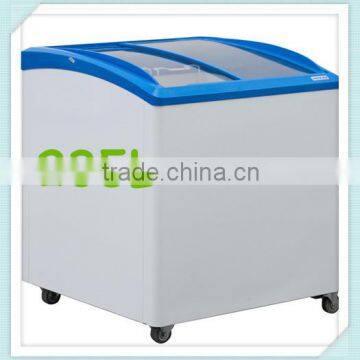

Commercial Curved Sliding Glass Door Chest freezer Ice Cream Freezer
182L and 282L ice cream chest freezer
Specification
| Model | SD182 | SD282 |
| Type | Sliding Curved Glass Lids | Sliding Curved Glass Lids |
| Gross Capacity | 182L | 282L |
| Liner Capacity | 159L | 260L |
| Net Capacity | 136L | 218L |
| Cabinet | ||
| Type | Step Bottom | Step Bottom |
| Cabinet Shell | Powder Painted Cold Steel | Powder Painted Cold Steel |
| Shell Color | White | White |
| Cabinet Top Frame | Integrated Injection Plastic ABS | Integrated Injection Plastic ABS |
| Top Frame Color | Cyan | Cyan |
| Cabinet Liner | Embossed Aluminum | Embossed Aluminum |
| Isolation Layer | PU Foam | PU Foam |
| Isolation Thickness | 70mm | 70mm |
| Blow Agent | Cyclo / Isopentane | Cyclo / Isopentane |
| Wheel | Heavey Duty Big Wheels, Diameter 65mm | Heavey Duty Big Wheels, Diameter 65mm |
| Lid | ||
| Type | Curved Glass | Curved Glass |
| Glass | Single Layer Heat Reflecting Tempered Glass | Single Layer Heat Reflecting Tempered Glass |
| Lid Frame | PVC | PVC |
| System | ||
| Refrigerant | R600a;R134a | R290;R134a |
| Compressor | Hermetic, LBP | Hermetic, LBP |
| Temperature Control | Mechanical | Mechanical |
| Condenser | Pre Fan Cooled + Tube Coil | Pre Fan Cooled + Tube Coil |
| Evaporator | Tube Coil | Tube Coil |
| Anti-condensation Loop | Yes | Yes |
| Performance | ||
| Test Condition | 38oC, 70%RH | 38oC, 70%RH |
| Test Result | <-18oC Warmest | <-18oC Warmest |
| Ambient Temperature (Climate Class) | SN N ST | SN N ST |
| Insulation Resistance | >50 Mohm | >50 Mohm |
| Earth Resistance | <0.1 Ohm | <0.1 Ohm |
| Feature | ||
| Basket | 2 Special Design, With Divider | 3 Special Design, With Divider |
| Drainage | Yes | Yes |
| Defrost Scraper | 1 / ABS | 1 / ABS |
| Indicating Lamp | Red Compressor Run | Red Compressor Run |
| Lock | Yes | Yes |
| Drainage Tray | 1 / Plastic | 1 / Plastic |
| Dimension | ||
| Product Height (wheels excl.) | 833mm | 833mm |
| Product Width | 750mm | 980mm |
| Product Depth | 650mm | 650mm |
| Packing Height | 1006mm | 1006mm |
| Packing Width | 831mm | 1061mm |
| Packing Depth | 732mm | 732mm |
| Inner Dimension | 610*510*629 | 840*510*629 |
| Load Line Level | 540mm | 540mm |
| Weight | ||
| Net Weight | 50kg | 62kg |
| Gross Weight | 61kg | 73kg |
