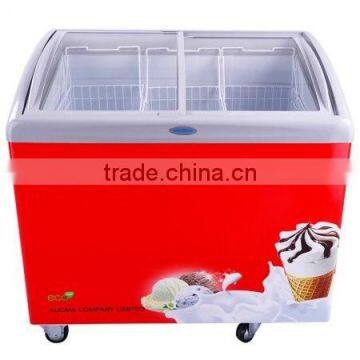

commercial 182L/282L curved glass top door chest display freezer supermarket freezer

FOB Price

USD $200 - $250 / Piece

10 Pieces(Min.Order)

Supply Ability 50000 Piece / Pieces per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Model Number:	SD182/282	Type:	Freezers
Style:	Single-temperature	Certification:	ISO	Capacity:	182L/282L
Temperature:	≤-18°C	Climate Type:	ST	Refrigerant:	R134a/R600a

Product Description

Commercial Curved Sliding Glass Door Chest freezer Ice Cream Freezer

182L and 282L ice cream chest freezer

Specification

Model	SD182	SD282
Type	Sliding Curved Glass Lids	Sliding Curved Glass Lids
Gross Capacity	182L	282L
Liner Capacity	159L	260L
Net Capacity	136L	218L
Cabinet
Type	Step Bottom	Step Bottom
Cabinet Shell	Powder Painted Cold Steel	Powder Painted Cold Steel
Shell Color	White	White
Cabinet Top Frame	Integrated Injection Plastic ABS	Integrated Injection Plastic ABS
Top Frame Color	Cyan	Cyan
Cabinet Liner	Embossed Aluminum	Embossed Aluminum
Isolation Layer	PU Foam	PU Foam
Isolation Thickness	70mm	70mm
Blow Agent	Cyclo / Isopentane	Cyclo / Isopentane
Wheel	Heavey Duty Big Wheels, Diameter 65mm	Heavey Duty Big Wheels, Diameter 65mm
Lid
Type	Curved Glass	Curved Glass
Glass	Single Layer Heat Reflecting Tempered Glass	Single Layer Heat Reflecting Tempered Glass
Lid Frame	PVC	PVC
System
Refrigerant	R600a;R134a	R290;R134a
Compressor	Hermetic, LBP	Hermetic, LBP
Temperature Control	Mechanical	Mechanical
Condenser	Pre Fan Cooled + Tube Coil	Pre Fan Cooled + Tube Coil
Evaporator	Tube Coil	Tube Coil
Anti-condensation Loop	Yes	Yes
Performance
Test Condition	38^oC, 70%RH	38^oC, 70%RH
Test Result	<-18^oC Warmest	<-18^oC Warmest
Ambient Temperature (Climate Class)	SN N ST	SN N ST
Insulation Resistance	>50 Mohm	>50 Mohm
Earth Resistance	<0.1 Ohm	<0.1 Ohm
Feature
Basket	2 Special Design, With Divider	3 Special Design, With Divider
Drainage	Yes	Yes
Defrost Scraper	1 / ABS	1 / ABS
Indicating Lamp	Red Compressor Run	Red Compressor Run
Lock	Yes	Yes
Drainage Tray	1 / Plastic	1 / Plastic
Dimension
Product Height (wheels excl.)	833mm	833mm
Product Width	750mm	980mm
Product Depth	650mm	650mm
Packing Height	1006mm	1006mm
Packing Width	831mm	1061mm
Packing Depth	732mm	732mm
Inner Dimension	610510629	840510629
Load Line Level	540mm	540mm
Weight
Net Weight	50kg	62kg
Gross Weight	61kg	73kg

Features
