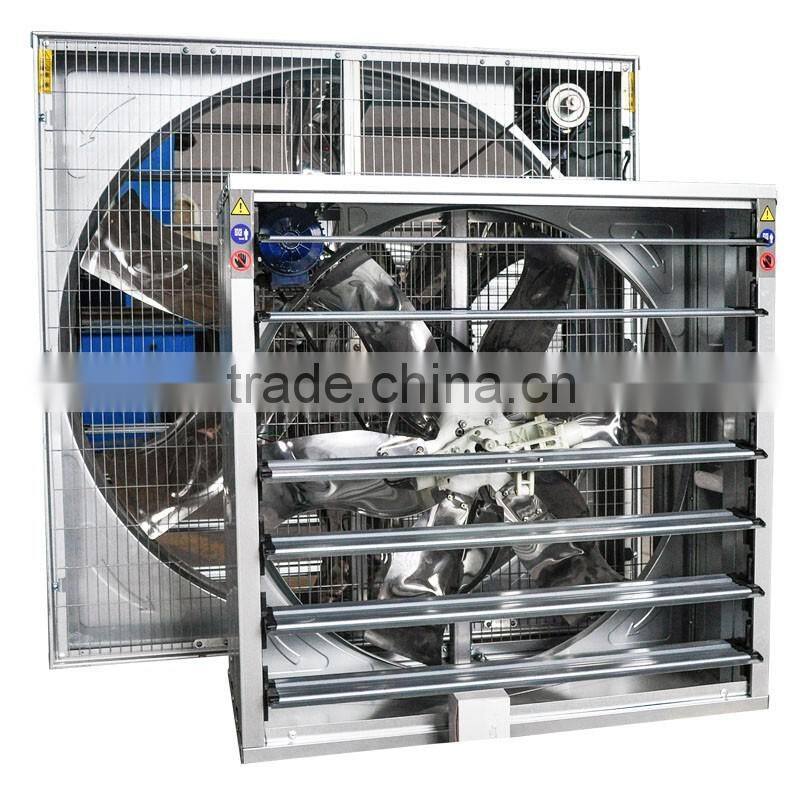

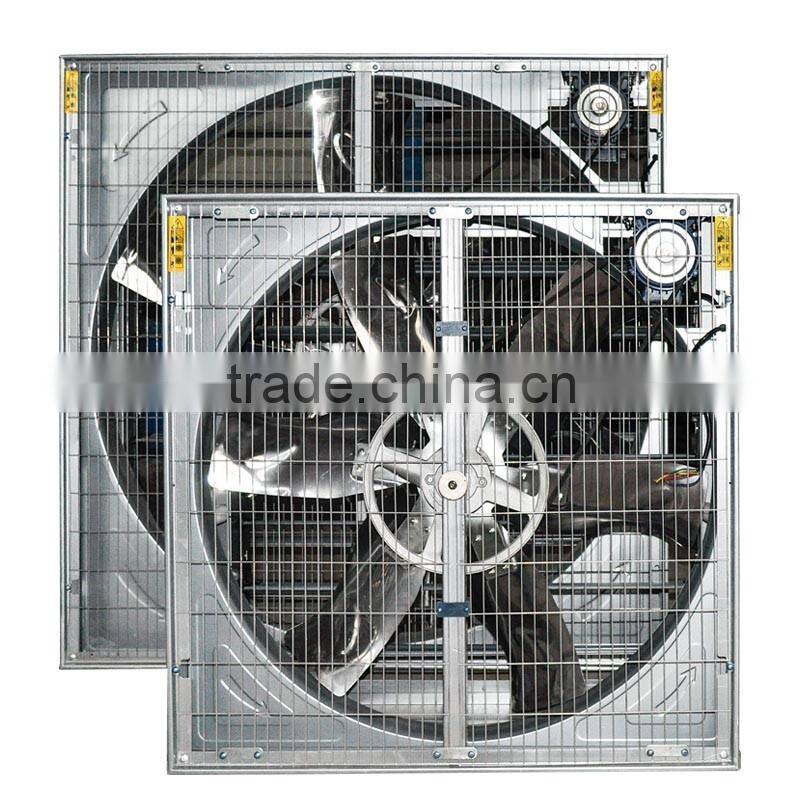

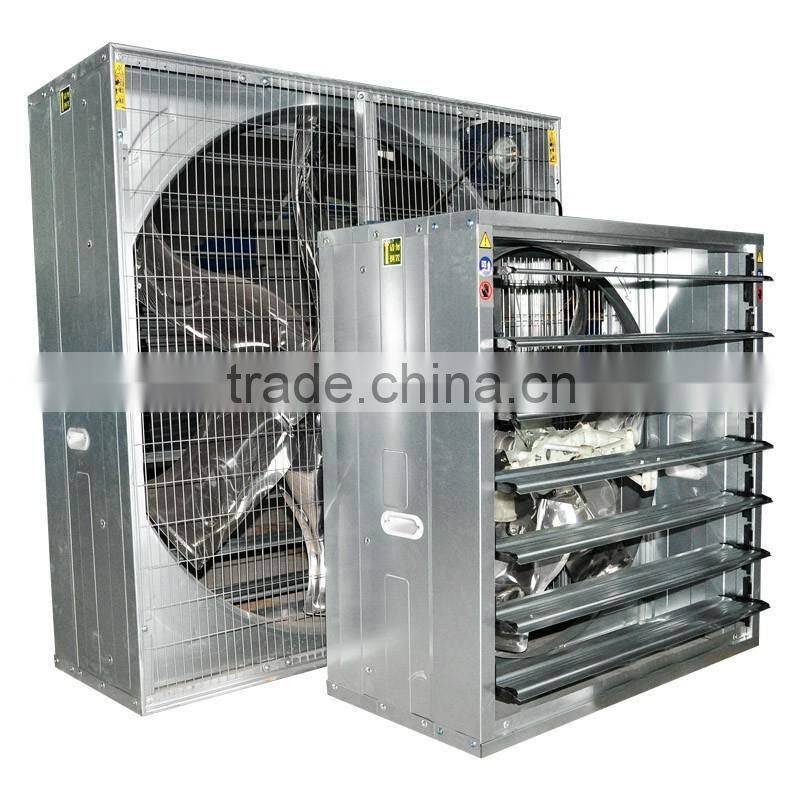

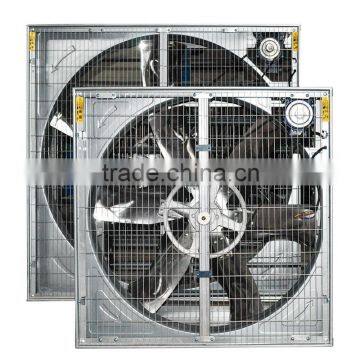

Centrifugal push-pull Exhaust Fan
Hello,dear customers!Our company is a professional high-tech environmental protection enterprises.We can offer you products with the best quality and price!

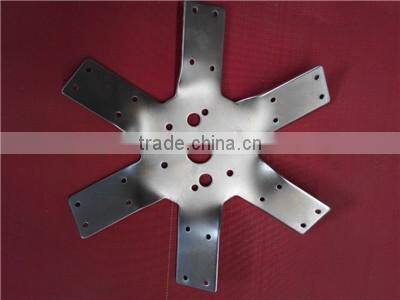

- Fan blade is made up of Krupp stainless steel by punch forming, no dust,attractive and durable.

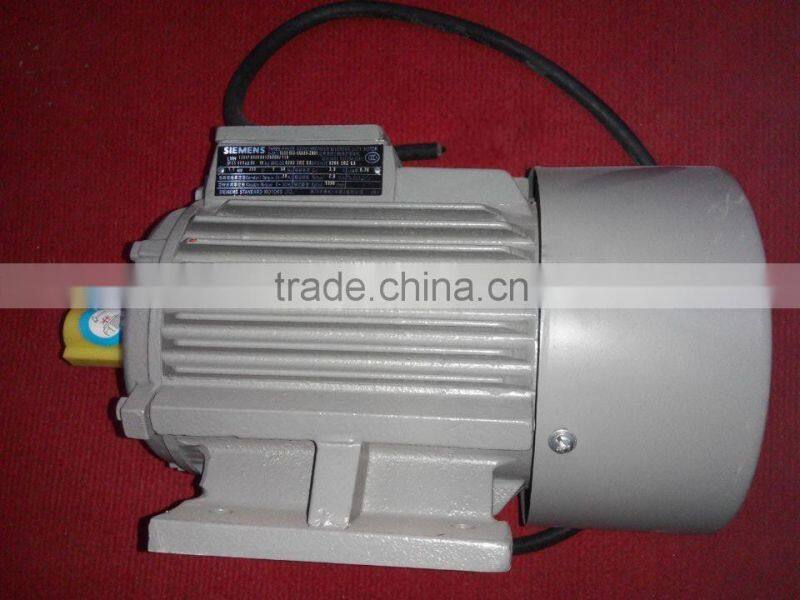

The motor is specially designed.It can power off automaticly by the phase lack protection device.
-

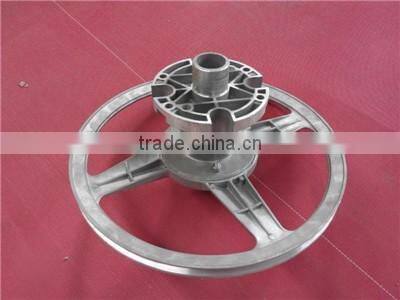

Fan belt pulley is made of high strength aluminum-magnesium alloy by die-casting which reduces the weight of blade impeller complete ,high corrosion resistance.

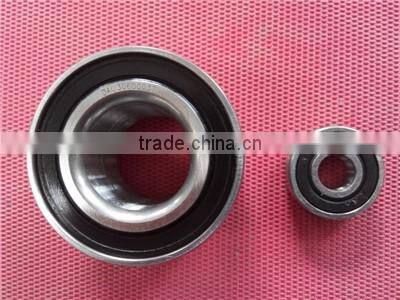

Fan bearing adopts imported double -row bearing with special waterproof design, water can’t enter.

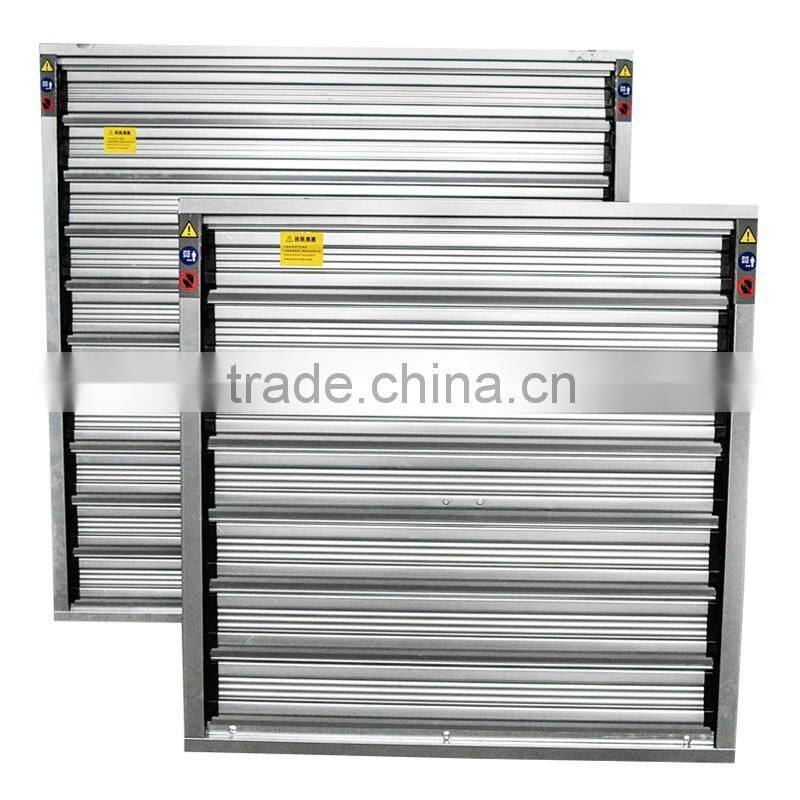

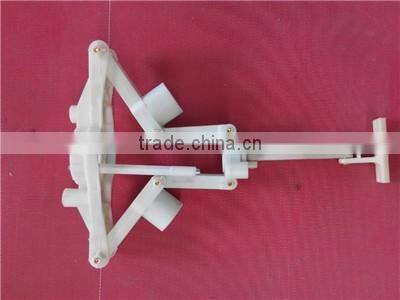

- Centrifugal system open the shutters at complete 90 degree to ensure the lowest air resistance and biggest air volume.
- As the first one adopts high quality nylon 100% to ensure the long service life.
- The fasteners of centrifugal system all are copper rivets,wear-resisting and no rust,flexible.
- Guide rod is made of 304 stainless steel,ensuring the high strength ,no rust,reduces frication.
Technical parameter
Model specifications |
Diameter biade
|
Frequency(Hz) |
Motor rotational speed rpm |
Air flow |
Import power(W) |
Nosie decibels |
Rated voltage(V) |
Height(mm) |
Width(mm) |
Thickness(mm) |
FT-910 |
910(36in) |
50 |
≥1400 |
35000 |
750 |
≤64 |
380 |
1000 |
1000 |
450 |
FT-1270 |
1270(50in) |
50 |
≥1400 |
48000 |
1100 |
≤64 |
380 |
1380 |
1380 |
450 |
FT-1400 |
1400(56in) |
50 |
≥1400 |
55800 |
1500 |
≤64 |
380 |
1530 |
1530 |
450 |
