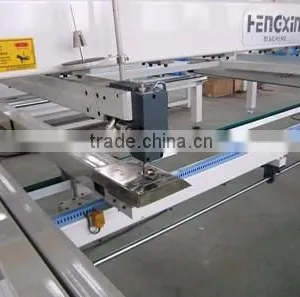

HXD-26C(long arm) computerized single needle quilting machine, mattress making machine

Specifications

1.HXD-26C computerized single needle quilting machine
2.Stepper motor
3.Stitch length:2-7mm
4.Mattress making machine

                                 HAIMEN HAOXIN MACHINERY CO., LTD

HXD-C COMPUTERIZED SINGLE NEEDLE QUILTING MACHINE

Model	Working width(m)	Machine size(m)	Max size of quilt(m)	Max design size	Speed(rpm)	Weight(T)	Power
HXD-26C	2.6	3.55*5*1.67	2.6*2.8	2.4*2.6	2200	0.8	1.5
HXD-28C	2.8	3.8*5.4*1.67	2.8*3.2	2.6*3.0	2200	0.85	1.5
HXD-30C	3	4.05*5.4*1.67	3.0*3.2	2.8*3.2	2200	0.9	1.5
HXD-34C	3.4	4.45*5.8*1.67	3.4*3.6	3.2*3.6	2200	1	1.5



Performance:

1.Needle head is controlled by one big frame.

2.Easy modification operation of needle distance and speed.

3. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.

4. the needle automatically stops at high position when the machine stops.

5. the machine stops when any broken thread is automatically detected.

6. Quilting condition and operation indication are shown in real time.

7. It automatically returns to original point.

8. It has the function of pattern tracing to make the needle position quickly.

9.It has the function of pattern browsing.

10.It has the function of work-piece and time statistics.

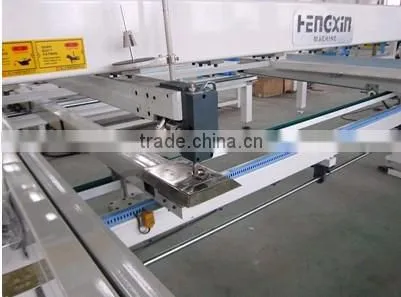

The head of HXD-C:
