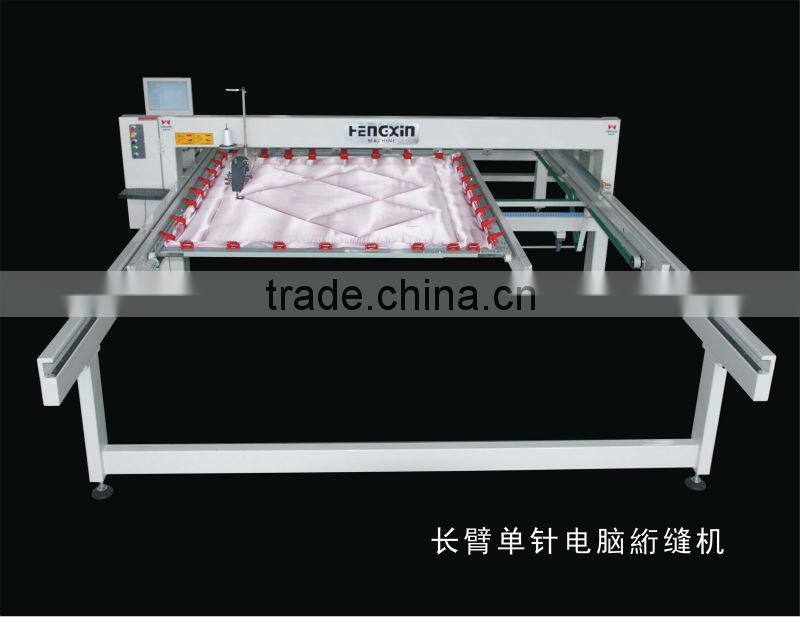

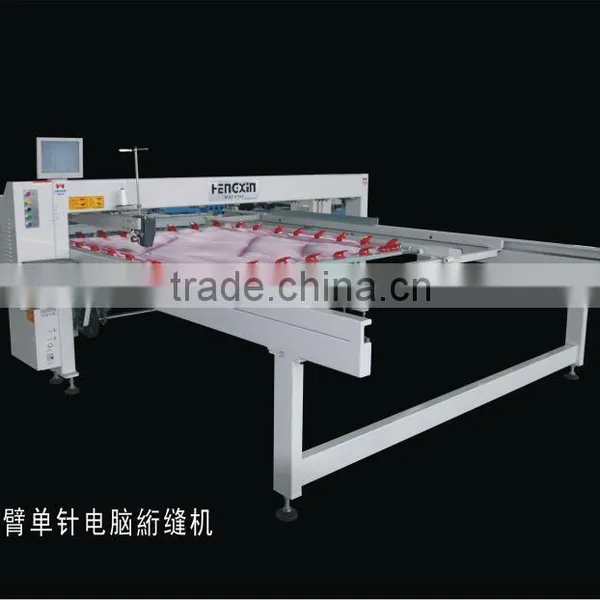

HXD Long Arm Computerized Single Needle Quilting Machine, Quilt Making Machine

HXD Long Arm Computerized Single Needle Quilting Machine, Quilt Making Machine photo-1
US$ 6,300 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HENGXIN
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name HENGXIN
Model Number HXD-C
Max Sewing Speed 2200rpm
Max Sewing Thickness 800g/m2
Number of Head Single Head
Moving Style Head Moved
Voltage 220V 50HZ, 220V 50HZ
Power(W) 1.5kw
Certification CE ISO9001:2000
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Long arm computerized single needle quilting machine
Main motor:stepper motor
Stitch length:2-7mm
Rotary hook:big rotary hook

HXD Long arm computerized single needle quilting machine, quilt making machine                                 HAIMEN HAOXIN MACHINERY CO., LTD

HXD LONG ARM COMPUTERIZED SINGLE NEEDLE QUILTING MACHINE

Model Working width(m) Machine size(m) Max size of quilt(m) Max design size Speed(rpm) Weight(T) Power
HXD-26C 2.6 3.55*5*1.67 2.6*2.8 2.4*2.6 2200 0.8 1.5
HXD-28C 2.8 3.8*5.4*1.67 2.8*3.2 2.6*3.0 2200 0.85 1.5
HXD-30C 3 4.05*5.4*1.67 3.0*3.2 2.8*3.2 2200 0.9 1.5
HXD-34C 3.4 4.45*5.8*1.67 3.4*3.6 3.2*3.6 2200 1 1.5



Performance:

1.Needle head is controlled by one big frame.

2.Easy modification operation of needle distance and speed.

3. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.

4. the needle automatically stops at high position when the machine stops.

5. the machine stops when any broken thread is automatically detected.

6. Quilting condition and operation indication are shown in real time.

7. It automatically returns to original point.

8. It has the function of pattern tracing to make the needle position quickly.

9.It has the function of pattern browsing.

10.It has the function of work-piece and time statistics.

11.Through pattern side setting up ,it can automatically enlarge or reduce patterns.

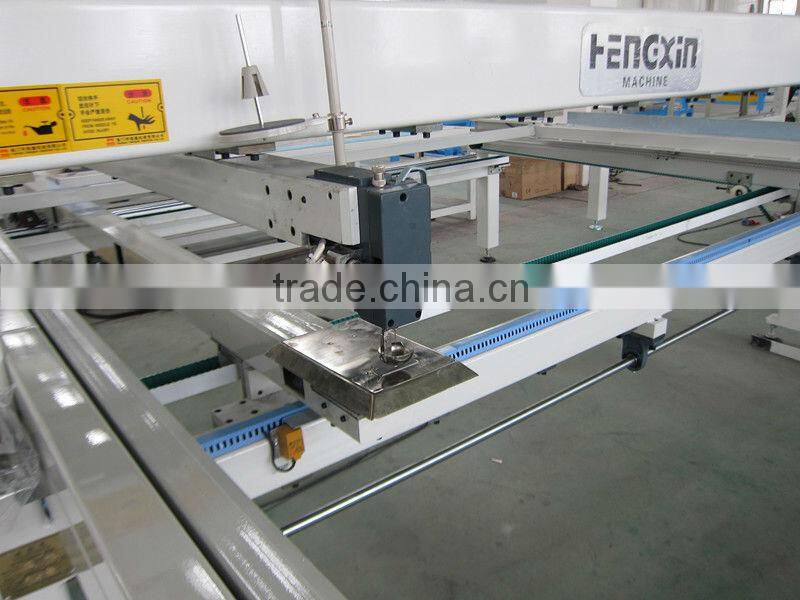

The head of HXD-C:



HXD Long arm computerized single needle quilting machine, quilt making machine



Quilts produced by the machine:

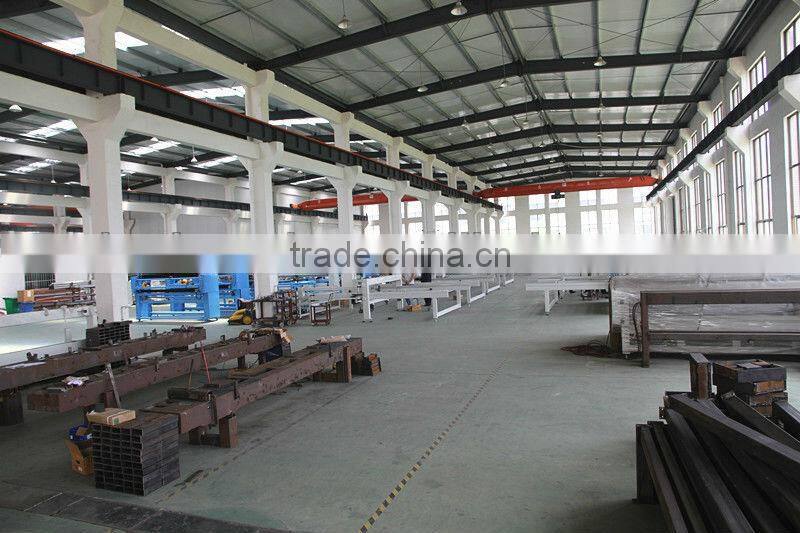

Our factory:

HXD Long arm computerized single needle quilting machine, quilt making machine
