12v 24v 36v 48v Auto MPPT Solar Charge Controller 60A
US$ 200 - 300
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Fengren
Model Number:
FR-S-60A
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V/24V/48V High Efficiency MPPT 25A Solar Charge ControllerUS$ 50 - 100MOQ: 1 Unit -
Mppt Solar Charger Controller 50A, 12V 24V 48V Automatic RecognitionUS$ 200 - 270MOQ: 1 Unit
-
China Original Design MPPT Charge Controller 12V 24V 48V Auto RecognitionUS$ 200 - 270MOQ: 1 Unit
-
MPPT Solar Charge Controller (15A-40A Type)US$ 95 - 110MOQ: 1 Unit
-
12/24V/36V/48V High Efficiency MPPT 40A-60A Solar ControllerUS$ 200 - 320MOQ: 1 Unit
Place of Origin
Hebei, China
Brand Name
Fengren
Model Number
FR-S-60A
Application
Solar System Controller
Rated Voltage
Other, Automatic Recognition, 12V/24V/48V auto work
Maximum Current
60A
40A 12v 24v 48v mppt solar charger controller price
Product Description
Features
- High Efficiency: Mppt charging mode, peak efficiency up to 99%, saving 30%-60% solar panel than traditional PWM controller.
- Automatic Recognition: Support all types of baterry,automically recognize battery system. can be used more conveniently.
- Three Charge Stages: Constant Current Charge, Constant Voltage Charge, Floating Charge, to expand the lifespan of batteries.
- RS232 Communication: Provide communication protocal, convenient for customers' integraion management.
- Certifications Approved: CE, RoHS, FCC Certifications approved, other certifications also can be provided according to Quantity of Order.
- Quality Guarantee: 2 YEARS WARRANTY, 3-10 years extended technical service.
Parameters
| Model: FR-S-60A, 12V/24V/48V-series | 40A | 50A | 60A | ||||
| Charge Mode | Maximum Power Point Tracking | ||||||
| Method | 3 stages: fast charge(MPPT),constant voltage,floating charge | ||||||
| System Type | DC12V/24V/48V | Automatic recognition | |||||
| System Voltage | 12V system | DC9V~DC15V | |||||
| 24V system | DC18V~DC30V | ||||||
| 48Vsystem | DC36V~DC60V | ||||||
| Soft Start Time | 12V/24V/48Vsystem | ≤10S | |||||
| Dynamic Response Recovery Time | 12V/24V/48Vsystem | 500us | |||||
| Conversion Efficiency | 12V/24V/48Vsystem | ≥96.5%,≤99% | |||||
| PV Modules Utilization Rate | 12V/24V/48Vsystem | ≥99% | |||||
| Input Characteristics | |||||||
| MPPT Working Voltage and Range | 12V system | DC18V~DC150V | |||||
| 24V system | DC34~DC150V | ||||||
| 48V system | DC65~DC150V | ||||||
| Low Voltage Input Protection Point | 12V system | DC16V | |||||
| 24V system | DC30V | ||||||
| 48V system | DC60V | ||||||
| Low Voltage Input Recovery Point | 12V system | DC22V | |||||
| 24V system | DC34V | ||||||
| 48V system | DC65V | ||||||
| Max DC Voltage | 12V/24V/48V system | DC160V | |||||
| Input Overvoltage Protection Point | 12V/24V/48V system | DC150 | |||||
| Input Overvoltage Recovery Point | 12V/24V/48V system | DC145V | |||||
| Max. PV Power | 12V system | 570W | 700W | 900W | |||
| 24V system | 1130W | 1400W | 1700W | ||||
| 48V system | 2270W | 2800W | 3400W | ||||
| Output Characteristics | |||||||
| Selectable Battery Types (Default type is GEL battery) | 12V/24V/48Vsystem | Sealed lead acid, vented, Gel, NiCd battery (Other types of the batteries also can be defined) |
|||||
| Constant Voltage | 12V/24V/48V system | Please check the charge voltage according to the battery type form. | |||||
| Floating Charge Voltage | 12V/24V/48V system | ||||||
| Over Charge Protection Voltage | 12V system | 14.6V | |||||
| 24V system | 29.2V | ||||||
| 48V system | 58.4V | ||||||
| Rated Output Current | 12V/24V/48V system | 40A | 50A | 60A | |||
| Current-limiting Protection | 12V/24V/48V system | 44A | 55A | 66A | |||
| Temperature Factor | 12V/24V/48V system | ±0.02%/°C | |||||
| Temperature Compensation | 12V/24V/48V system | 14.2V-(The highest temperature-25°C)*0.3 | |||||
| Output Ripples(peak) | 12V/24V/48V system | 200mV | |||||
| Output Voltage Stability Precision | 12V/24V/48V system | ≤±1.5% | |||||
| Display | |||||||
| LCD display | Input,output parameter and output power etc (check the LCD display instruction) |
||||||
| LED display | 3 LEDs indicates:Fault indicate light,charge indicate light, power source indicate light(check the LED instruction) |
||||||
| Software Control through PC(communication port) | RS232 (matching) or LAN(optional) | ||||||
| Protection | |||||||
| Input Low Voltage Protection | Check the input characteristics | ||||||
| Input Overvoltage Protection | Check the input characteristics | ||||||
| Input Polarity Reversal Protection | yes | ||||||
| Output Overvoltage Protection | Check the output characteristics | ||||||
| Output Polarity Reversal Protection | yes | ||||||
| Short-circuit Protection | Recover after eliminating the Short-circuit fault,no problem for long term Short-circuit |
||||||
| Temperature Protection | 95°C | ||||||
| Temperature protection | Above 85°C,decrease the output power,decrease 3A per degree. | ||||||

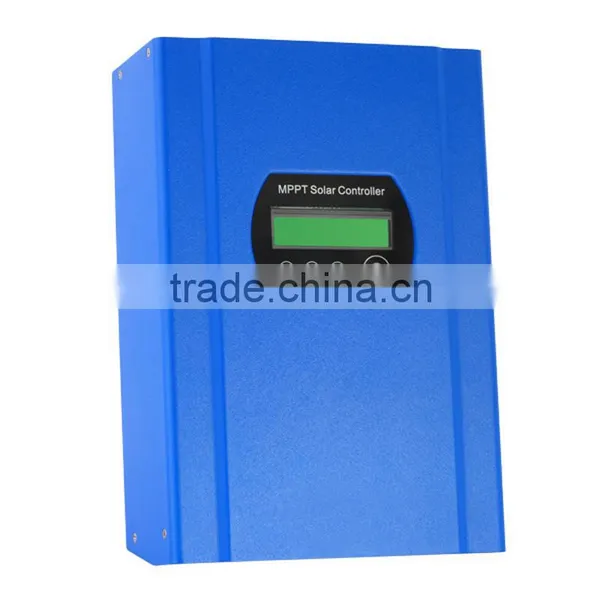

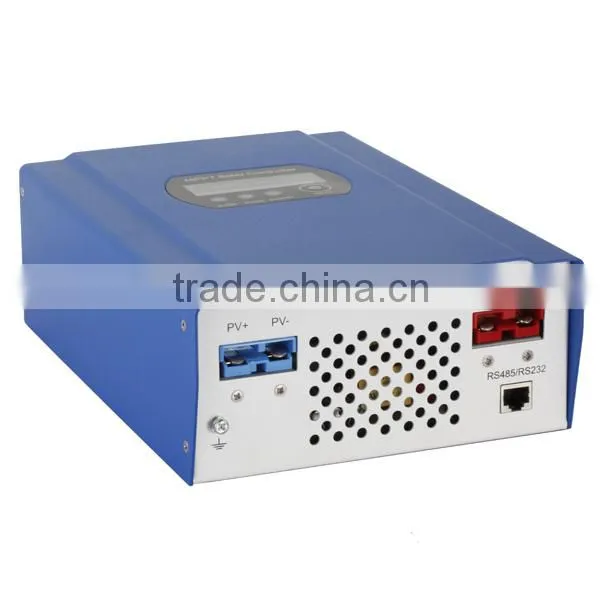

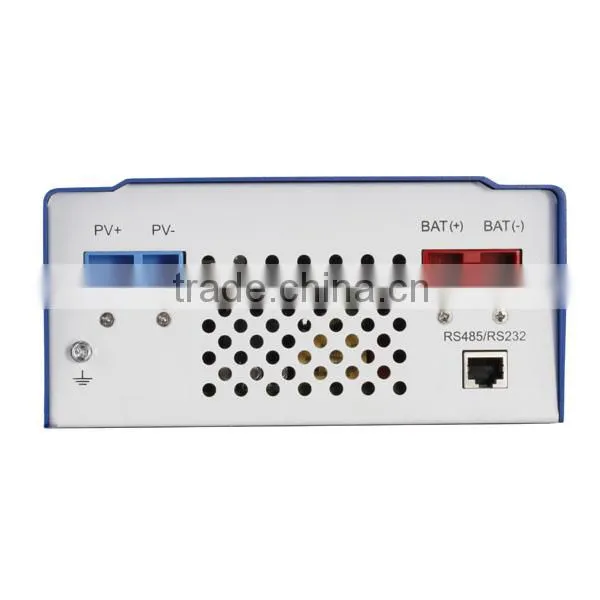

Product Overviews
Application
1. Solar off-grid energy generation system
2. Solar energy/utility power, complementary power generation system
Packaging & Shipping
Our Services
1. Reply your inquiry in 12 working hours.
2. Samples are available for Testing and Market Test. OEM is welcomed for us.
3. 2 years Warranty on our MPPT solar controllers.
4. 24 hours After-Sale Service.
