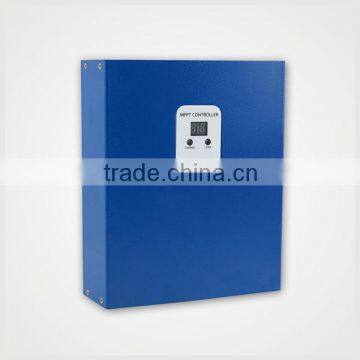

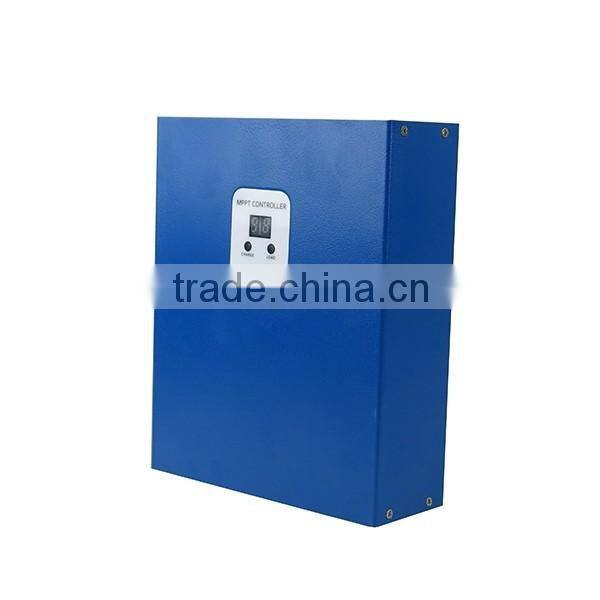

12V/24V/48V High Efficiency MPPT 25A Solar Charge Controller
Features
- High Efficiency: Mppt charging mode, peak efficiency up to 99%, saving 30%-60% solar panel than traditional PWM controller.
- Automatic Recognition: Support all types of baterry,automically recognize battery system. can be used more conveniently.
- Three Charge Stages: Constant Current Charge, Constant Voltage Charge, Floating Charge, to expand the lifespan of batteries.
- RS232 Communication: Provide communication protocal, convenient for customers' integraion management.
- Certifications Approved: CE, RoHS, FCC Certifications approved, other certifications also can be provided according to Quantity of Order.
- Quality Guarantee: 2 YEARS WARRANTY, 3-10 years extended technical service.
MPPT solar controller modes: |
25A |
||||||
Charge mode |
MPPT(maximum power point tracking) |
||||||
Charge method |
Three stages: constant current(MPPT),constant voltage,floating charge |
||||||
System type |
DC12V/24V/48V |
Automatic recognition |
|||||
System voltage |
12V system |
DC9V~DC15V |
|||||
24V system |
DC18V~DC30V |
||||||
48V system |
DC36V~DC60V |
||||||
Soft start time |
12V/24V/48V system |
≤3S |
|||||
Dynamic response recovery time |
12V/24V/48V system |
500us |
|||||
MPPT efficiency |
12V/24V/48V system |
≥96.5%,≤99% |
|||||
INPUT CHARACTERISTICS | |||||||
MPPT working voltage range |
12V system |
DC14V~DC100V |
|||||
24V system |
DC30~DC100V |
||||||
48V system |
DC60~DC100V |
||||||
|
Low input voltage protection point |
12V system |
DC14V |
|||||
24V system |
DC30V |
||||||
48V system |
DC60V |
||||||
|
Low input voltage Recovery point |
12V system |
DC18V |
|||||
24V system |
DC34V |
||||||
48V system |
DC65V |
||||||
High input voltage protection point |
12V/24V/48V system |
DC110 |
|||||
High input voltage recovery point |
12V/24V/48V system |
DC100V |
|||||
Maximum PV power |
12V system (W) |
355 |
|||||
24V system (W) |
710 |
||||||
48V system (W) |
1420 |
||||||
Output Discharge Characteristics | |||||||
Output voltage |
Base on battery voltage |
||||||
|
Low voltage output Protection point |
Default 10.5V; Recovery 11V; It can be adjustable. |
||||||
Rated output Current |
30A |
||||||
The output control |
On mode, Off mode, PV voltage control mode |
||||||
Output control set mode |

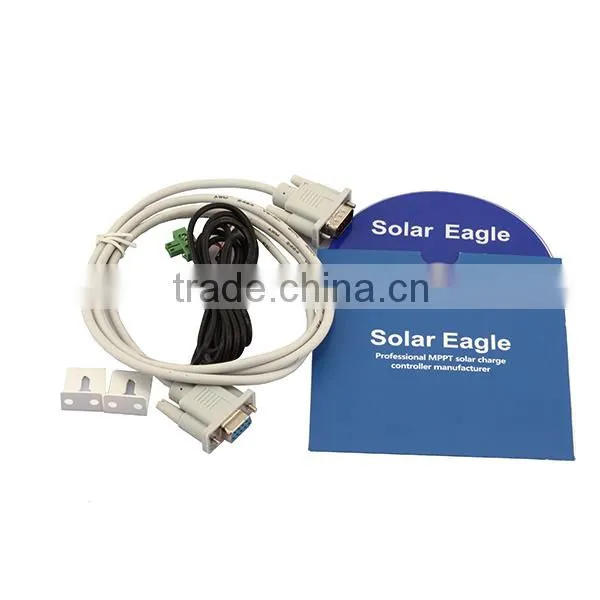

Controller button or PC software |
||||||
Protection | |||||||
Low input voltage protection |
Check the input characteristics |
||||||
High input voltage protection |
Check the input characteristics |
||||||
Charge overpower protection |
yes |
||||||
Discharge low voltage protection |
yes |
||||||
Discharge high current protection |
yes |
||||||
Temperature protection |
yes |
||||||
Environment | |||||||
Humidity |
0~90%RH ( no condense) |
||||||
Altitude |
0~3000m |
||||||
Operating Temperature |
-20℃ ~ +50℃ |
||||||
Storage Temperature |
-40℃ ~ +75℃ |
||||||
Atmospheric Pressure |
70~106kPa |
||||||

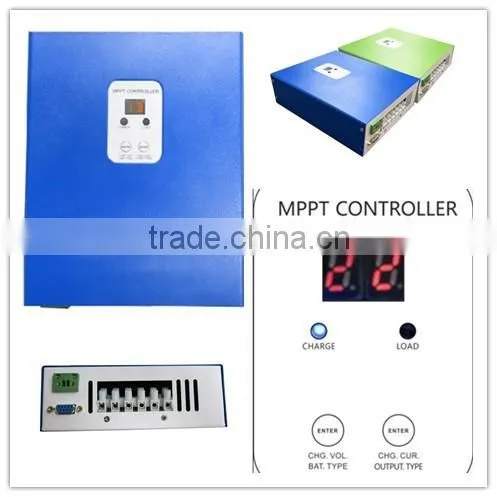

Display | |||||||
LED digital tube display |
Battery voltage, Charge current |
||||||
LED light display |
Charging indicator light, LOAD indicator light |
||||||

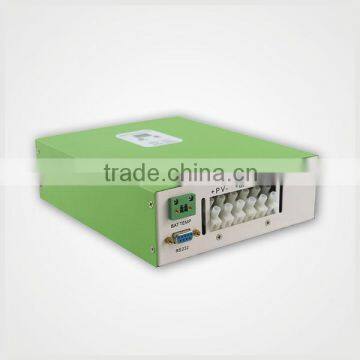

PC(communication port) |
RS232 |
||||||
Other Parameters | |||||||
Noise |
≤40dB |
||||||
Thermal heat-dissipatingmethod |
Itself cooling |
Fancooling |
|||||
Components |
Imported material With EU standards. |
||||||
Certification |
CEFCCRoHS |
||||||
Physical | |||||||
Measurement D x W x H(mm) |
205*168*60 |
||||||
package size D x W x H(mm) |
265*196*110 |
||||||
N.G(KG) |
1.8kg |
||||||
G.N(KG) |
2kg |
||||||
Mechanical Protection |
IP25 |
||||||

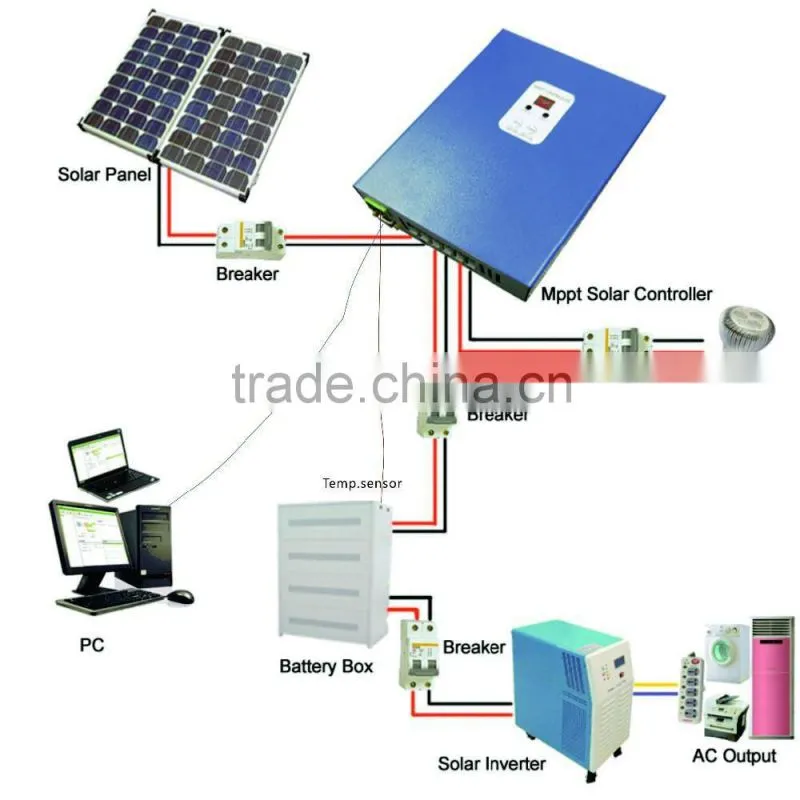

Application
1. Solar off-grid energy generation system
2. Solar energy/utility power, complementary power generation system
1. Reply your inquiry in 12 working hours.
2. Samples are available for Testing and Market Test. OEM is welcomed for us.
3. 2 years Warranty on our MPPT solar controllers.
4. 24 hours After-Sale Service.
