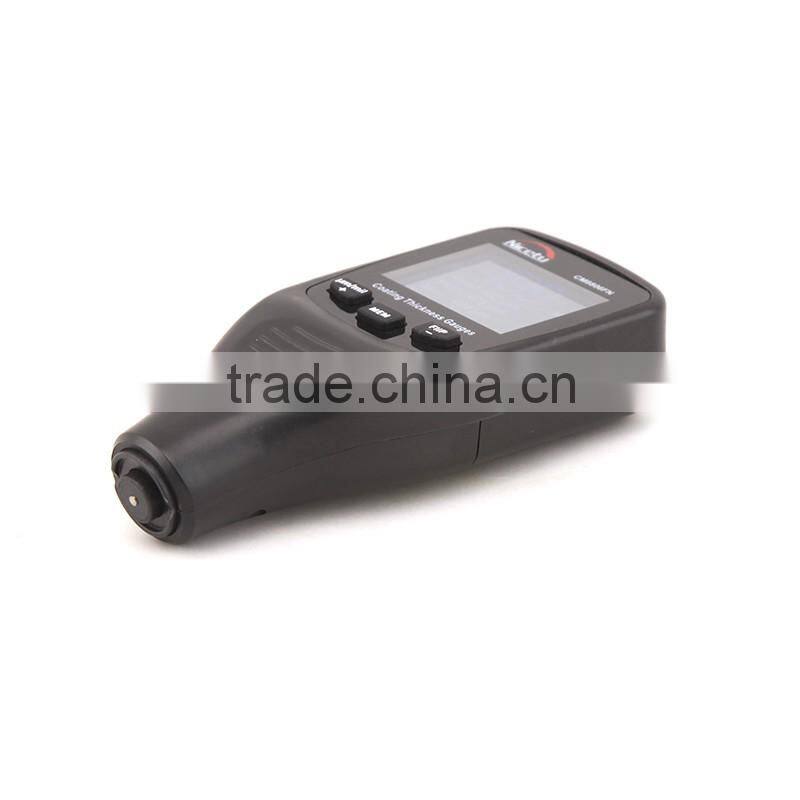

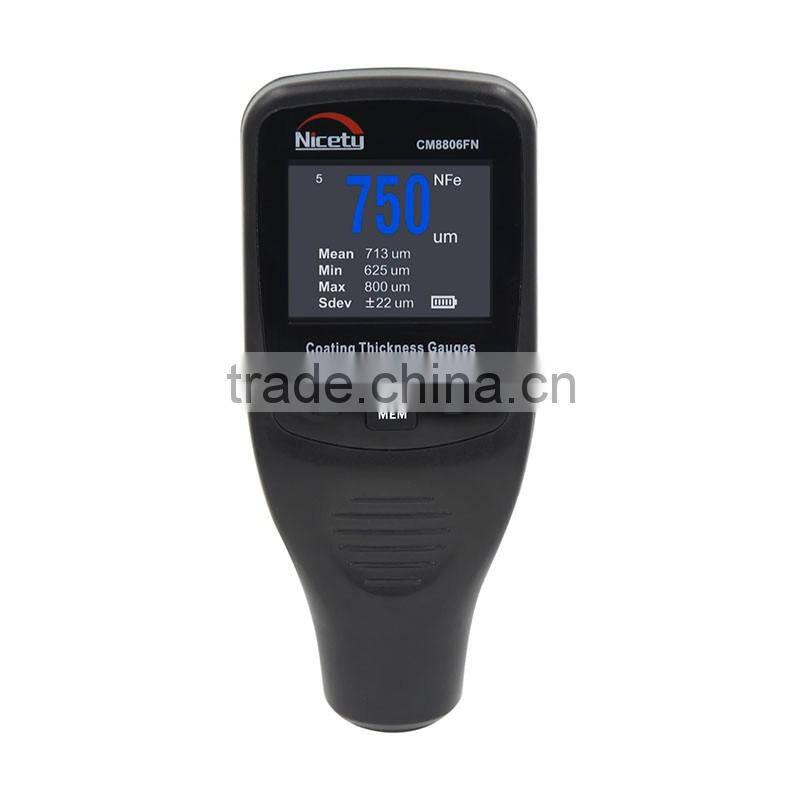

CM8806FN Coating Thickness Gauge Meter Fe/NFe 2 in One

Coating thickness gauge meter Fe/NFe 2 in One CM8806FN China supplier

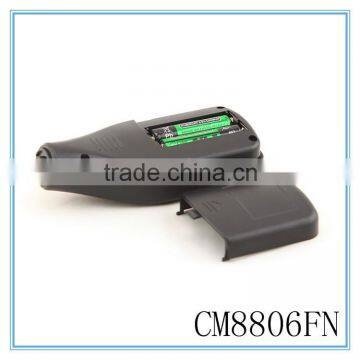

Battery: 1.5Vx2 AAA size

Dimension: 119x52x28mm

Weight: 0.56kg

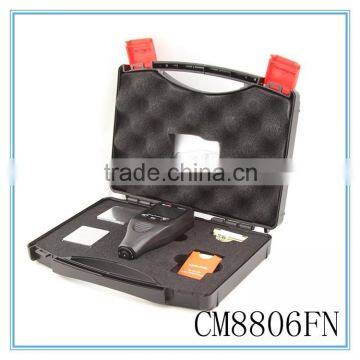

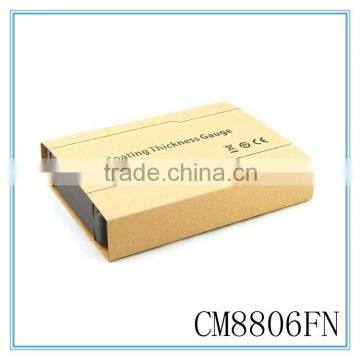

Packing: carrying case, substrate blocks (steel x 1pc, Aluminumx1pc),

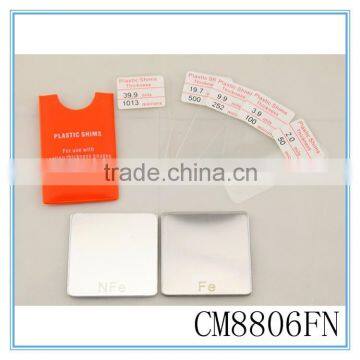

Calibration foils x 1set, English manual

Fe type gauge is good for the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphide layer, copper/aluminum and some alloy tiles papers and others.

NFe type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc. ), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.

This handheld car paint thickness gauge meter CM8806FN is used to quickly and accurately measure thickness of coating or plating on metal surface. It not only indicates thickness of coating or plating but also automatically identifies which base material is used (Fe means magnetic metals such as iron & steel; NFe means non-magnetic metals, such as aluminum, alloy & non-magnetic stainless steel). It is applicable to measure various coating or plating, including non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base materials such as iron and steel, non-ferrous metal plating such as nickel & chromium, anticorrosive coating in chemical and petroleum industry, non-conductive painting, plastic coating and anodic oxide film on non-magnetic conductive devices, such as on aircraft or spacecraft, vehicle, home appliances, al-alloy door & window as well as other aluminum ware, and conductive coating or plating as long as the conductivity of coating or plating is at least 3 times less than that of base materials (such as copper with chromium plating).
