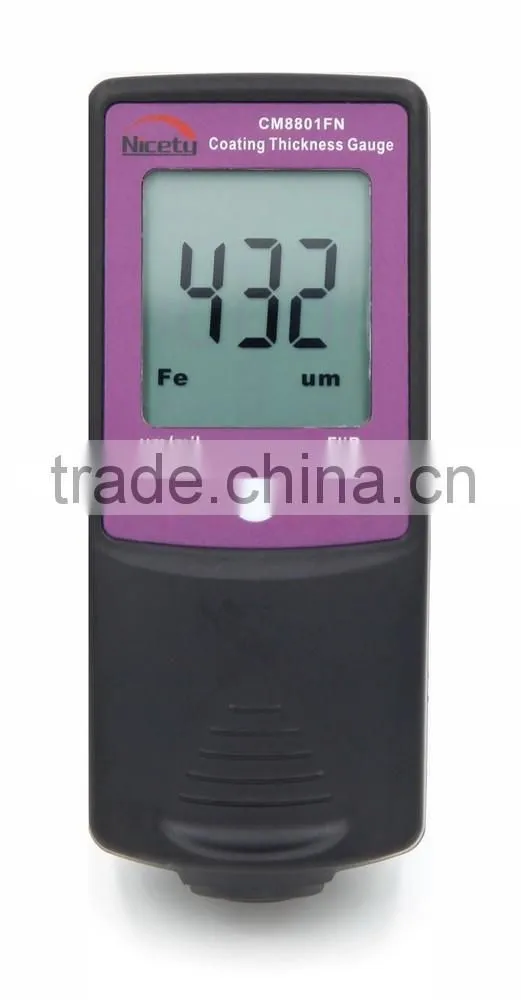

F/NF Probes Automotive Coating thickness Gauge CM8801FN
The ultimate Paint Thickness Gage helps you escalate your business to the next level. Show everyone how professional you really are.
This lightweight and versatile unit automatically measures paint and coating thicknesses.
Ideal for Automobile...
Dealerships, Professional Car Buyers, Appraisers, Inspectors, Painters, Detailers, Body Shops, and more...
Uses:
Identify repainted panels and all previous refinish work
Buff with precision and confidence. Locate where extra work is needed
Improve finish consistency and quality
Cut expensive paint materials and costs
Show customers where more paint stripping or re-clearcoating is needed
Determine depth of acid rain damage
Feature:
Automatically recognizes the material and takes an accurate measurement.
Automatic ON/OFF switching.
Automatic Substrate Recognition.
Factory calibrated and ready for use. Measures precisely right out of the box.
Simple operation: No user calibration required.
Manual Calibration is now possible for specific applications.
ZERO set feature for non-standard surfaces.
RESET to default restore factory settings feature when no zero reference is available.
FLIP LCD Display for easy viewing in any position.
Stores last 10 measurements in a Memory (Measure now, compare all the results later).
Fast and accurate measurements with sound tone confirmation.
Mils / Microns select-able. Displays readings in Metric (μm) or Imperial units (mil).
Pocket-sized and lightweight for comfortable one hand operation.
Supplied with a set of plastic test shims.
Works with a single AAA battery.
The F type probe for measuring the thickness of non-magnetic coating on Ferromagnetic base (e. G. Iron, nickel and more), like plating layer, lacquer layer, porcelain enamel layer, phosphate layer, copper/aluminum and some ally tiles papers and others.
The NF type probe for measuring the thickness of any non-magnetic coating on Non-Ferromagnetic metal base (aluminum, brass, stainless steel, etc.), like anodizing, varnish, paint, enamel, plastic coating, power layers, and others.
The F/NF 2 in 1 type probe Measures coatings on ANY METAL including steel, aluminum (including Anodizing on Aluminum), brass, etc.
Fe-Probe |
Measurement on Steel or Iron |
|
NFe-Probe |
Measurements on Aluminum (or Any Other Non-Ferrous Metal) |
|
Range |
0 - 1250um or 0 - 50mils |
|
Resolution |
1um or 0.1mils |
|
Accuracy |
0.1 mils + 3% or 2um+ 3% of readings |
|
Temperature range |
Storage |
-10℃to 60℃ (14℉ to 140℉) |
Operation |
0℃ to 60℃ (32℉ to 140℉) |
|
Power Supply |
1 x 1.5V AAA Alkaline |
|
Dimensions |
110 mm x 45 mm x 23 mm,4.2" x 1.7" x 0.9" in |
|
Weight |
70 g (2.7 oz.)not Including batteries |
|

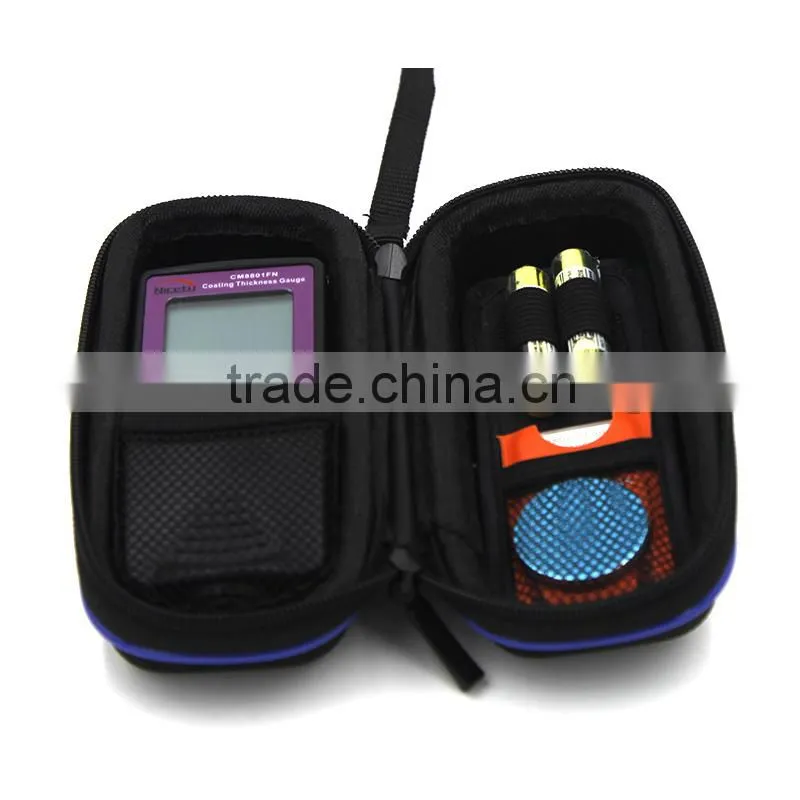

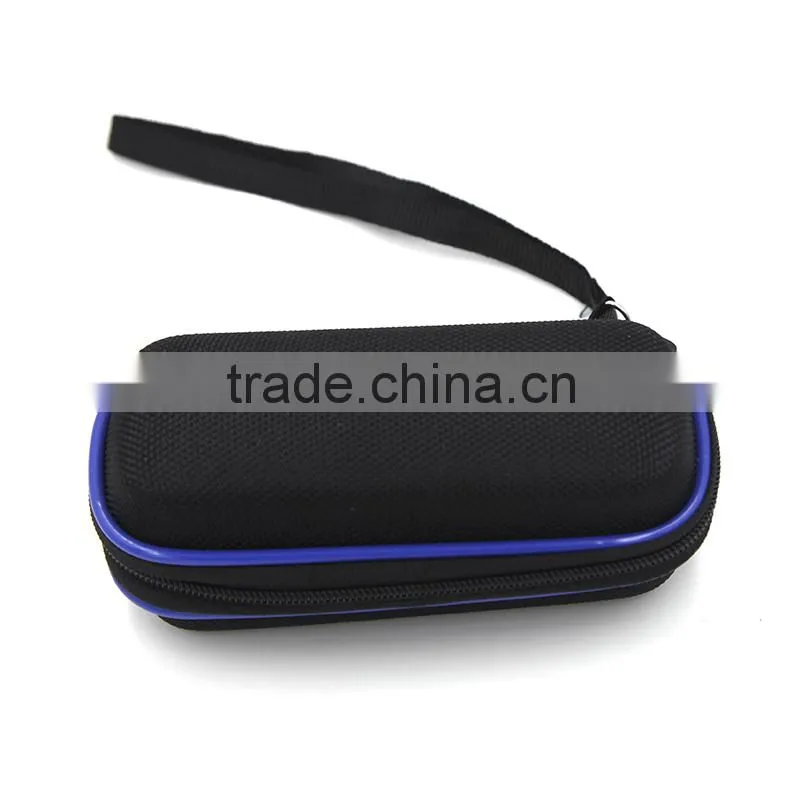

Carrying case

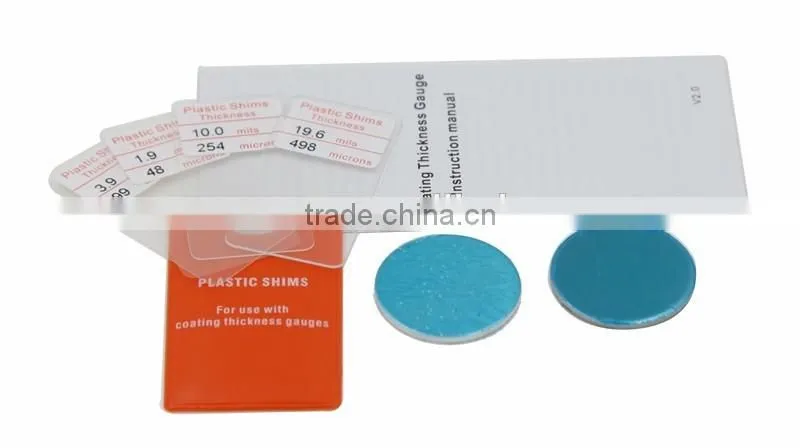

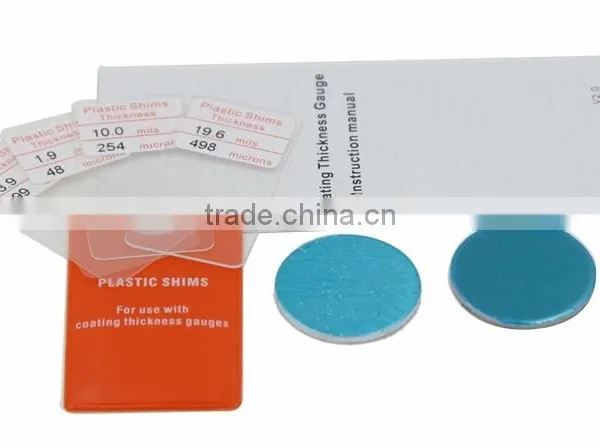

Substrate blocks (steel x 1pc, Aluminumx1pc)
Calibration foils (50μm,100μm,250μm,500μm)
English manual
