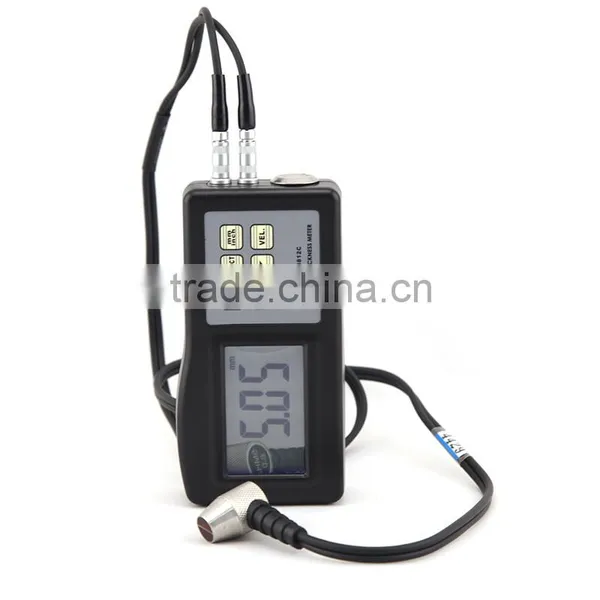

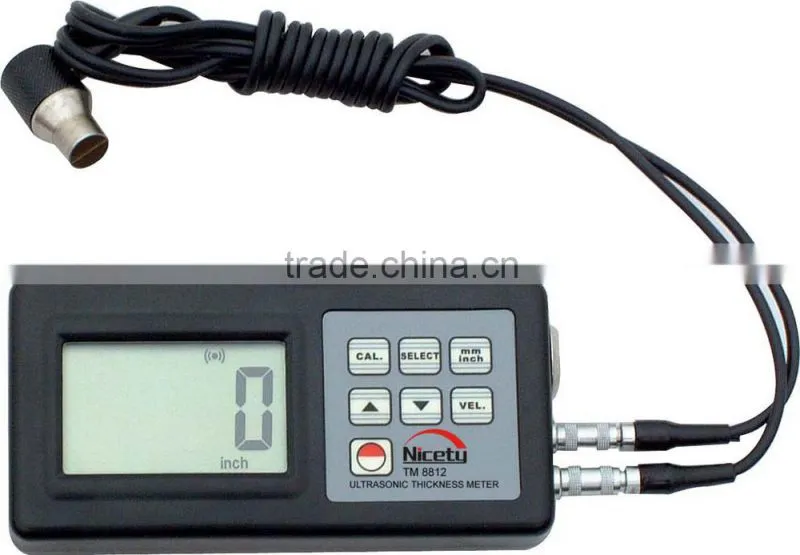

TM-8812 PROTABLE ULTRASONIC THICKNESS GAUGE for METAL GLASS CERAMIC PLASTIC
Applications:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil orage tanks,etc.in industries of petroleum, shipbuilding,power station,and machine manufacturing
Features:
* Using the latest high performance and low power consumption microprocessor technology.
* Automatic memory material code and sound velocity value, convenient to use.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “Bluetooth ™ data output” choice.
Details:
| Display | 4 Digit, 10 mm LCD |
| Operating Principle | Ultrasonic |
| Measuring Range (metric / Imperial) | 1.0~200 mm / 0.04~8 inch |
| Battery Indication | Low Battery Indication |
| Sound Velocity | 1000~9000 m/s |
| Lower Limit Steel Pipes | Φ15 x 2.0 mm Φ20 x 3.0 mm determined by transducer |
| Calibration Block | Included |
| Resolution | 0.1 mm |
| Accuracy | ± (0.5%n + 0.1) |
| Automatic memory material code and the value of sound velocity | |
| Power off | Auto Power off & Manual Power Off |
| Operating Conditions | Temperature: 0~40 °C, Humidity: < 85 %RH |
| Power Supply | 4 x 1.5 V AAA (UM-4) Battery |
| Dimensions | 120 x 62 x 30 mm |
| Weight | 164 g (Not Including Batteries) |

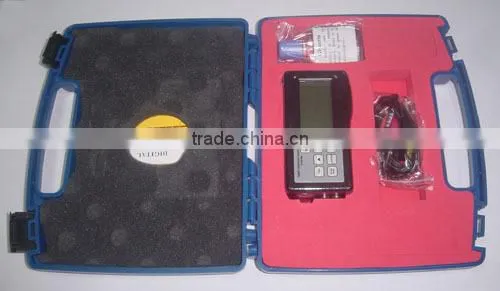

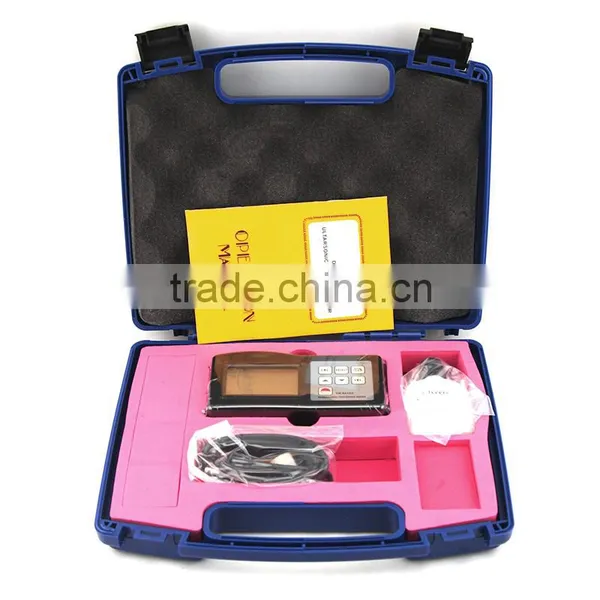

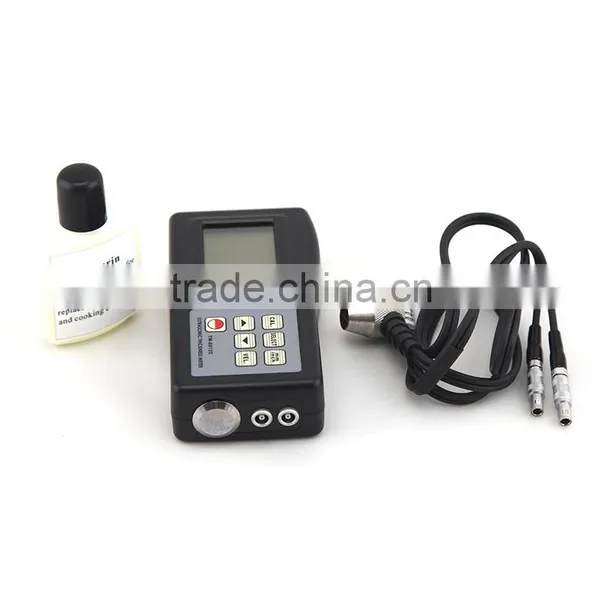

Accessories:
Standard Accessories:
1. Main Unit
2. 5MΦ8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M Φ6 mm thin Material Probe : Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M Φ12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature) Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
4. USB, RS-232C data cable with software
5. Bluetooth data output with software
