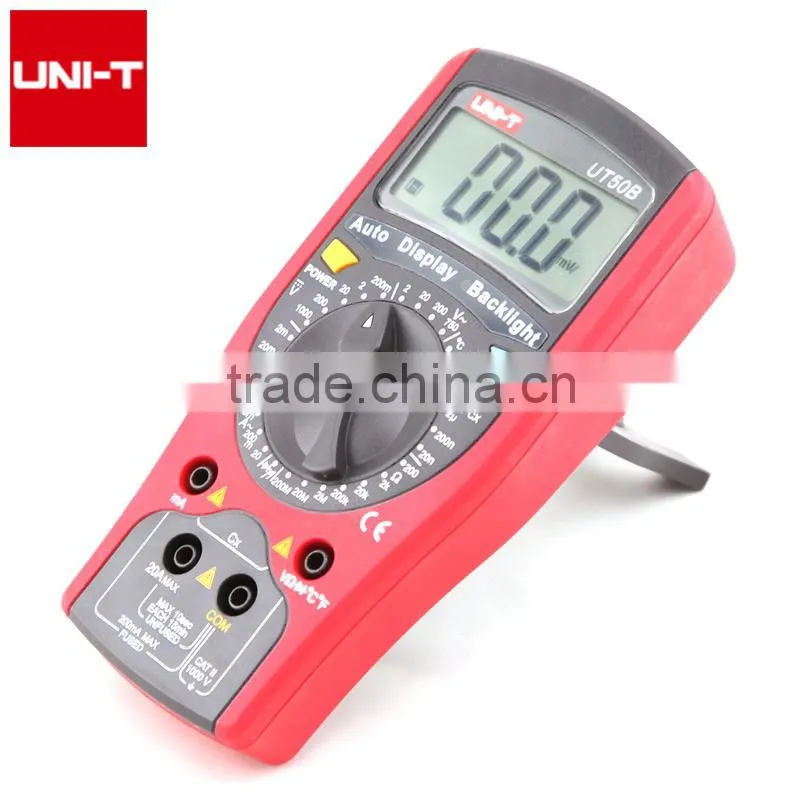

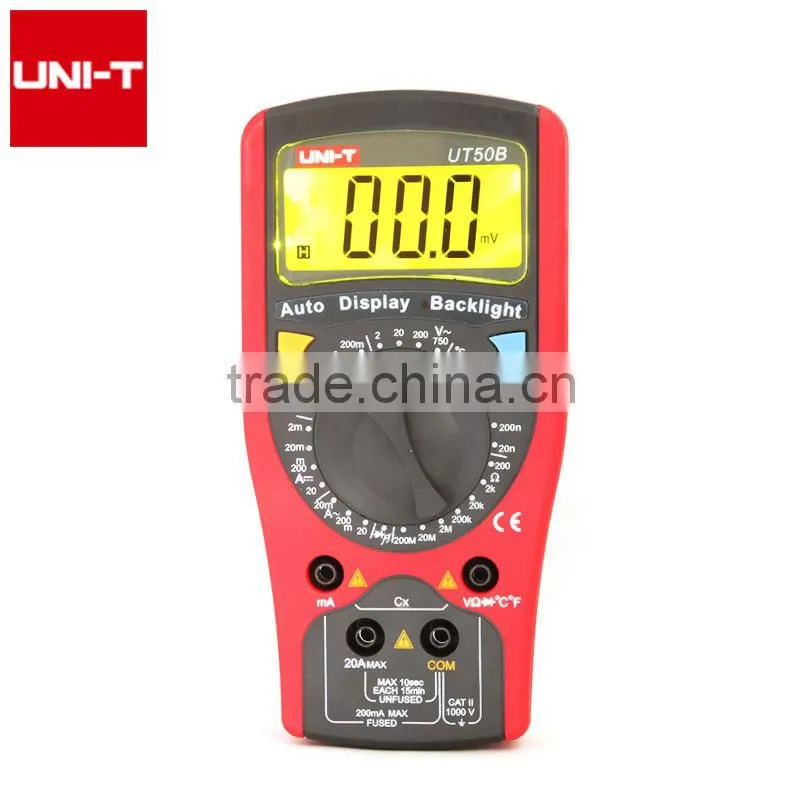

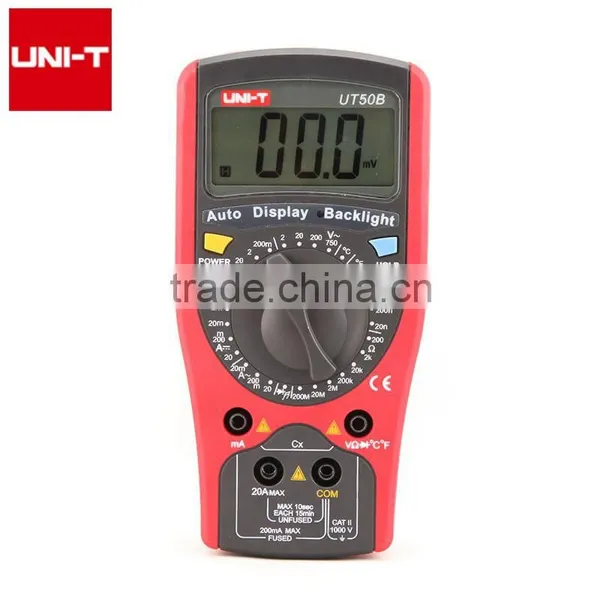

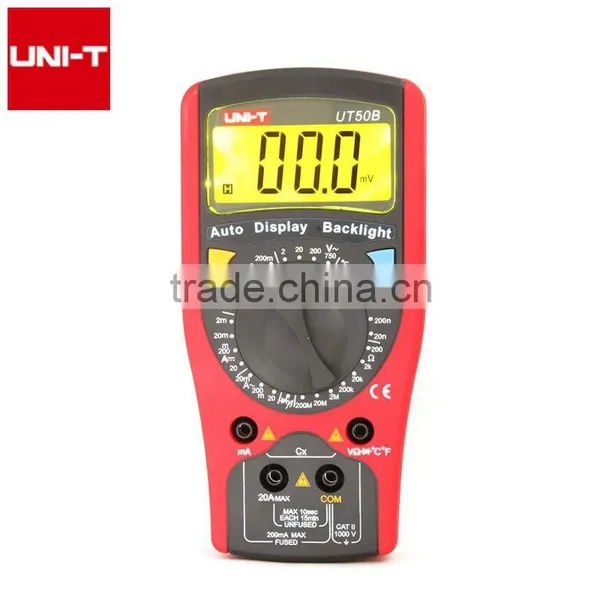

Proffesional Manual Range 31/2 2000 Counts China Digital Multimeter

Name: Proffesional Manual Range 31/2 2000 Counts China Digital Multimeter
Brand: UNI-T
SKU: 126432723

US$ 18.99 - 21.27 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT50B

Shenzhen Starmeter Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT50B

Measuring Current Range 2mA/20mA/200mA/20A

Measuring Voltage Range 200mV/2V/20V/200V/1000V

Measuring Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ

Measuring Capacitance Range 20nF/200nF/2uF/100uF

Operating Temperature -40℃~1000℃,-40F~1832F

Dimensions 165X80X38.3mm

Proffesional Manual Range 31/2 2000 Counts china digital multimeter

Specifications	Range	Best Accuracy
Model		UT50B
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+1)
AC Voltage (V)	200mV/2V/20V/200V/750V	±(0.8%+3)
DC Current (A)	20mA/2mA/200mA/20A	±(0.8%+1)
AC Current (A)	20mA/200mA/20A	±(1%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ	±(0.8%+1)
Capacitance (F)	20nF/200nF/2μF/100μF	±(4%+3)
Temperature (°F)	-40oF~1832oF	±(1%+4)
Temperature (°C)	-40℃~1000℃	±(1%+3)
Features
Full Icon Display		√
Diode		√
Continuity Buzzer		√
Low Battery Display		√
Input Impedance for DC Voltage Measurement	10MΩ	√
Data Hold		√
Display Backlight	Auto	√
Max. Display	1999	√
Auto Power Off		√
General Characteristic
Power	9V Battery (6F22)
LCD Size	95mm×25mm
Product Colour	Red and Grey
Product Net Weight	275g
Product Size	165mm×80mm×38.3mm

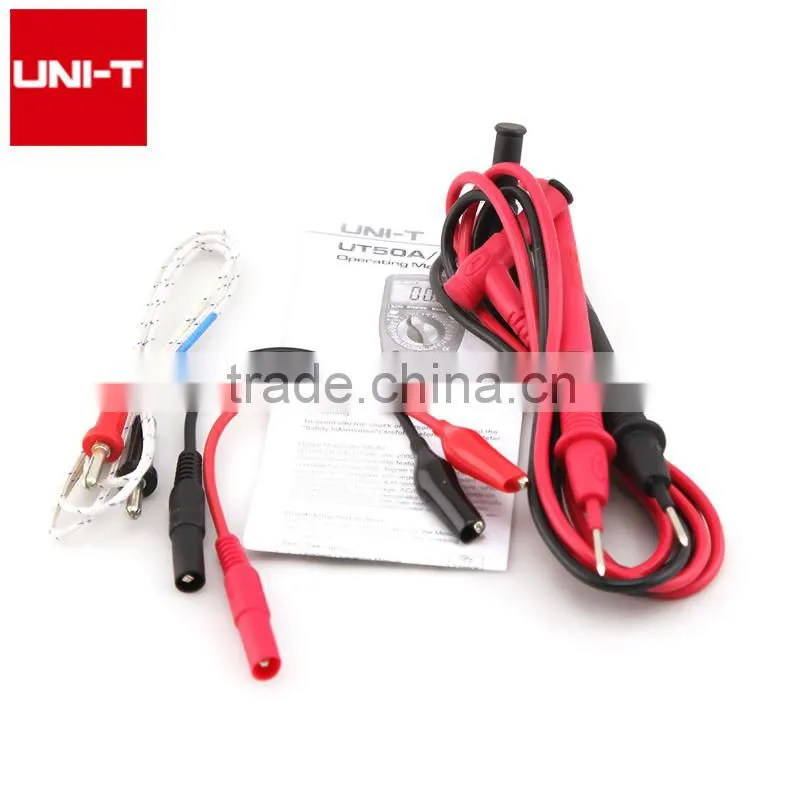

Standard Accessories	Test Lead, Battery, Point Contact Temperature Probe, Test Clip

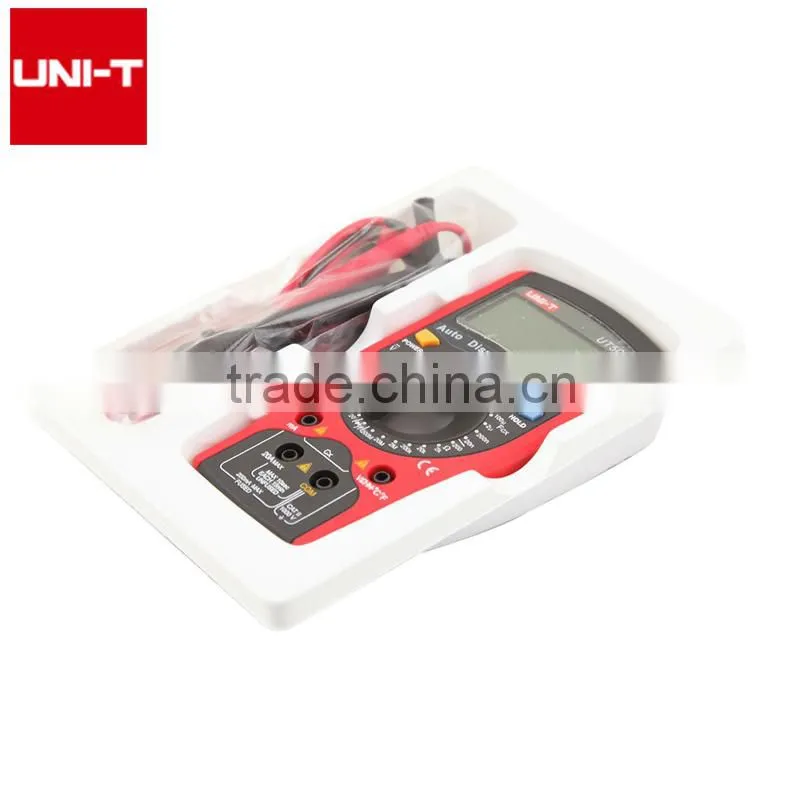

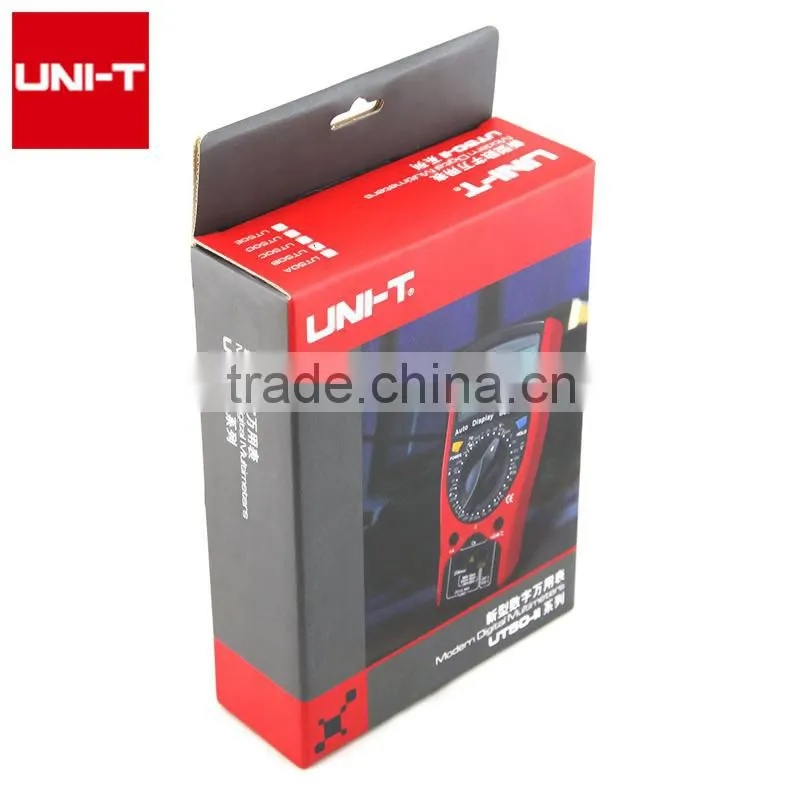

Standard Individual Packing	Gift Box,English Manual
Standard Quantity Per Carton	40 Pcs
Standard Carton Measurement	588mm×408mm×326mm( 0.085 CBM Per Standard Carton)
Standard Carton Gross Weight	20.5kg
Optional Accessories*	Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
