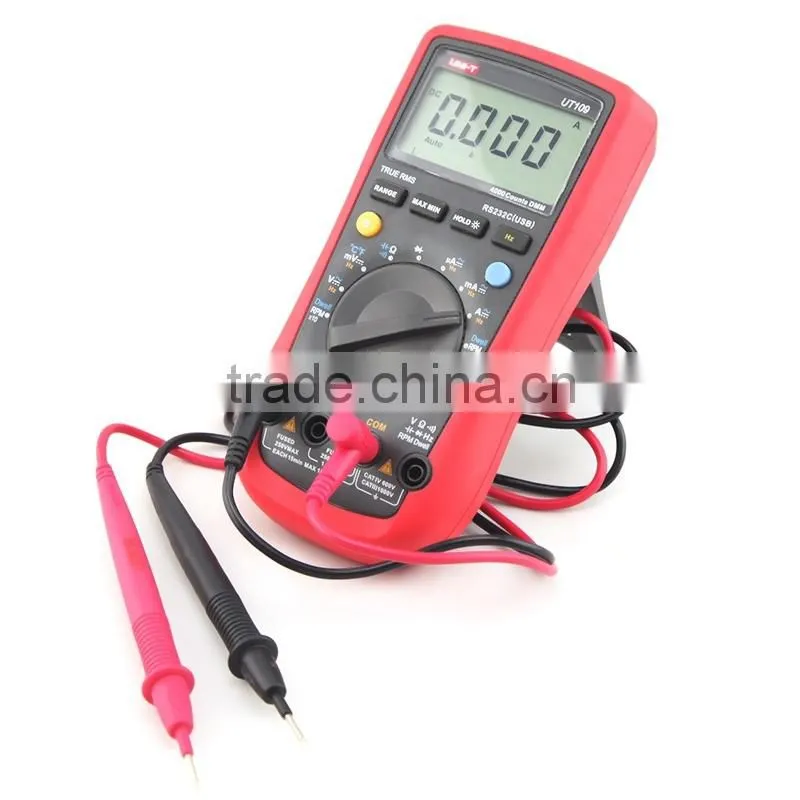

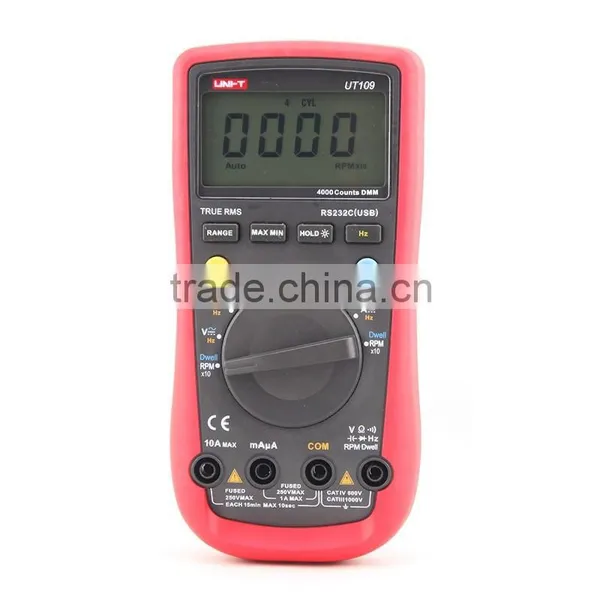

Digital Car Gauges/Auto Digital Multimeter

Name: Digital Car Gauges/Auto Digital Multimeter
Brand: UNI-T
SKU: 126432711

US$ 40.44 - 43.68 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT109

Shenzhen Starmeter Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT109

Measuring Current Range 400μA/4000μA/40mA/400mA/4A/10A

Measuring Voltage Range 40mV/400mV/4V/40V/400V/1000V

Measuring Resistance Range 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ

Measuring Capacitance Range 10nF/100nF/1000nF/10μF/100μF

Operating Temperature -40 to 537C , -40 to 998 F

Dimensions 180X87X47mm

digital car gauges/Auto Digital Multimeter

Specifications	Range	Best Accuracy
Model		UT109
DC Voltage (V)	4V/40V/400V/1000V	±(0.5%+3)
AC Voltage (V)	40mV/400mV/4V/40V/400V/1000V	±(1%+3)
DC Current (A)	400μA/4000μA/40mA/400mA/4A/10A	±(1%+2)
AC Current (A)	400μA/4000μA/40mA/400mA/4A/10A	±(1.2%+5)
Resistance (Ω)	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ	±(1%+5)
Capacitance (F)	10nF/100nF/1000nF/10μF/100μF	±(3%+5)
Frequency (Hz)	10Hz ~ 1MHz	±(0.1%+4)
Temperature (°C)	-40°C ~ 537°C	±(1%+10)
Temperature (°F)	-40°F~998°F	±(1%+18)
Features
Display Count		3999
Auto Range		√
Diode		√
Auto Power Off		√
Continuity Buzzer		√
Low Battery Indication		√
Data Hold		√
MAX/MIN		√

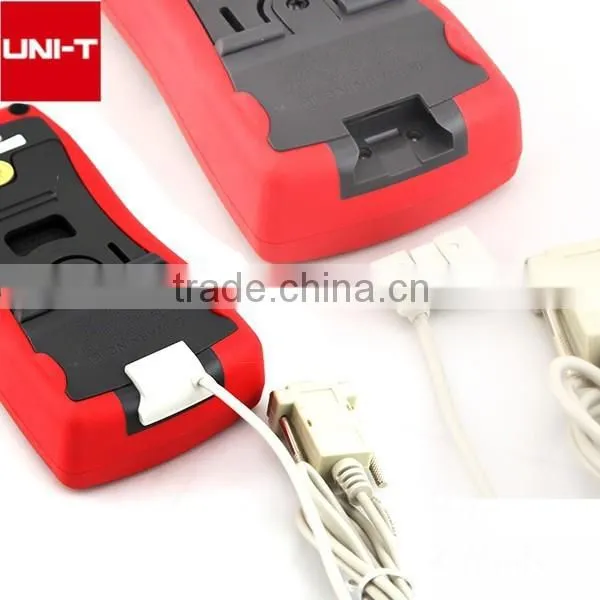

USB Interface	RS-232	√
LCD Backlight		√
Input Protection		√
Input Impedance for DCV	Around 10MΩ	√
Dwell	4CYL/6CYL/8CYL	±(3%+5)
Tach	4CYL/6CYL/8CYL	±(3%+5)
General Characteristic
Power	9V Battery(6F22)
LCD Size	65mm X 43mm
Product Color	Red and Grey
Product Net Weight	370g
Product Size	180mm X 87mm X 47mm

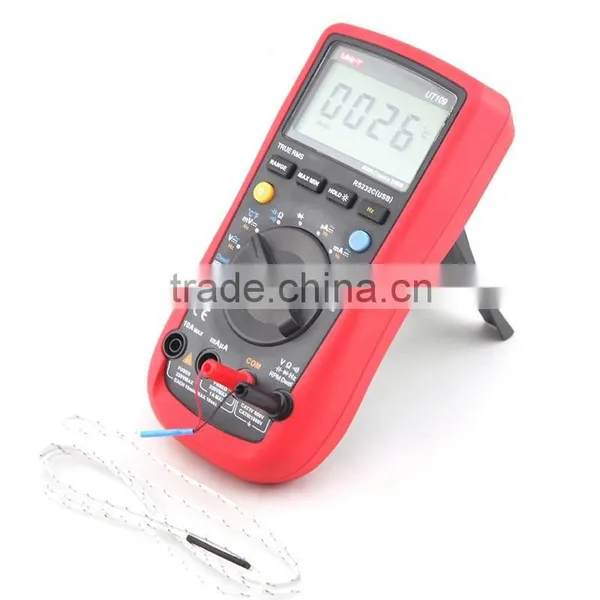

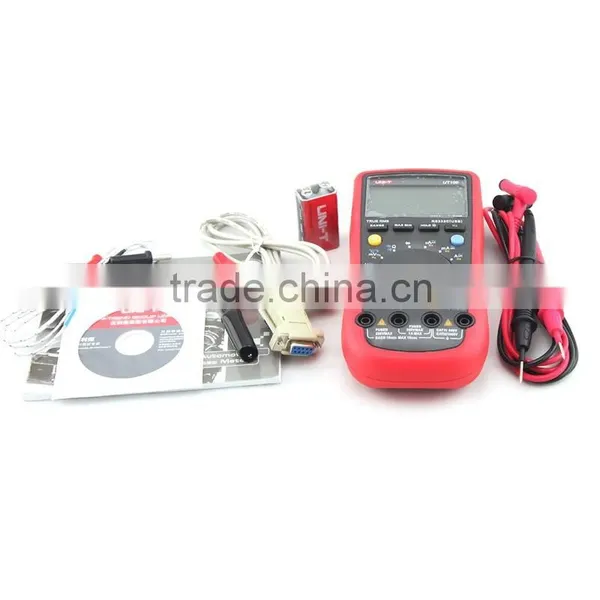

Standard Accessories	Battery, Test Lead,Alligator Clip, RS-232 Interface Cable,PC Software CD,Point Contact Temperature Probe,Multi-Purpose Socket

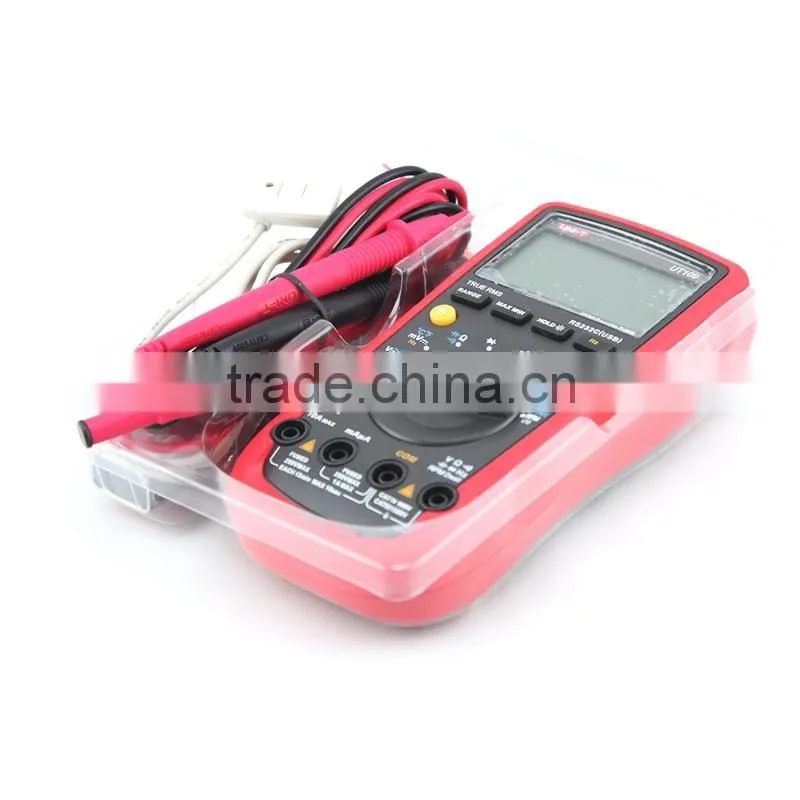

Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	20 PCs
Standard Carton Measurement	465mm X 335mm X 365mm (0.057 CBM Per Standard Carton)
Standard Carton Gross Weight	15.5 Kg
Optional Accessories*	USB Interface Cable
