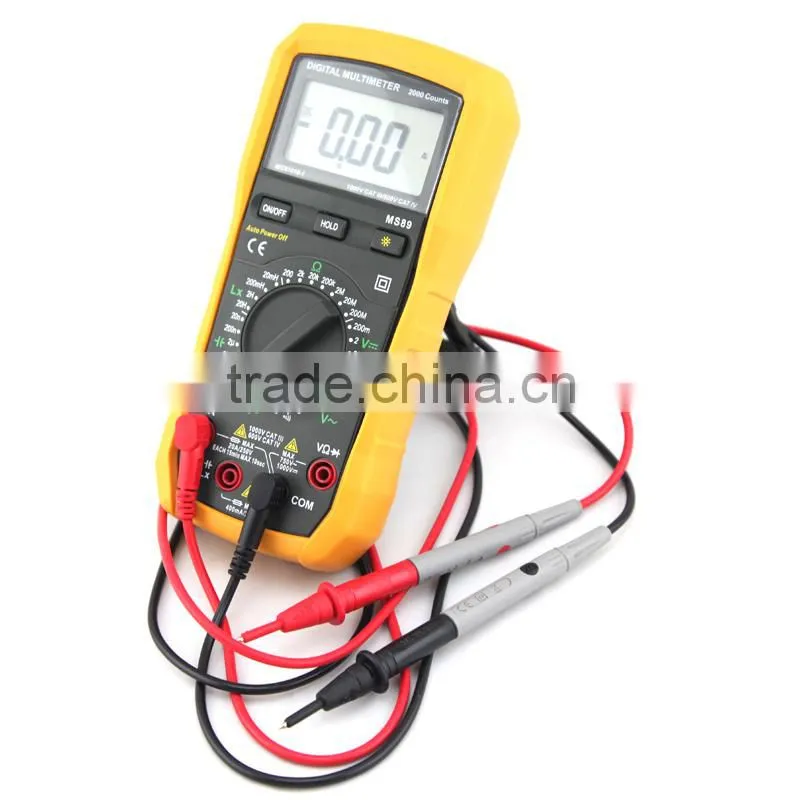

Digital Voltmeter Ampmeter Multimeter AC DC Meter OHM's Resistance With Capacitance Tester Buzzer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
MS89
Measuring Current Range:
DC:200mA/10A;AC:200mA/10A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AVD04 Pocket AC Live Non-contact Voltage TesterUS$ 2.9 - 4MOQ: 120 Pieces -
True RMS Best Cheap ac dc Digital Clamp MeterUS$ 38.33 - 44MOQ: 1 Set
-
Low Price ac dc Auto Range Amp Clamp Meter With FrequencyUS$ 25.5 - 29MOQ: 1 Set
-
LCD Display Low Price Digital Multimeter ST830L With 2000 CountsUS$ 25.12 - 29MOQ: 1 Set
-
Low Cost Usb Digital Oscilloscope for SaleUS$ 184.63 - 190MOQ: 1 Set
Place of Origin
Guangdong, China
Model Number
MS89
Measuring Current Range
DC:200mA/10A;AC:200mA/10A
Measuring Voltage Range
DC:200mV/2V/20V/200V 1000V;AC:2V/20V/200V 750V
Measuring Resistance Range
200Ω/2KΩ/20KΩ/200KΩ/2MΩ
Dimensions
188mmx92mmx50mm

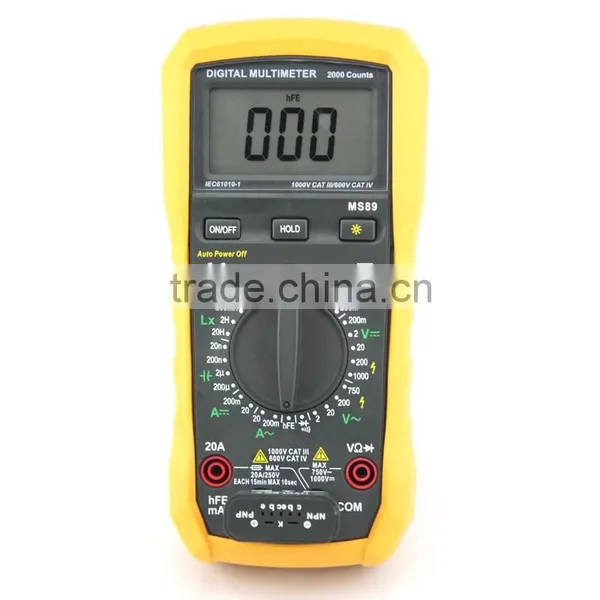

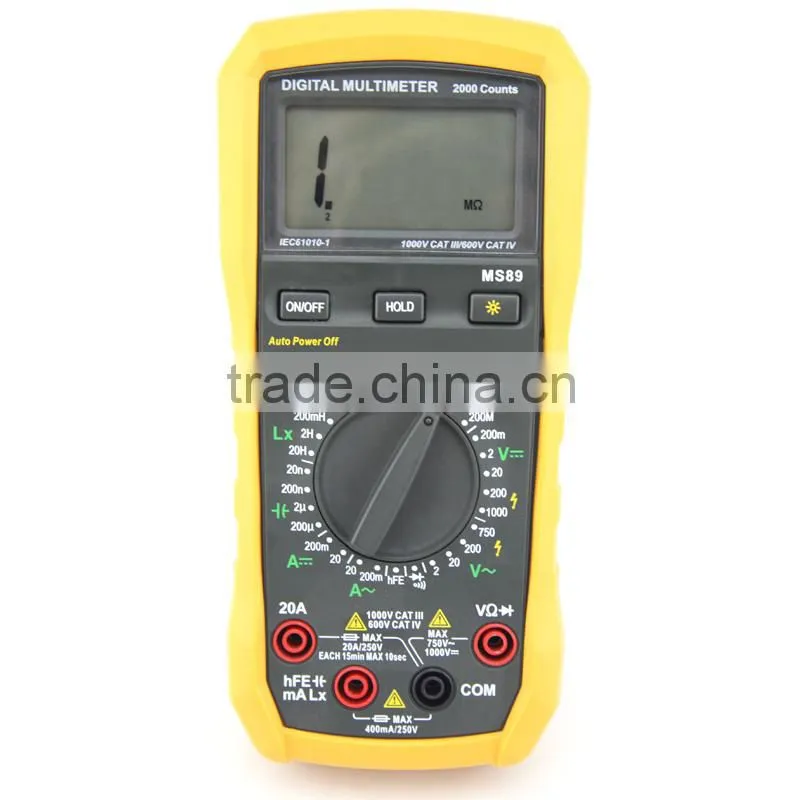

Digital Multimeters MS89
Specifications |
Range |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V 1000V |
±(0.5%+1) ±(0.8%+2) |
|
AC Voltage |
2V/20V/200V 750V |
±(0.8%+3) ±(1.2%+3) |
|
DC Current |
200mA 10A |
±(1.5%+1) ±(2.0%+5) |
|
AC Current |
200mA 10A |
±(1.8%+3) ±(3.0%+7) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ 200MΩ |
±(0.8%+1) ±(5.0%+10) |
|
Capacitance |
20nF/200nF/2μF/200μF |
±(4.0%+5) |
|
Inductance |
20mH/200mH/2H/20H |
±(3.0%+5) |
|
Feature | |||
Display |
2000 Counts |
||
Data hold |
√ |
||
Diode test |
√ |
||
Transistor |
√ |
||
Continuity |
√ |
||
Back light |
√ |
||
General | |||
Power supply |

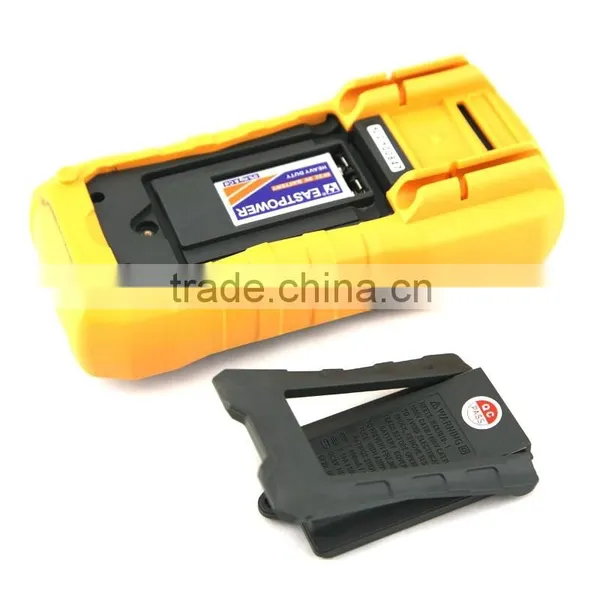

9V6F22 Battery |
||
Weight |
Approx 380g |
||
Size |
188mmx92mmx50mm |
||
Safety Rating |
CE CAT.III1000V CAT.IV600V RoHS |
||
