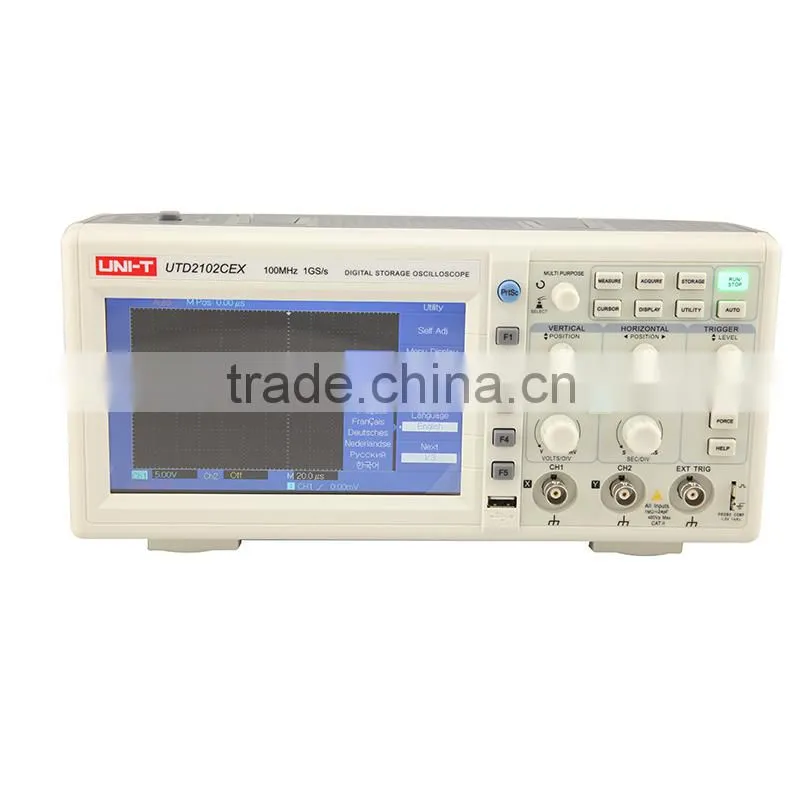

2 Channel pc Oscilloscope/car Diagnostic Tool Oscilloscope
US$ 254.96 - 267
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Model Number:
UTD2102CEX
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digital Voltmeter Ampmeter Multimeter AC DC Meter OHM's Resistance With Capacitance Tester BuzzerNegotiableMOQ: 1 Set -
AVD04 Pocket AC Live Non-contact Voltage TesterUS$ 2.9 - 4MOQ: 120 Pieces
-
True RMS Best Cheap ac dc Digital Clamp MeterUS$ 38.33 - 44MOQ: 1 Set
-
Low Price ac dc Auto Range Amp Clamp Meter With FrequencyUS$ 25.5 - 29MOQ: 1 Set
-
LCD Display Low Price Digital Multimeter ST830L With 2000 CountsUS$ 25.12 - 29MOQ: 1 Set
Place of Origin
Guangdong, China
Model Number
UTD2102CEX
Product Description
1,Dual analog channels width range 1mV/div~20V/div;
2,7 inches widescreen LCD displays;
3,The new interface style;
4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5,USB drive system software upgrade;
6,Storage of waveforms setups and interfaces waveforms and setups reproduction;
7,Automatic measurement of 32 waveform parameters;
8,Unique waveform recording and replay function;
9,Multilingual menu displays.
Specifications
| Specification | UTD2102CEX | ||
| Channels | 2 | ||
| Bandwidth | 100MHz | ||
| Sample Rate | 1Gs/s | ||
| Rise Time | ≤3.5ns | ||
| Memory Depth | 25kpts | ||
| Waveform Acquisition Rate | ≥2000wfms/s | ||
| Vertical Sensitivity(V/div) | 1mV/div~20V/div | ||
| Timebase Range(s/div) | 2ns/div~50s/div | ||
| Storage | Setup,Wave,Bitmap | ||
| Trigger Modes | Edge, Pluse, Video,Slope,Alternate | ||
| Interface | USB OTG | ||
| General Characteristic | |||
| Power | 100-240VAC, 45-440Hz | ||
| Display | 7 Inches 64K Color TFT LCD, 800×480 | ||
| Product Color | White and Gray | ||
| Product Net Weight | 2.2 Kg | ||
| Product Size (W×H×D) | 306mm ×147mm × 122mm | ||

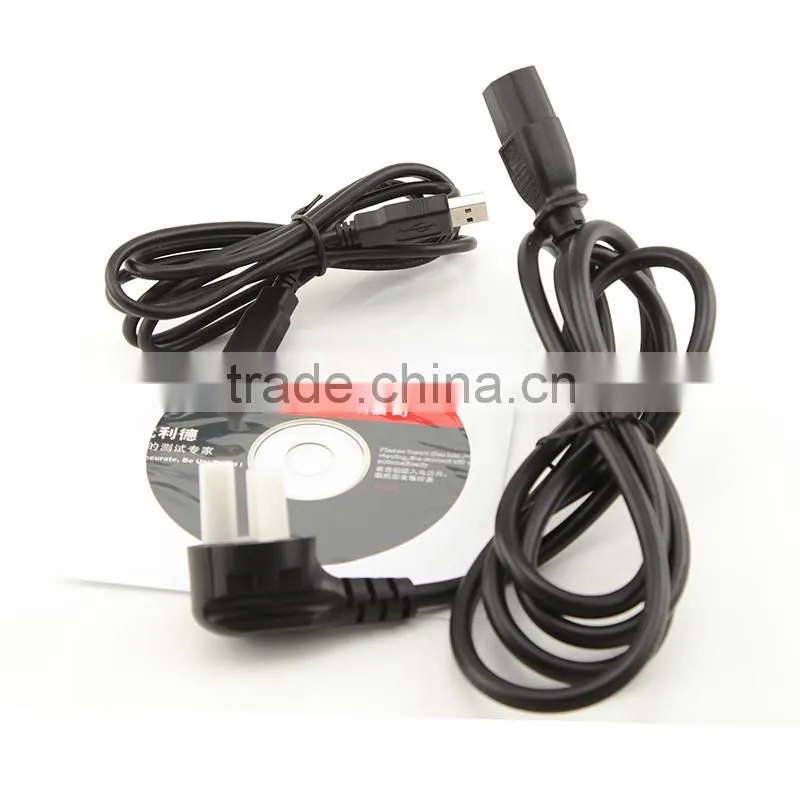

| Standard Accessories | Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 2 PCs | ||
| Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm | ||
| Standard Carton Cross Weight | 8.5 Kg | ||
| Optional Accessories* | |||
| LA Module | |||

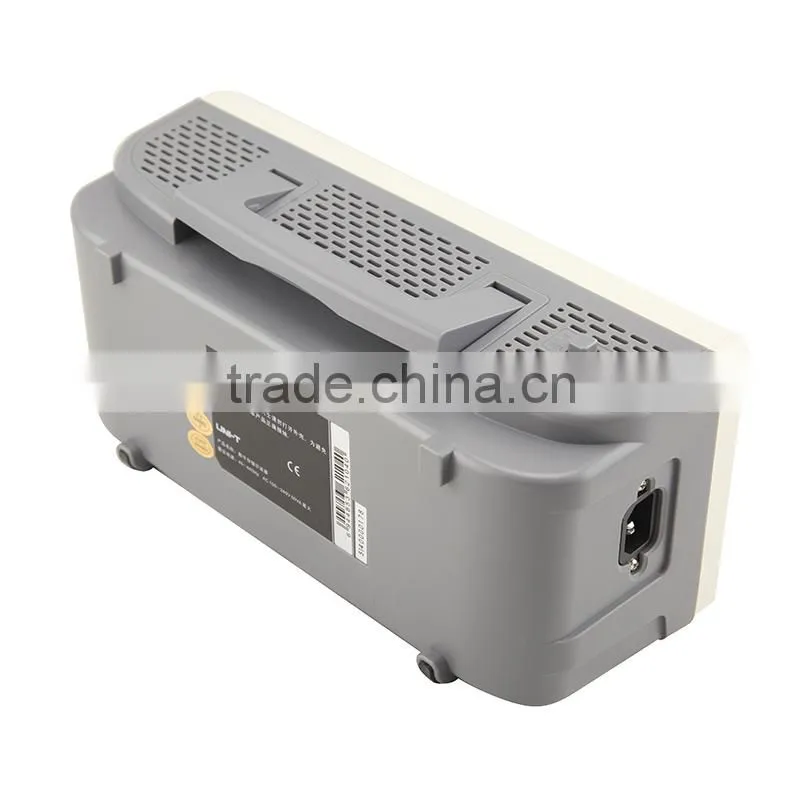

Back View :

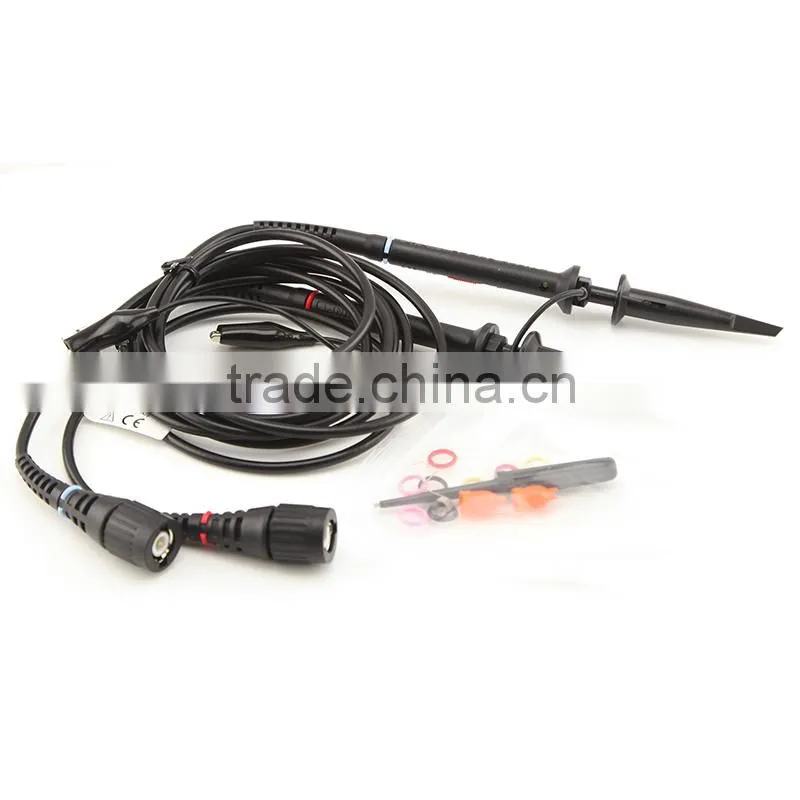

High Quality Probe :
Packing :
