Metal Color Steel Profile Trapezoidal Roof Panels Roll Forming
Machine
The products of our roof panel forming machine are widely used in building the steel-structured large-scale warehouses, plants, supermarkets, shopping malls, trade markets, stadiums, holiday villages, sanatoriums, hotels, villas, residences, and different kinds of greenhouses.
Machine specification:
1.Main Motor Power:3Kw
2.Cycloidal Pinwheel Reduction Box:3Kw
3.Drive Sprocket:Pitch 25.4mm
4.Rack:I-beam welding adopted
5.Number of Rack:5
6.Unit Dimensions: 5.5m×1.3m
7.Production Speed:0-12m/min
8.Shaft Diameter:75mm
9.Number of Forming Stations: 12
10.Cutting Material:Cr12
11.Heat Treatment of Sharing Blade: HRC58°C-62°C
12.Rolling Thickness:0.18-0.7mm
13. Cutting to Length: 10m/±1.5mm
14. Rolling Material:45#Steel
15. The single face of Cr electroplating rollers: 0.05mm
16. The product dimensions is up to the PRC's standard for Construction Product: GB/T12755-91
Note: If you have any special requirements, please contact us for further and correct scheme. Thanks!
Parts of Trapezoidal Roofing Sheet Roll Forming Machine
Decoiler |
1set |
Feeding & guiding device |
1set |
Main roll forming machine |
1set |
Hydraulic pressing system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |
Trapezoidal Roofing Sheet Roll Forming Machine production process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving

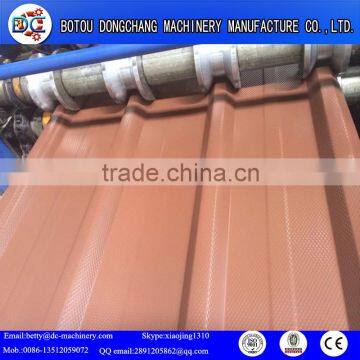

Trapezoidal Roofing Sheet Roll Forming Machine tile types
Trapezoidal Roofing Sheet Roll Forming Machine showing :
Trapezoidal Roofing Sheet Roll Forming Machine parts showing
Spare parts ( for free);
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
1. Installation and training of machine manufacturer:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale
a.One year guarantee for whole roll forming machine for sale.
b.24 hours technical support by email or calling
c.If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.
Color Steel Glazed Trapezoidal Tile Sheet Roof Wall Panel Roll
Forming Machine packaging&shipping :
Advantage of our machine :
1. Variable frequency speed control
2. Latest type,little noise
3. High precision in forming and cutting
4. High efficiency
5. Widely use
Since 2005 until today specializing in the production of more than 10 days ,now Botou Dongchang Machinery Manufacture Co., Ltd.has exported high quality Roofing Shingles Making Machine to more than 15countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on. Lean upon professional design, precise fabrication and experienced assembly, we always supply both standard and customized products in high quality. With a decade of experience in exporting ISO and BV certificated products all over the world, we could be your reliable supplier for long-term cooperation.
Our main production machines have follows:
corrugated roof roll forming machine;
IBR roof roll forming machine;
Glazed tile roll forming machine;
Double Layer Roll Forming Machine;
Roof Ridge Roll Forming Machine;
Floor Deck Roll Forming Machine;
Trapezoid Roof Roll Forming Machine;
Roof & Wall Roll Forming Machine;
Color stone coated Roof Tile machiney;
C/Z/U Purlin Roll Forming Machine;
Highway Guardrail Roll forming machine;
Shutter Door & Door Frame Roll Forming Machine;
Cutting&Bending&Slitting Machine and so on .
Ontcat details :
Welcome to inquiry ,we are so glad to services for you .
