High-efficienyTrapezoidal Roof Tile Metal Making Roll Forming Machine
- 49 Set / Sets per Month
- Tianjin Port
- T/T Credit Card
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Condition: | New | Type: | Cold Rolling Mill | Place of Origin: | Hebei, China |
Brand Name: | dongchang | Model Number: | 850 | Voltage: | 380V, 50HZ, 3 phase |
Power(W): | 3kw or as designed, 3KW - 8KW | Dimension(L*W*H): | 5.9*1.3*1.1 m | Weight: | 10ton |
Certification: | ISO,CE, ISO, CE | Warranty: | 1 year, 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

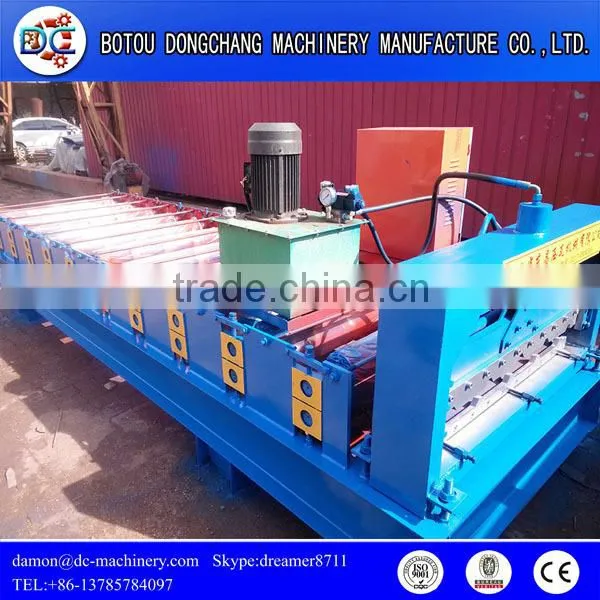

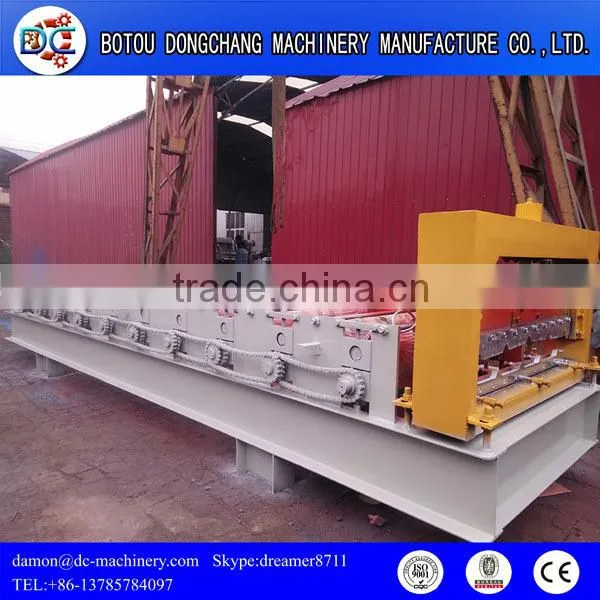

High-efficienyTrapezoidal Roof Tile Metal Making Roll Forming Machine
Main parameters
Suitable material | Color steel sheet , galvanized steel sheet, |
Main motor power | 3KW with Cycloidal reducer |
Hydraulic station power | 3KW |
Hydraulic oil | 36# |
Thickness of material | 0.2mm~0.8mm |
Diameter of principal axis | Φ70mm |
Material expand width | 1000mm-1250mm |
Electric tension | 380V 3phase 50HZ or as the customer's requirements |
Material of roller | High grade 45# forged steel (plated chrome plating on surface) |
Rolling galvanization thickness | 0.05mm |
Processing speed | 8-12m/min |
Processing precision within | 1.00mm |
Material of cutting blade | Cr12 mould steel with quenched treatment |
Kind of drive | 0.6 inch chain link bearing model 6210 |
Roller station | 13 Rollers |
Components of line,
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
5 | Automatic cutting | set | 1 |
6 | Output table | set | 1 |

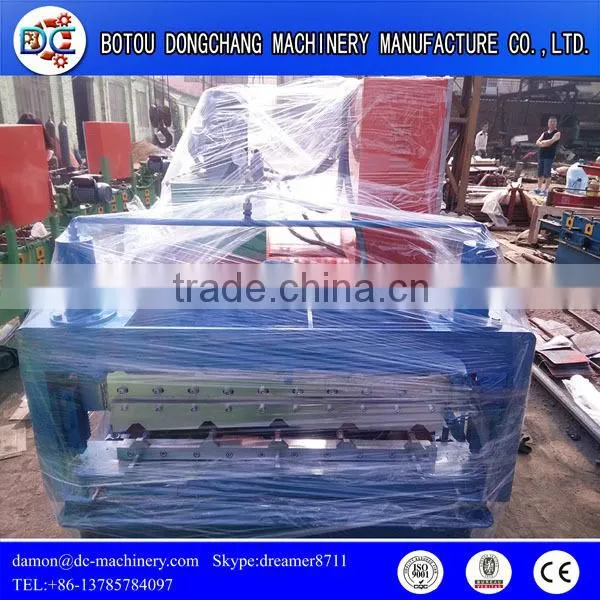

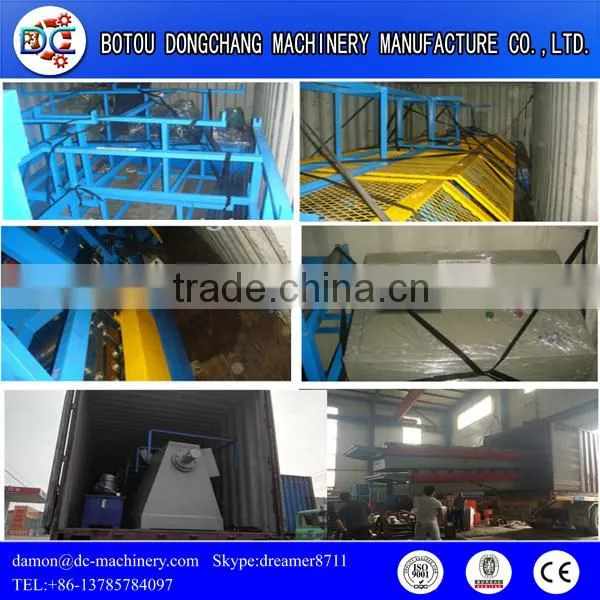

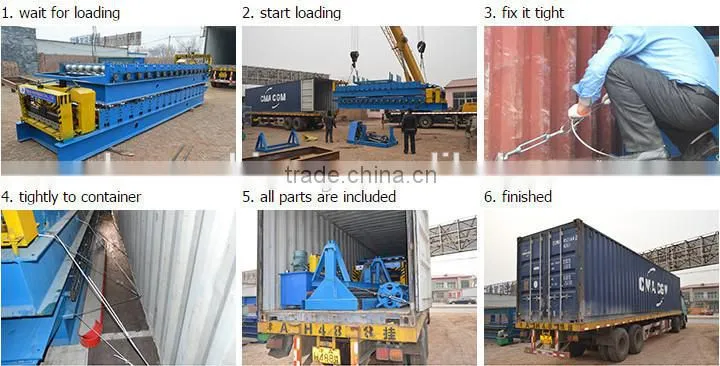

Packaging details of trapezoidal roll forming machine:
Main machine is nude in the container and control box is packed by carton box frame.
Delivery Detail:30 days after receipt of the deposite
12 months warranty period, we will offer technical support for whole life.
Engineer available to install machine and train your workers overseas.
High-efficienyTrapezoidal Roof Tile Metal Making Roll Forming Machine

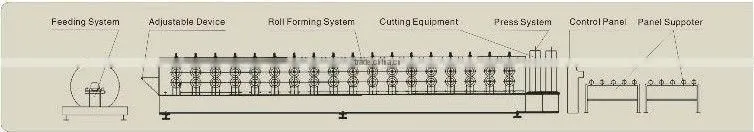

Uncoiling→ Feeding material into machine →Roll forming →Measuring length→ Step formed
→ Auto cutting →Products receiving
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
