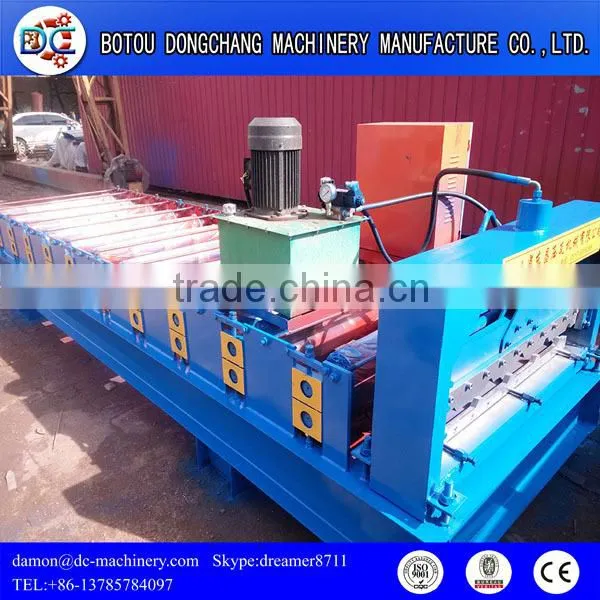

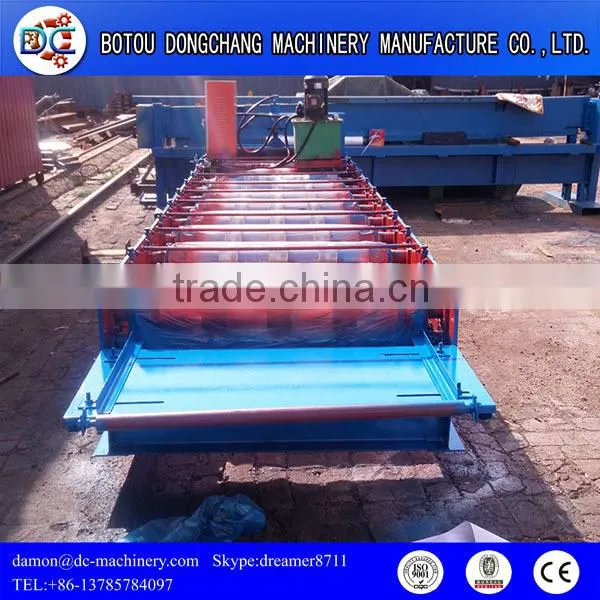

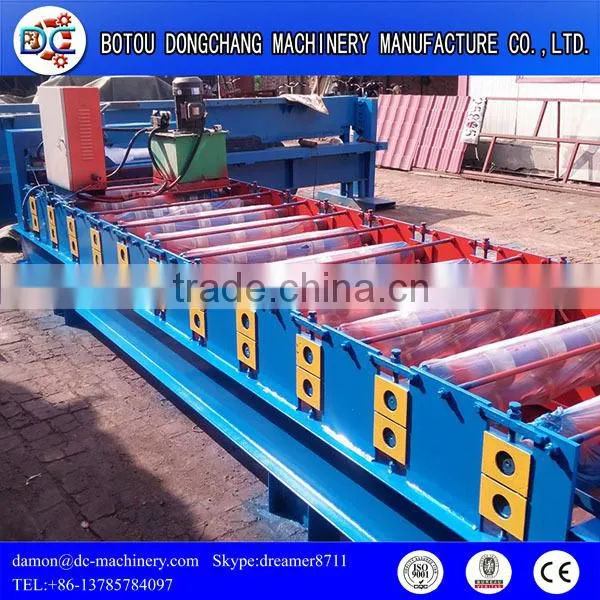

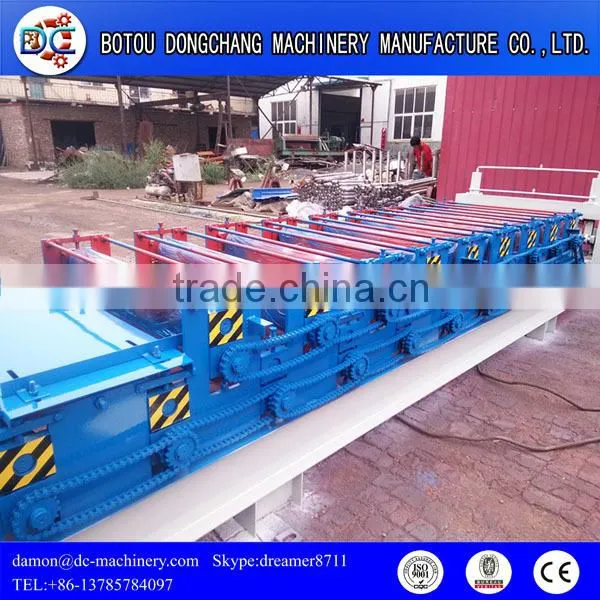

Manufacturers Supply PPGI Steel Roof Sheet Trapezoid Cold Roll Forming Machine roofing sheets making machine
Main parameters
Suitable material |
Color steel sheet , galvanized steel sheet, |
Main motor power |
3KW with Cycloidal reducer |
Hydraulic station power |
3KW |
Hydraulic oil |
36# |
Thickness of material |
0.2mm~0.8mm |
Diameter of principal axis |
Φ70mm |
Material expand width |
1000mm-1250mm |
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
Material of roller |
High grade 45# forged steel (plated chrome plating on surface) |
Rolling galvanization thickness |
0.05mm |
Processing speed |
8-12m/min |
Processing precision within |
1.00mm |
Material of cutting blade |
Cr12 mould steel with quenched treatment |
Kind of drive |
0.6 inch chain link bearing model 6210 |
Roller station |
13 Rollers |
Components of line,
No. |
Name |
Unit |
Qty |
1 |
Decoiler |
set |
1 |
2 |
Main machine for roll forming |
set |
1 |
3 |
Control system |
set |
1 |
4 |
Hydraulic system |
set |
1 |
5 |
Automatic cutting |
set |
1 |
6 |
Output table |
set |
1 |
Packaging details of trapezoidal roll forming machine:
Main machine is nude in the container and control box is packed by carton box frame.
Delivery Detail:5-7days after receipt of the deposite
12 months warranty period, we will offer technical support for whole life.
Engineer available to install machine and train your workers overseas.
Uncoiling→ Feeding material into machine →Roll forming →Measuring length→ Step formed
→ Auto cutting →Products receiving

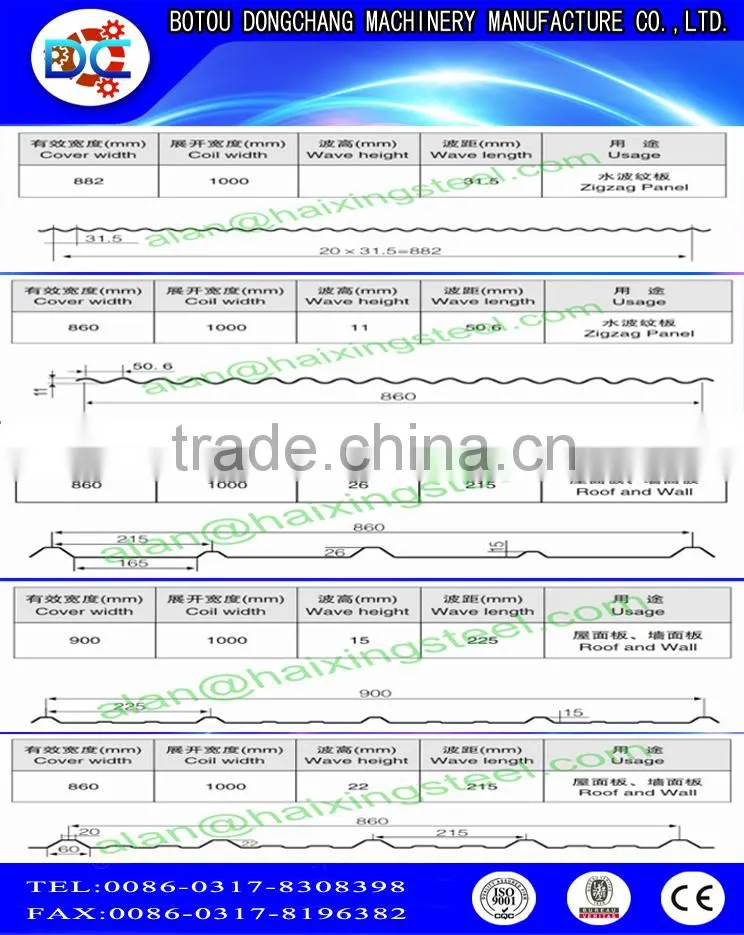

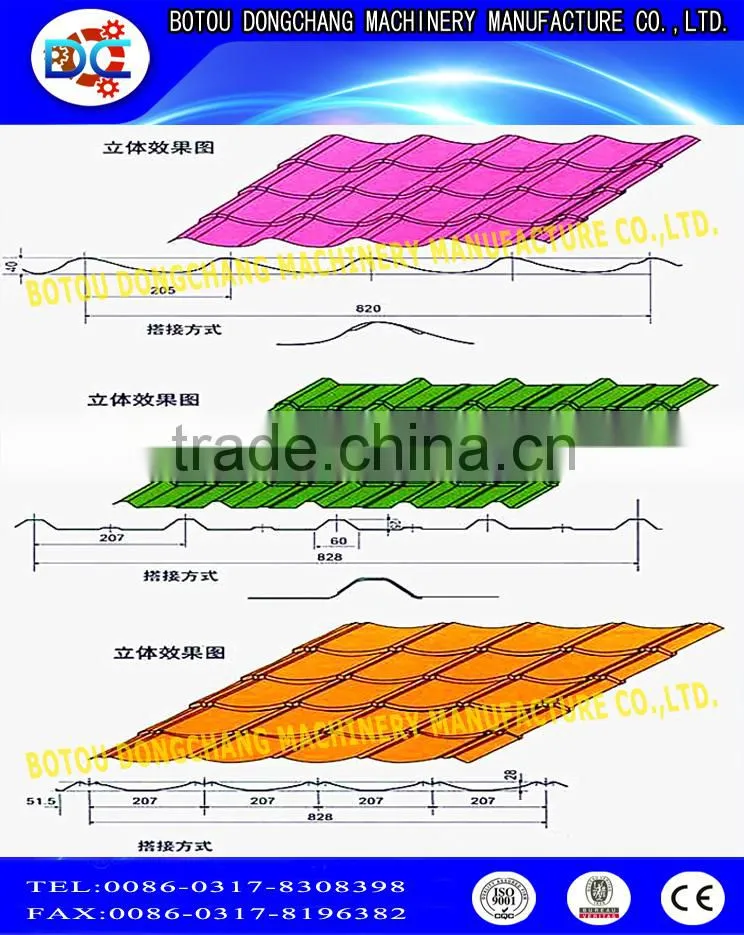

We can provide the classic panel drawings for your choose,we also can make and design the kinds of roll forming machine according to your customization.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
so:
If any questions ,plz contact us.
Contact person: Damon
TEL:+86-13785784097
Skype:dreamer8711
Fax:0317-8196382
