Specifications
Roll forming machine
Material:color steel sheets
Machine speed:8-12m/min
High quality and low price with quickly delivery time
glazed steel tile roll forming machine/high rib roofing panel roll forming machine/roof panel machine parameters :
| Style | used metal roof tile making machine |
| Machine dimension | 6500*1500*1200mm |
| Total wight | 3200kgs |
| Forming steps | 11rows |
| Forming speed | 10-12m/min |
| Hydraulic station power | 4kw |
| Diameter of shaft | 75mm |
| Hydraulic pressure | 18-20Mpa |
| Electric condition | 380V/3Phase/ 50HZ |
| Suitable to process | color steel coil ppgi/ppgl gi/gl |
| Decoiler max capacity | 4-6tons |
| Control system | PLC control |
| Raw material thickness | 0.2-0.8mm |
| Effective width | 828mm |
| Material width | 1000mm |
| Main application | tile roof |
Parts of glazed roof tile corrugated roof making machine:
Decoiler |
1set |
Feeding & guiding device |
1set |
Main roll forming machine |
1set |
Hydraulic pressing system |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |

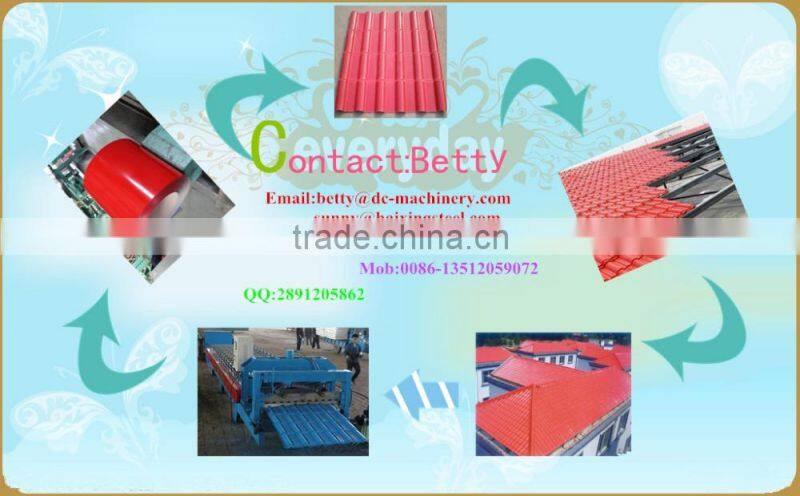

building glazed tile roll forming machine process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table

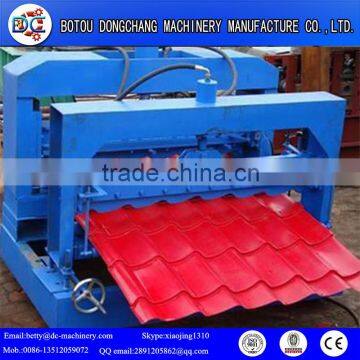

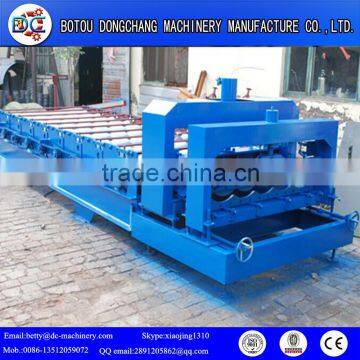

glazed steel tile roll forming machine/high rib roofing panel roll forming machine/roof panel machine showing
glazed steel tile roll forming machine/high rib roofing panel roll forming machine/roof panel machine tile types showing :
glazed steel tile roll forming machine/high rib roofing panel roll forming machine/roof panel machine parts showing :
glazed steel tile roll forming machine/high rib roofing panel roll forming machine/roof panel machine packaging&shipping:
a.Fit for ocean shipping;
b.Main body of machine is fixed to container by 8mm diameter steel wire; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box.
Since 2005 until today specializing in the production of more than 10 days ,now Botou Dongchang Machinery Manufacture Co., Ltd.has exported high quality Roofing Shingles Making Machine to more than 15countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on. Lean upon professional design, precise fabrication and experienced assembly, we always supply both standard and customized products in high quality. With a decade of experience in exporting ISO and BV certificated products all over the world, we could be your reliable supplier for long-term cooperation.
Our main production machines have follows:
corrugated roof roll forming machine;
IBR roof roll forming machine;
Glazed tile roll forming machine;
Double Layer Roll Forming Machine;
Roof Ridge Roll Forming Machine;
Floor Deck Roll Forming Machine;
Trapezoid Roof Roll Forming Machine;
Roof & Wall Roll Forming Machine;
Color stone coated Roof Tile machiney;
C/Z/U Purlin Roll Forming Machine;
Highway Guardrail Roll forming machine;
Shutter Door & Door Frame Roll Forming Machine;
Cutting&Bending&Slitting Machine and so on .
1. Our roof tile Making Machine (except wearing parts) come with 12 months warranty. Within the 12 months period, for any parts damaged due to quality problems, we offer the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.
A. Roll forming machinery: which could produce matalic roofing tile, trapezoidal or sinusoidal roofing sheet, floor deck, C and Z purlin, expressway guardrail, channel and stud, roller shutter and sandwich panel, etc. Customized profiles and requirements are acceptable, and assistant equipments such hydraulic decoiler, auto stacker, etc.
B. Steel structure Building: Complete service including design, fabrication, delivery and installation supervision for PEB industry, such as warehouse, workshop, shopping mall, highrise building, etc.
C. Related products: Metal material for PEB building and other related equipments, like H-beam process machinery, slitting/CTL machine, etc.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 3 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are factory with professional production team and service consciousness just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 15 years without any problem. We can provide 1 years free qualityassurance.
8. How long the machine could be made?
Jenerally speaking, the machine could be made without 20working days .But if you need machines in a hurry,
we can make it for you less than 15days .
