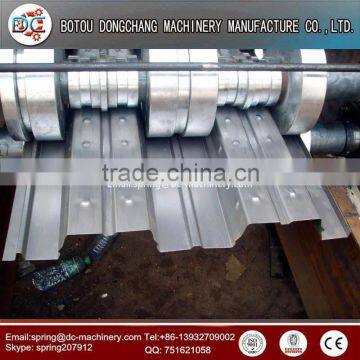

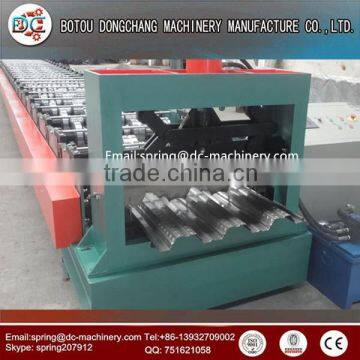

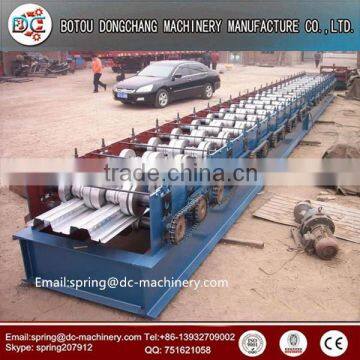

Automatic Steel Floor Deck Profile Roll Forming Machine
The deck floor roll forming machine consists of hydraulic decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system and electric system.
This equipment from Changsheng Company has a better effective height and stronger resistance, because its plate is wholly covered by concrete.
The steel plate made by this deck floor roll forming machine is characterized by superexcellent fireproof. Additionally, it has advantages of quick and simple
operation, longer service time and so on.
The Chart of Process Flow
decoiling→active feeding→roll forming→measuring length→cutting to length→putting product to stand.
Technical Parameters of Deck Floor Roll Forming Machine
Manual Inner Tight Decoiler |
|
Coil Inner Diameter |
450mm-700mm |
Max Width of Coiling |
1,200mm |
Max Weight of Loading |
6,000KG |
Hydraulic Station Power |
3kw |
Motor Power |
3kw |
Oil Cylinder Inner Diameter |
120mm |
Working Pressure |
10Mpa |
Main Forming Machine |
|
Number of Forming Steps |
22 |
Material of Shaft |
45#steel adjustable treatment |
Outer Diameter of Shaft |
80mm |
Material of Roller |
15GCR bearing steel treatment HRC58-60 |
Main Motor Power |
5.5kw |
Forming Speed |
8-10m/min |
Stand |
350#steel welding |
The Plating Chromium of Roller Surface |
0.05mm |
Hydraulic Cutter |
|
Material of Blade |
Cr12 with quenched treatment 60-62 |
Cutting System |
adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor(main motor stops and the cuts)
|
Electrical System |
|
The Main Computer(PLC) |
DVP 14ES |
Hydraulic System |
|
Adopting Advanced Hydraulic System of Taiwan |
|
Power |
4kw |
Composition |
|
Automatic Inner Tight Decoiler |
1 set |
Main Forming Machine |
1 set |
Hydraulic System |
1 set |
Electrical System |
1 set |
Normal Product Stand |
1 set |
It is mainly used to produce metal panels for constructing structure decks.
Due to the reasonable structure and high performance materials, it can ensure high efficiency and stability while producing metal panels with high rigidity and low deformation.
Usage
The deck floor roll forming machine is used to construct skyscraper, residential building and bridge.
The steel plate made by this deck floor forming machine has property of superexcellent fireproof.
