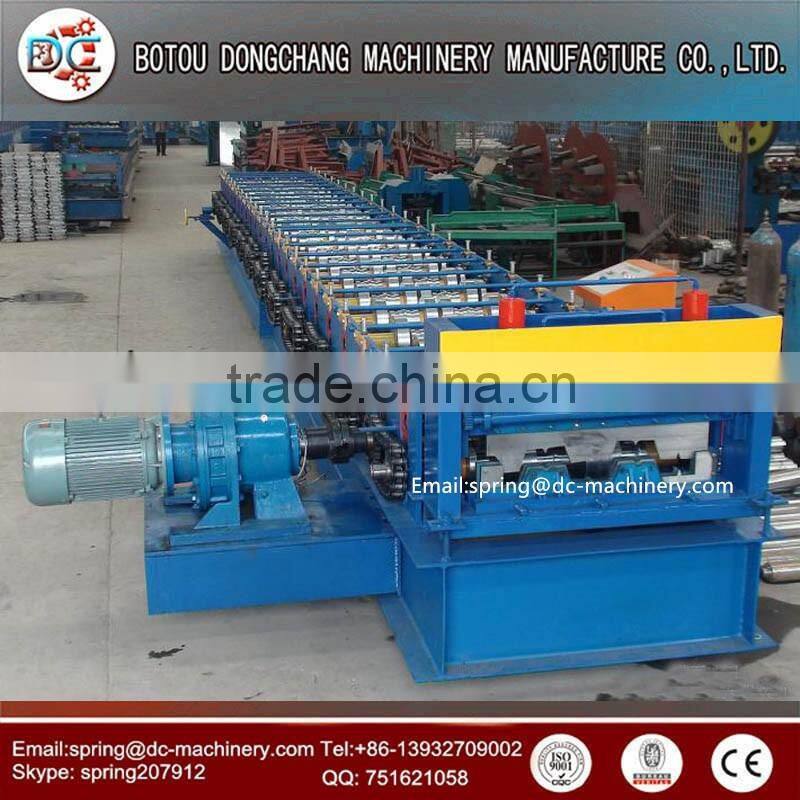

Technical parameters
1. Matching material: colored armor plate with the bending intensity of 235-550MPA
2. Material thickness: 0.3-1.5mm

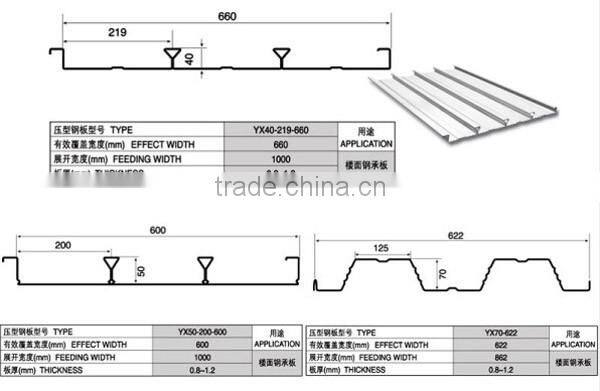

Feeding width:1200mm/Effectice width:872mm
3. Main motor power: 11kw*2 sets
4. Forming speed: 8- 12m/min
5. Hydraulic station power: 7.5 KW
6.Roll stations: 26
7. Shaft Material and diameter: material is Cr 40, 85mm
8. Material of the stations: wall memorial arch
9. Tolerance: +-1.5mm
10. Way of drive: chain
11. Controlling system: PLC
12. Total weight: about 12 Tons
13. Voltage: 380V/ 3phase/ 50 Hz
14. Material of forming rollers: G c r 15
15. Material of cutter blade: Cr 12 mould steel with quenched treatment HRC58-62
Cutting:
(1) Cutting motion: The main machine automatically stops and then cutting. After the cutting, the main machine will automatically start.
(2) Material of blade: GCR12 Mov with heat treatment
(3) Length measuring: Automatic length measuring
(4) Tolerance of length: +/- 1.5mm
Control Box: Brand Panasonic
(1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase (this is can depend on customer request)
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5) Length inaccuracy can be amended easily
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
