Manual uncoiling machine steel coil decoiling machine
Techinical data
| Item NO |
Description |
specification |
| Uncoiler | ||
| 1 | Max load bearing | 10Ton |
| 2 | Max sheet width | 1250mm |
| 3 | Inner diameter of coiled material | 508-601mm |
| 4 | Motor power | 11kw |
| 5 | The type of speed reducer | ZQA350-31.5-III |
| 6 | Min Coil Speed | 28m/min |
| 7 | System Pressure for reference | 16Mpa |
| Loading Car | ||
| 1 | Max load bearing | 10Ton |
| 2 | Max sheet width | 1250mm |
| 3 | Max elevating height | 230mm |
| 4 | Step of two single acting cylinde | 350mm |
| 5 | First diameter of plunger | 125 step 175,16mpa thrust force 196KN |
| 6 | Second diameter of plunger | 100,step 175 16mpa thrust force 125KN |

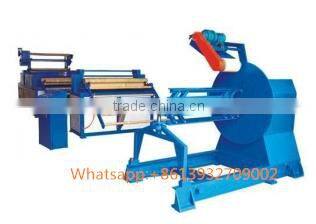

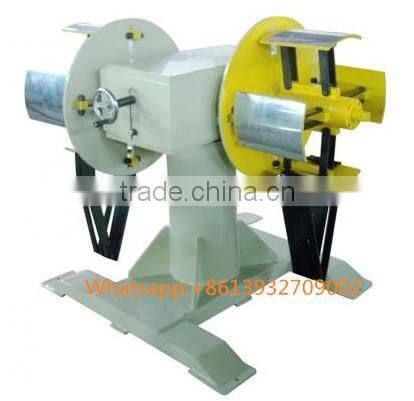

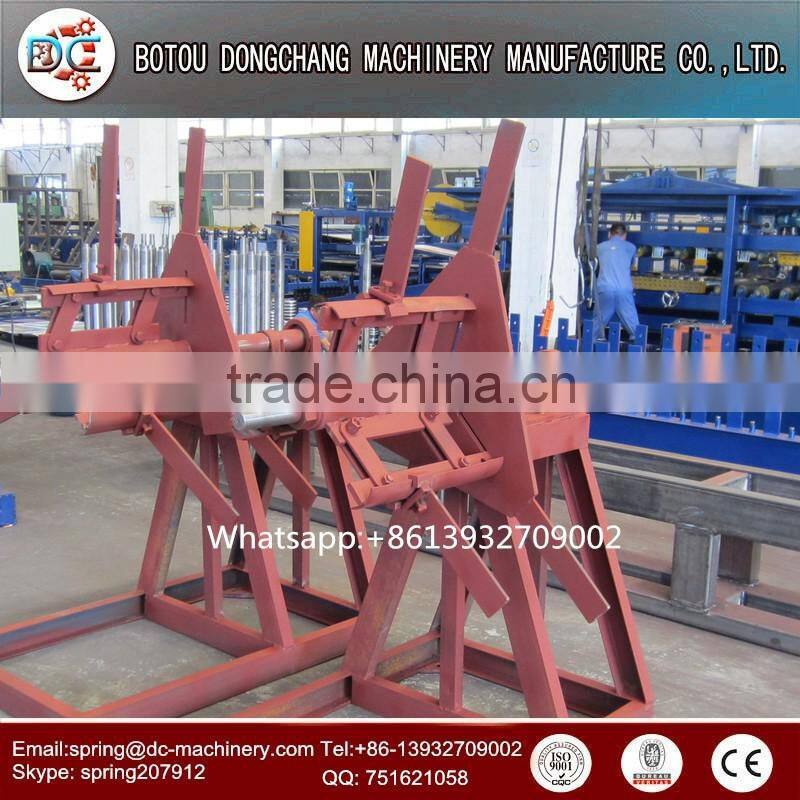

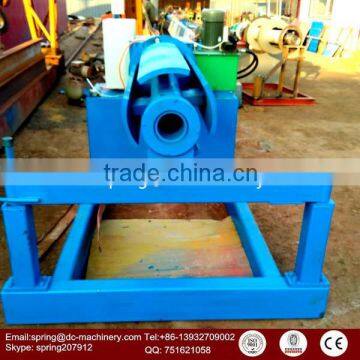

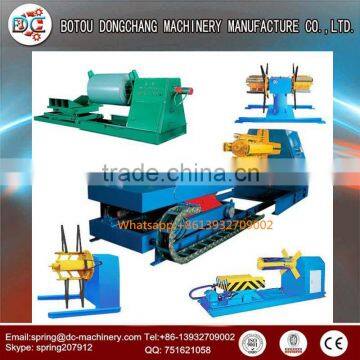

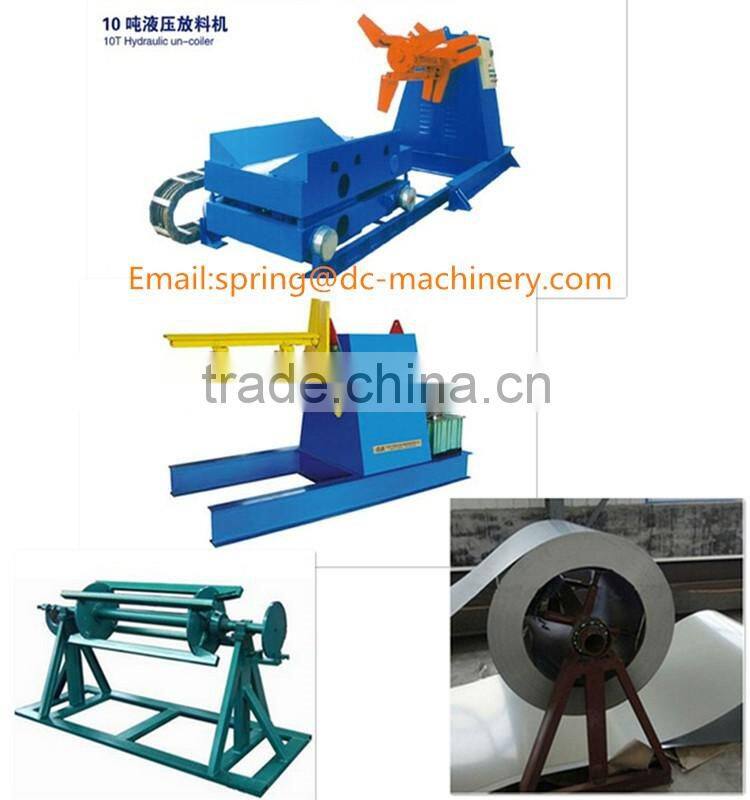

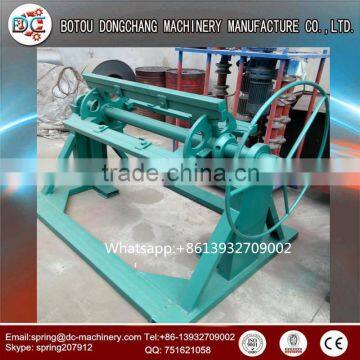

The pictures of uncoiler:
Payment terms: 30%TT in advance, 70%-the balance should be paid before loading.
Delivery time:30 days after receiving the 30% advance payment.
Guarantee period: 12 months service for free, paid service for the whole machine life
Since 2005 until today specializing in the production of more than 10 days ,now Botou Dongchang Machinery Manufacture Co., Ltd.has exported high quality Roofing Shingles Making Machine to more than 15countries, which includes: South Africa, Tanzania, Australia, India, Indonesia, Iran, Macedonia, Ghana, Trinidad and Tobago, Sri Lanka, Sudan, Guyana, America, Abidjan, Kazakhstan, Nigeria, Bolivia, Bengal, Chile, Armenia, the UK, GHANA and so on. Lean upon professional design, precise fabrication and experienced assembly, we always supply both standard and customized products in high quality. With a decade of experience in exporting ISO and BV certificated products all over the world, we could be your reliable supplier for long-term cooperation.
After-sale service of uncoiler
Our products are widely used in various industrial factory ,beauty spot, holiday village building, hotel,exhibition ,easy steel building manufacturing ,and have features such as nice appearance and durable.
Within in one year if any parts go broken we will send new ones to replace for free,after the
warranty period,we will help you repair the machine ,you only responsible for the labour and
parts if the machine have some problems.
Welcome to inquiry and visit ,we will try our best serives for you .
