Help CenterIPTV HD STB
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
CEKE
Model Number:
Android 4.4.2
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangxi, China
Brand Name
CEKE
Model Number
Android 4.4.2
Sepcifications
Core System
*Processor: Quad Gore A5
*GPU: Quad Core Mali ~ 450
*Memory: ROM: 4GB Flash, RAM: 512MB DDR
*Operation System: Android 4.4.2
*Protocol: TCP, UDP, RTP, HTTP, RTSP, RTMP and etc, 10/100Mbit Adaptive Ethernet interface
*Update: USB flash disk, networkVideo/Audio/Picture Decoding
* Dual programmable DSP engines at 200MHx with DSP instructions and direct video deocding hardware interfaces
* Multiple language and multiple format sub-title video support
* Video: MPEG1,MPEG2, MPEG4, H.264,VC ~ 1,Real,etc
* Audio: MP2,MP3,AAC,AC3,COOK,OGG,WAV,WMA,M4A,etc
* Supports TS, MP4, AVI, RMVB (upto 720P), MOV, FLV, VOB, MKV, WMV etc file formats
* Picture: BMP, JPEG, PNG etc
Connectivity
Tuners: DVB-C,DVB-S2,DVB-T/T2 (Optional)
Video/Audio: HDMI, CVBS
USB: 2 x USB 2.0 Interface
Ethernet: 10/100Mbit Adaptive Ethernet interface
WIFI: 802.11 b/g/n 150 Mbit/s
Dimensions
W x H x D(mm): 180x130x33
Weight(Kg): 0.25
Temperature (ambient): 0~75°C
Power
Input voltage: 100~220VAC 50/60Hz 300mA
Output voltage: 12VDC 1A
Proposed Accessories
Remote control
12V power adapter
HDMI and CVBS Cable
Advantages
Personalized EPG Interface
- * Personalized EPG interface for hotel, hospital and other industries.
- * System wallpaper is changeable and EPG content is editable.
- * Various business modes blend in IPTV system, view with remote control
- * Support modular interface and convenient to docking with third part manage software

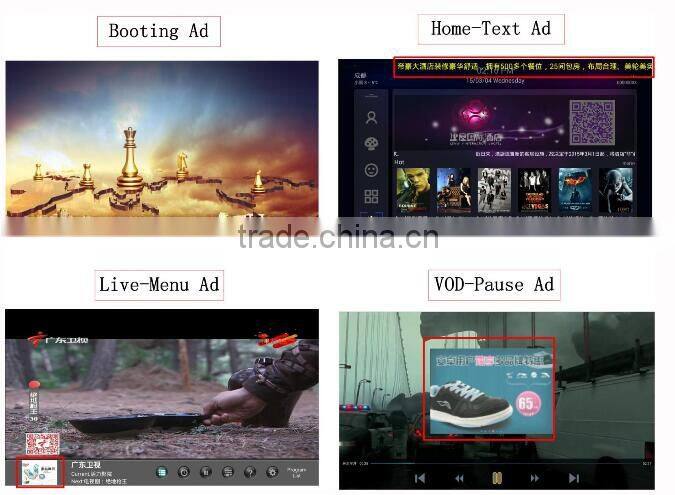

Advertisement System—Value added Services
- * Hotel or hospital owners can set up advertisement business to increase revenues.
- * Ad modes include booting ad, EPG ad, VOD ad, pictures and text ad etc.
Mass HD Programs
- * Support 1080P/60Hz full HD video

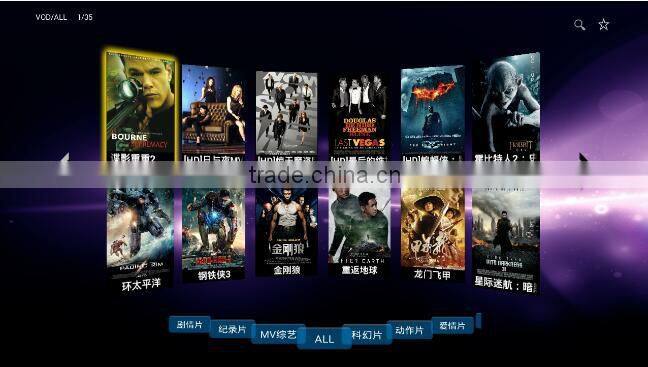

- * Mass resource of Video on Demand including movies, entertainments, factual shows and etc
Strength and After-sale Services
- * Dexin IPTV system is with solid quality based on Dexin’s own DTV head-end equipment
- * The whole system is self research and developed, which makes is easy for the after-sale maintenances
- * Skilled after-sale supporting team
Android OTT STB
- * Support Android OTT and IPTV system in STB
- * Support all Android APPs
- * Support mobile phone remote control
- * Intelligent Android system with more comfortable user experience and enhanced brand image
Self research and develop the turnkey IPTV system, from head-end equipment to STB terminals
System Load Capacity Test Report
| Server | Test Item | Load Capacity | Client | Test Source | |||||||||
| 1 x DELL R720 | Live | 650 | 25 Live Programs, 4M/Pro | ||||||||||
| 1 x DELL R720 Center Node & 2 x DELL R720 Work Node | Live | 1250 |
25 Live Programs, 4M/Pro | ||||||||||
| 1 x DELL R720 | VOD | 240 | Bit rate: 450~500KB/s requested on each STB terminal | 100 VOD Videos | |||||||||
| 1 x DELL R720 Center Node & 2 x DELL R720 Work Node | VOD | 480 | Bit rate: 450~500KB/s requested on each STB terminal | 100 VOD Videos | |||||||||
| 1 x DELL R720 | Live + VOD | 400 Live + 200 VOD | Bit rate: 450~500KB/s requested on each STB terminal(VOD) | 25 Live Programs, 4M/Pro + 100 VOD Videos | |||||||||
| 1 x DELL R720 Center Node & 2 x DELL R720 Work Node | Live + VOD | 800 Live + 400 VOD | Bit rate: 450~500KB/s requested on each STB terminal(VOD) | 5 Live Programs, 4M/Pro + 100 VOD Videos | |||||||||
| 1 x DELL R720 | Playback | 600 Playback | Bit rate: 450~500KB/s requested on each STB terminal(Playback) | 50 Recorded Files | |||||||||
| 1 x DELL R720 | Recording + Playback | 5 Recording + 300 Playback | Bit rate: 450~500KB/s requested on each STB terminal(Playback) | 50 Recorded Files + 5 Programs are being recorded simultaneously | |||||||||
| 1 x DELL R720 | Recording + Playback | 7 Recording + 200 Playback | Bit rate: 450~500KB/s requested on each STB terminal(Playback) | 50 Recorded Files + 7 Programs are being recorded simultaneously | |||||||||
| 1 x DELL R720 | Recording + Playback | 10 Recording + 60 Playback | Bit rate: 450~500KB/s requested on each STB terminal(Playback) | 50 Recorded Files + 10 Programs are being recorded simultaneously | |||||||||
Technical Comparison
Items |
Pre-version |
Current Version |
Operation System |
Android 4.2.2 |
Android 4.4.2 |
Tuner Input |
√ |
N/A |
Processor |
Dual Core |
Quad Core |
Video Output |
HDMI |
HDMI+CVBS |
ROM (Flash) |
4 GB |
4 GB |
RAM (DDR) |
1 GB |
512 MB |
SD Slot |
√ |
N/A |
IR Extender |
√ |
N/A |
