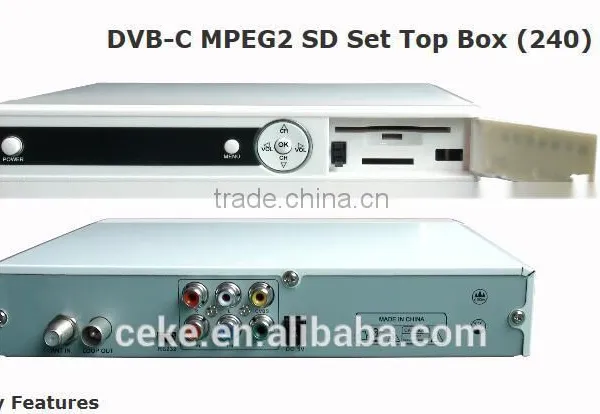

Help CenterDVB-C MPEG2 SD Set Top Box (240)
Related Products
Key Features
- CEKE CAS integrated
- Fully DVB-C/MPEG-2 compliant
- MEPG-2 SD decoding (MP@ML)
- Novel-Supertv decoding system embedded
- Simultaneous viewing of one channel and recording it
- One touch record scheduling in EPG
- Support NIT auto search, list search, manual search
- Powerful program management feature and level restriction features for parental locking
- Support EPG Classified management
- 7 days Electronic Program Guide (EPG)
- Closed Caption, Teletext output with OSD
- Logical channel number (LCN) Supported
- 1 Smart Card embedded
- Software Upgrade via OTA & serial connection (RS-232C)
- Standby consumption less than 1W (True Standby)
Specifications
System Resources
CPU |
GX3001Q, 300 MHz |
Flash |
16Mbit |
DDR |
128Mbit |
Tuner& Demodulator
Tuner |
NXP18520 (On board) |
Constellation |
16/32/64/128/256QAM |
Frequency Range |
47MHZ-862MHZ |
Sensitivity |
35dBµV-80dBµV |
C/N |
≤23dB (64QAM, 6.952 Mbaud) |
Frequency Catch Range |
±150kHz |
Input reflect loss |
≥ 8dB |
Symbol Rate |
3.6~6.952 Mbaud |
Input Impedance |
75Ω |
Video Decoder
standard |
MPEG-2 MP@ML MPEG-1 |
Resolution |
720×576(PAL), 720×480(NTSC) |
Output |
CVBS/Y Pb Pr Component in RCA |
Input Impedance |
75Ω |
Aspect Ratio |
4:3/16:9 (auto) |
Audio Decoder
standard |
MPEG-1, MPEG-2 Layer-I/II, MP3 |
Mode |
Single / Dual mono / Stereo / Joint Stereo |
Sampling Rate |
32KHZ, 44.1KHZ, 48KHZ |
Output |
RCA |
Output Impedance |
600Ω |
General
Smart Card |
1pc cater for ISO7816 standard |
Power supply |
AC100~240V,48~52HZ |
Power consumption |
<5W |
Holding consumption |
<1W |
Anti-electricity durance |
3000V(AC spot value)keep 1 mins not breakdown |
Operation temperature |
0~40℃ |
CEKE has built a long-term and good R&D cooperative relationship with China North Industries Group 206 Institute, Guilin Institute of Automation Technology, Beijing University of Posts and Telecommunication and Guilin College of Aerospace Technology.
CEKE has passed the international ISO9001 Quality System Certification, and the digital television transmitter has passed the State Administration of Radio Film and Television (SARFT), SRRC,AQSIQ certification.
CEKE was awarded “Guilin National Microwave and Optical Communication High and New Technology Industrialization Base” by the Ministry of Science and Technology in 2011.
CEKE welcome customers sharing experience in our company, and we provide one week training for customers, including transmitter technology, engineering and maintaining regulations. We also can dispatch engineers overseas to install equipments, but customers should bear the cost of return-trip tickets, visa fees, accommodations, etc.
We are committed to provide customers with the most competitive price, one year free warranty period(Non-artificial damage) and maintenance for lifetime to enhance our long-term cooperation. For mutual benefit, we spare no efforts in satisfying our customer in every possible way.
