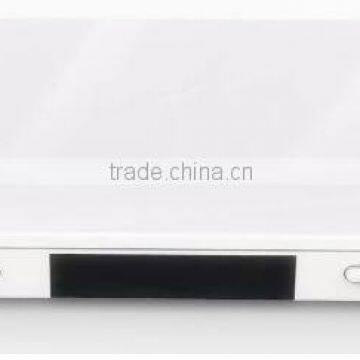

DVB-T2 Set Top Box Digital Terrestrial HD MPEG-4 TV Decoder

Name: DVB-T2 Set Top Box Digital Terrestrial HD MPEG-4 TV Decoder
Brand: CEKE
SKU: 126423303
Availability: InStock

DVB-T2 Set Top Box Digital Terrestrial HD MPEG-4 TV Decoder thumbnail-1

DVB-T2 Set Top Box Digital Terrestrial HD MPEG-4 TV Decoder thumbnail-2

DVB-T2 Set Top Box Digital Terrestrial HD MPEG-4 TV Decoder photo-1

DVB-T2 Set Top Box Digital Terrestrial HD MPEG-4 TV Decoder photo-2

Negotiable MOQ: 500 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangxi, China

Brand Name:

CEKE

Model Number:

K1831

Contact Supplier Request Quote Chat Now

Guilin CEKE Communication Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China main port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangxi, China

Brand Name CEKE

Model Number K1831

Product Description

Digital Terrestrial HD MPEG-4 TV Decoder

Model No: K1831

Main Features:

Fully Support EN300744 DVB-T standards
HDTV/SDTV MPEG-2 & MPEG-4 H.264 decoding
Support CONAX 7.0 / IRDETO/ Gospell CAS
Support 480i/480p/576i/576p/720p/1080i/1080P
HDMI output for High Definition
Support S/PDIF audio output
Support teletext/subtitle/multi-language
Support EPG
Channel edit function including Favourite, Move, Delete, Lock,Skip,Rename
Variable aspect ratio 4:3/16:9,4:3 Pan & Scan or Letter Box modes
Support USB 2.0 software upgrade and OTA software upgrade.
Support USB 2.0 PVR. MP3, AVI,DAT,MKV,MP4,MPG,VOB,WMA Optional,BMP,JPG photo playback

Technical specification

Chipset and Memory:

CPU Speed: 700MHz MSTAR

Flash: 64Mbit

RAM: DDR3-1Gbit/1600Mbps

Power:

Input power: DC 12V1.2A 100~240V 50/60Hz

Maximum Power consumption: ≤18W

Standby power: ≤ 1W

Interface:

RF signal input: x1; Loop out: x1

Video output: RCA x1

HDMI: x 1

Audio output: Stereo RCA: x1

Digital Audio output S/PDIF: COAXIAL x1

USB2.0 port for External USB PVR function: x1

TUNER

Tuner: DVB-T MX603

Receiving Frequency: VHF 174~230MHz; UHF 474~858MHz

Input signal level: -20~-81dBm

Demodulation

Compliant with: DVB-T

Demodulation: QPSK / 16QAM / 64QAM

Guard interval Modes:1/32,1/16,1/8,1/4

FEC Modes Rate:1/2,2/3,3/4,5/6,7/8

IF bandwidth: 6/7/8MHz

Video Decoding

Compliant with: MPEG-4 part10 /MPEG-2 ISO/IEC 13818-2,

MPEG-4 Simple / Main / Advanced Profile@Level3 10Mbps

MPEG-2 Main Profile@ Main Level 15 Mbps

H.264 MP@L3 10Mbps,H.264 HP-L4.1 30Mbps

Aspect ratio: 4:3/16:9

Video format: PAL/NTSC

Resolution: 480i/480p/576i/576p/720p/1080i/1080P

Audio Decoding

Compliant with: MPEG-1/2/3, HE AAC“Optional”,AC3“Optional”

Company Information

CEKE has built a long-term and good R&D cooperative relationship with China North Industries Group 206 Institute, Guilin Institute of Automation Technology, Beijing University of Posts and Telecommunication and Guilin College of Aerospace Technology.

CEKE has passed the international ISO9001 Quality System Certification, and the digital television transmitter has passed the State Administration of Radio Film and Television (SARFT), SRRC,AQSIQ certification.

CEKE was awarded “Guilin National Microwave and Optical Communication High and New Technology Industrialization Base” by the Ministry of Science and Technology in 2011.

Our Services

CEKE welcome customers sharing experience in our company, and we provide one week training for customers, including transmitter technology, engineering and maintaining regulations. We also can dispatch engineers overseas to install equipments, but customers should bear the cost of return-trip tickets, visa fees, accommodations, etc.

We are committed to provide customers with the most competitive price, one year free warranty period(Non-artificial damage) and maintenance for lifetime to enhance our long-term cooperation. For mutual benefit, we spare no efforts in satisfying our customer in every possible way.
