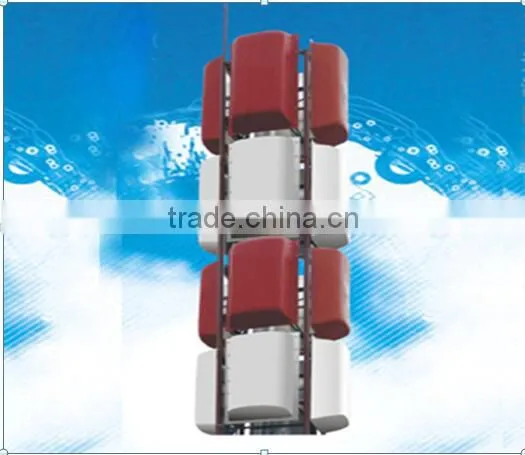

Help CenterFour-dipole Plate Transmitting Antenna for TV
Related Products
-
Four-dipole Plate Transmitting Antenna for Digital tv SingalNegotiableMOQ: 1 Set -
Lightning Arrester for AntennaUS$ 1 - 1MOQ: 10 Pieces
-
Outdoor UHF Digital TV Yagi AntennaUS$ 2 - 10MOQ: 500 Sets
-
Digital TV Omni Directional Outdoor AntennaUS$ 1 - 1,000MOQ: 500 Sets
-
Outdoor UHF HDTV AntennaUS$ 2 - 10MOQ: 500 Sets
n Oscillator using the silver-plated copper material, corrosion performance, the match ability is good.
n The outer cover using the high-quality FRP material,good corrosion resistance, high strength,
n High gain, good water resistance
n Large range AGC control circuit (50dB), high-precision ALC compensation function, ensure the output power stability when external signal large changes.
n Complete intallation auxiliary materials, easy to install.
n Power divider uses finely drawn brass tube, inner conductor silver uses silver-plated copper material, flange interface uses nickel-plated copper material.
Indicators |
Parameters |
Unit |
Channel range |
470~860 |
MHZ |
Gain |
9.5(two-four) 12.5(four-four) 14(six-four) |
dBi |
Polarization |
Horizontal or vertical polarization |
|
Power capacity |
0.1~50 |
KW |
VSWR |
Veneer antenna≤1.10 Branch cable≤1.05 Overall system index≤1.08 |
|
Impedance |
50 |
Ω |
Wind load |
>200 |
KM/h |
Temperature range |
-60~ +80 |
℃ |
Antenna pattern |
Horizontal pattern: roundness≤ +3 dB Vertical pattern: beam declination: 0.5-1 ° |
|
The first zero filling |
>10% |
|
