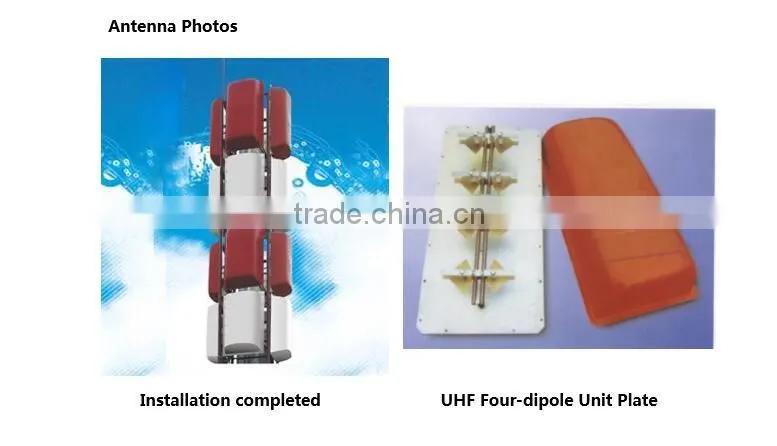

Four-dipole Plate UHF Transmitting Antenna For UHF TV Transmitter
Key Features
Oscillator using the silver-plated copper material, corrosion performance, the match ability is good.
The outer cover using the high-quality FRP material,good corrosion resistance, high strength.
High gain, good water resistance .
Large range AGC control circuit (50dB), high-precision ALC compensation function, ensure the output power stability when external signal large changes.
Complete intallation auxiliary materials, easy to install.
Power divider uses finely drawn brass tube, inner conductor silver uses silver-plated copper material, flange interface uses nickel-plated copper material.

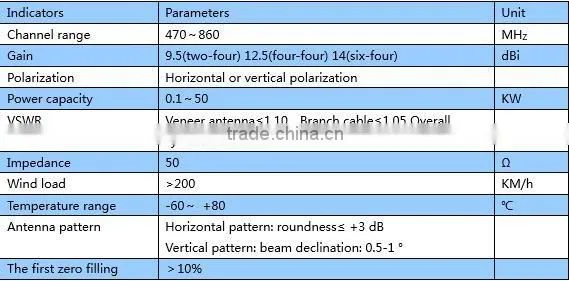

Technical Specifications
Typical Applications
Used in UHF terrestrial wireless terrestrial digital TV signal transmission
system.

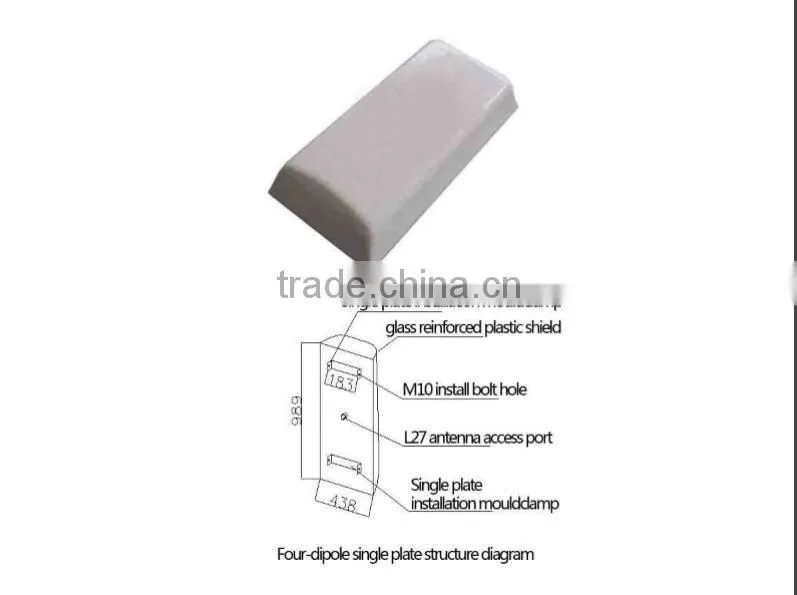

Four-dipole plate transmitting antenna shape and size
Dimension: 950mm×450mm×300mmm

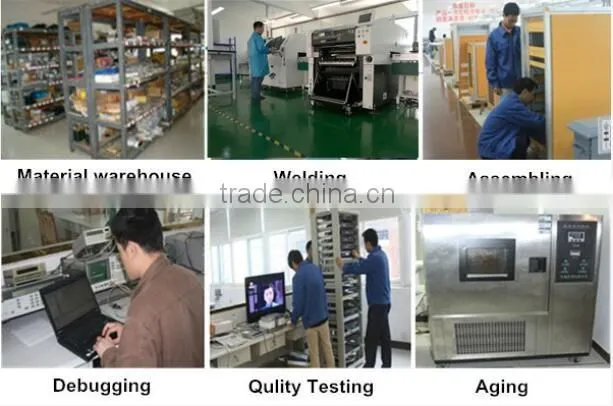

Production Flow
Packing and shipping

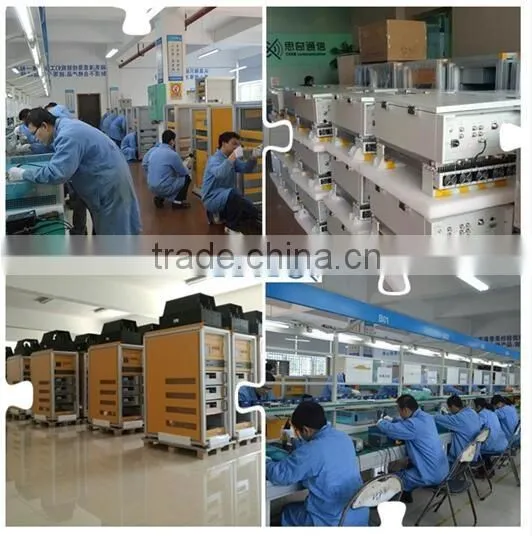

Company Introduce
Company file
Since established in High-tech Information Industrial Park Guilin, China in 2000, Guilin CEKE Communication Equipment Co., Ltd is dedicated in R&D, manufacturing, sales, engineering, technical support and after-sales service of MMDS transmitters, digital TV transmitters/repeaters as well as TV and radio microwave transmission equipment for radio &TV broadcasting. Our products have been certified by ISO9001 and got more than 10 patents, and have been exported to customers in 40 countries and regions Europe, America, Central Asia, Southeast Asia, Africa and Oceania.
We are not only provider of equipment but also a global provider of integrated solution for pay-TV broadcasting. We have successfully DTTV system integration projects countries like Sri Lanka,Kyrgyzstan, Costa Rica, Madagascar, Vanuatu and Equatorial Guinea.
