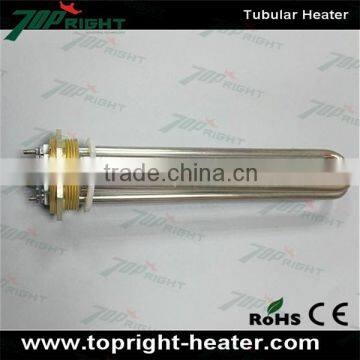

Topright high density 6kw U type industrial brass flange electric tubular

Name: Topright high density 6kw U type industrial brass flange electric tubular
Brand: Topright
Price: USD $2.5 - 10 / Piece

FOB Price

USD $2.5 - $10 / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Immersion Heater	Power Source:	Electric
Place of Origin:	Jiangsu, China	Brand Name:	Topright	Model Number:	TR2016072915
Dimension(LWH):	customized	Weight:	customized, 4.5	Voltage:	12v or customized, 220-380V, 220-380v
Power(W):	1.1-6.5W/CM2, 1-5kw or customized	Certification:	CE	Warranty:	One Year
After-sales Service Provided:	Overseas third-party support available

Product Description

Specifications

1) NIickel chromium resistance wire

2)Tube material SS304/316/321/Incoloy

3)high efficient heat transfer

4)Various shapes

Product Description

Product Description:

Topright Brand Tubular heating element are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time.

Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications.

Screw in Tubular heating element are standardised for use in liquids like water.

Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available.

Features:

HI-POT Test	1500V/S min cold condition
Insulation resistance	20M Ω min
Leakage current	0.75ma max
Power tolerance	+5%,-10%
Voltage	120V-440V
Diameter range	1mm to 40mm
Heating resistance wire	0Cr25Al5,Cr20Ni80 or as custom's requirement
Air tubular heater wattage	≥ 2w-4w/cm2
Water tubular heater wattage	≥ 6w-10w/cm2
Dies and fin tubular heater	≥ 8W-12w/cm2

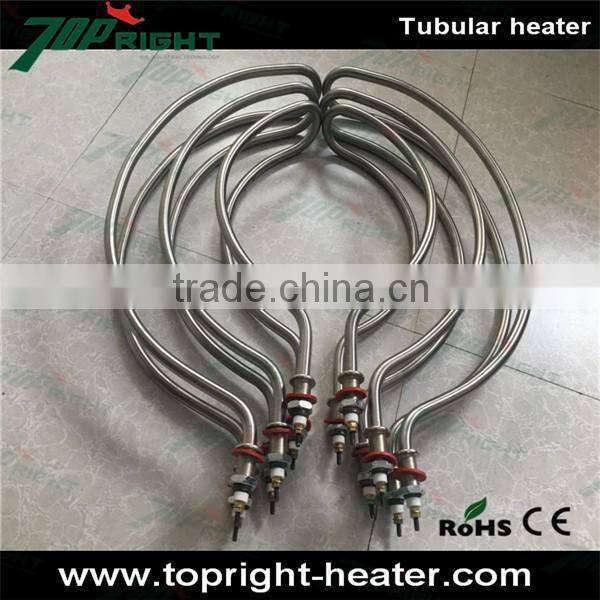

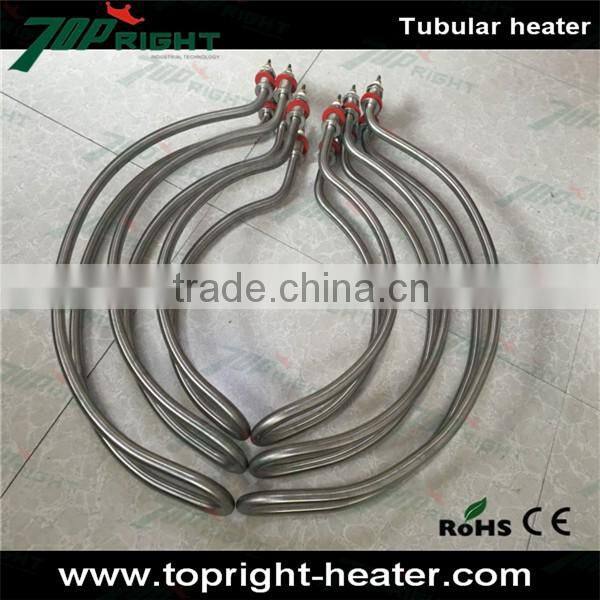

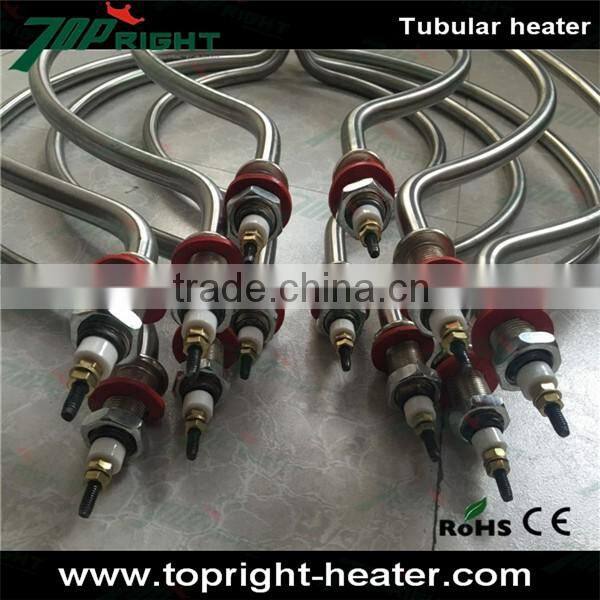

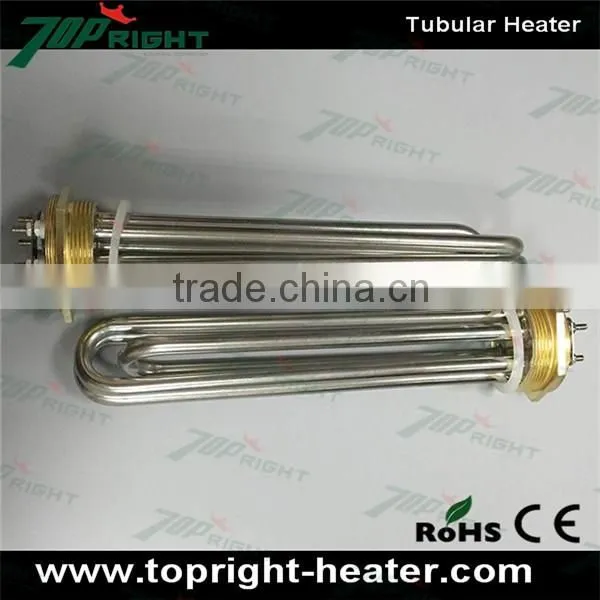

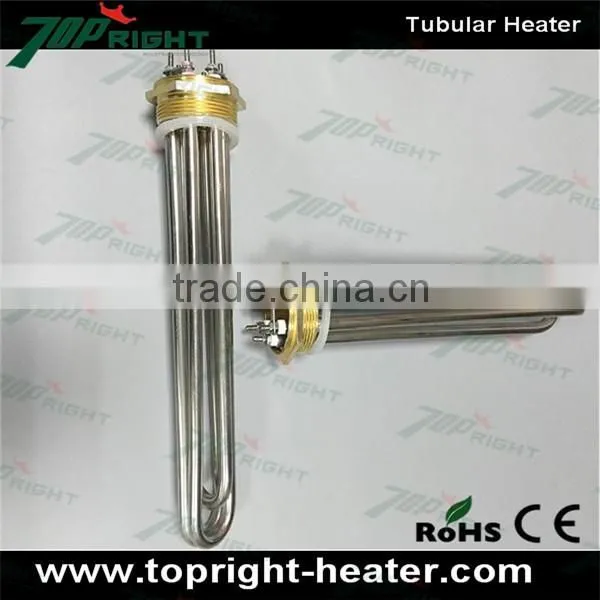

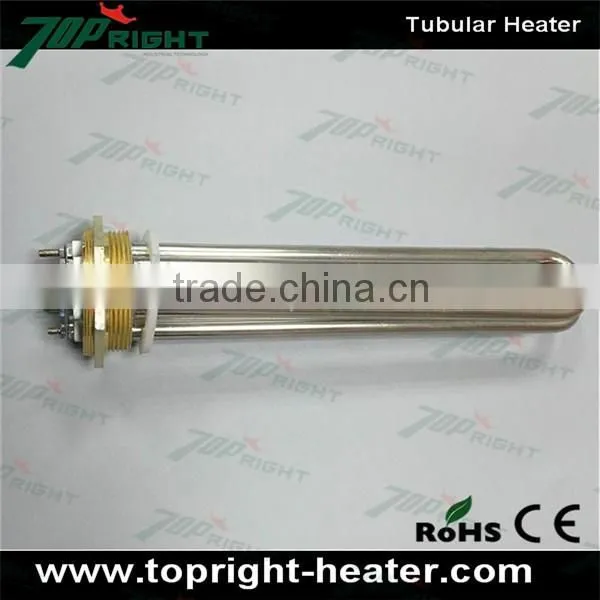

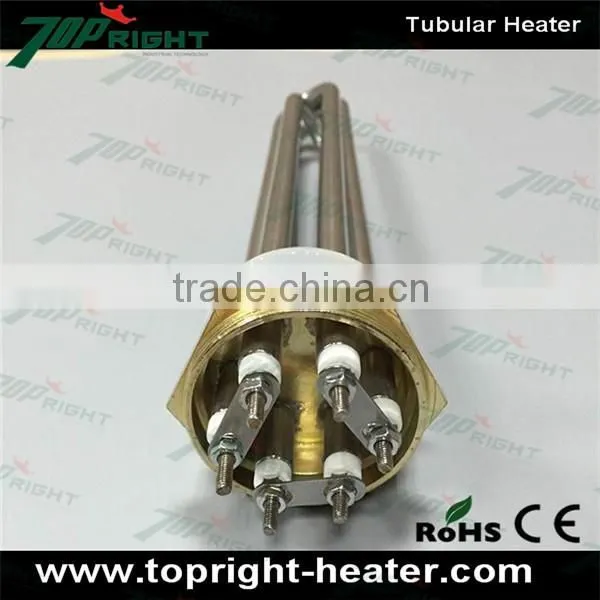

Tubular heater photos in Topright Industrial Technology and etc:

More Products choice

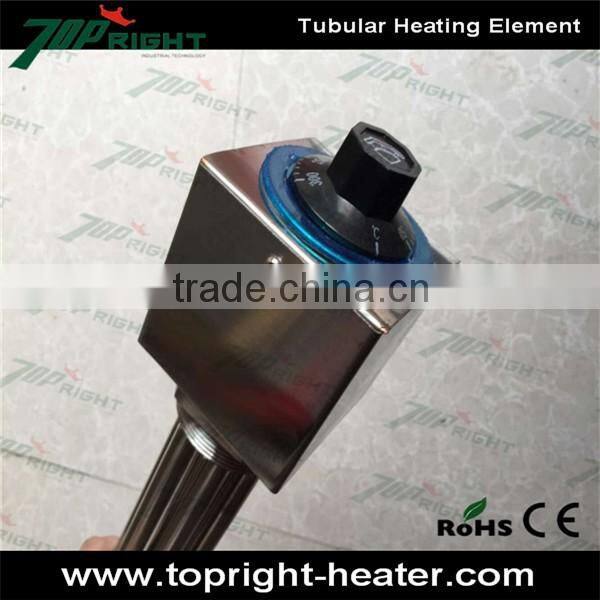

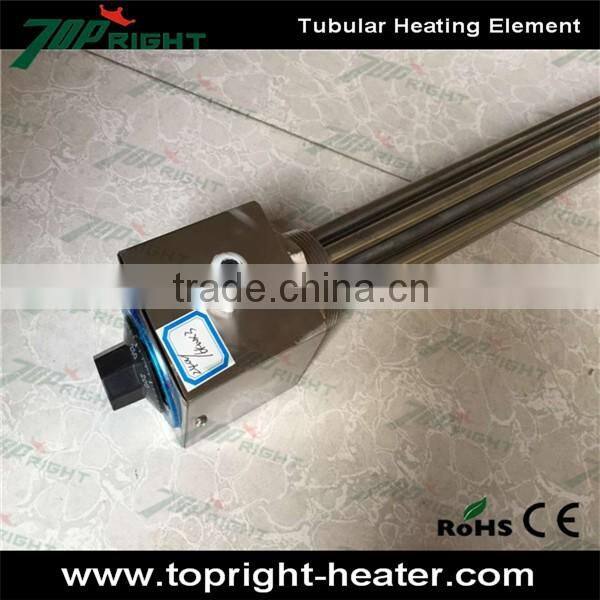

The tubular heater with thermostat

Application

Tubular heater application:

Liquid Immersion

Plastic Molds

Dies

Labeling

Medical Equipment

Platens

Packaging Equipment

Hot Stamping

Sealing

Injection Molding

Tubular Heater Features & Benefits:

1.Available in a broad variety of sheaths, diameters, and ratings;

2.Supplied with electrically insulated sheath;

3.Provide superior internal electrical insulation and heat conductivity;

4.Easy to install;

5.Configurable to virtually any shape;

6.Compact size;

7.Precise and easy control of heat output;

8.Durable;

9.Easy to maintain;

10.Easy to replace thus eliminating long shut-down periods;
