Home > Products > Tubular Heating elements > Double-end coil heater/ tubular heater

Double-end coil heater/ tubular heater

FOB Price

USD $10 - $30 / Piece

10 Pieces(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Immersion Heater
Power Source	Electric	Place of Origin	Jiangsu, China
Brand Name	Topright, Topright	Model Number	TRTH2016081208, Flange tubular water heater
Dimension(LWH)	customized	Weight	customized
Voltage	110-480V(Customized), 120-380v	Power(W)	1000w-100KW(Customized)
Certification	CE	Warranty	one year, one year
After-sales Service Provided	Overseas third-party support available

Product Description

Quick Details:

1) NIickel chromium resistance wire
2)Tube material SS304/316/321/Incoloy
3)high efficient heat transfer

Product Description

Topright Brand Tubular heating element are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time.

Even though Tubular heating element are technically rather mature and universal to use, there exist various new innovative solutions for many applications.

Screw in Tubular heating element are standardised for use in liquids like water.

Tubular heating element are easy to install,control and maintain, unique designer as your requirement. For corrosive enviroment, titanium material or tubular heating elements with additional teflon sleeving are available.

Features:

HI-POT Test	1500V/S min cold condition
Insulation resistance	20M Ω min
Leakage current	0.75ma max
Power tolerance	+5%,-10%
Voltage	110v-440V
Diameter range	1mm to 40mm
Heating resistance wire	0Cr25Al5,Cr20Ni80 or as custom's requirement
Air tubular heater wattage	≥ 2w-4w/cm2
Water tubular heater wattage	≥ 6w-10w/cm2
Dies and fin tubular heater	≥ 8W-12w/cm2

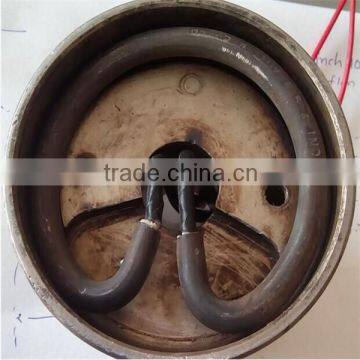

Tubular heater photos in Topright Industrial Technology and etc:

Tubular heater structure:

Application

Liquid Immersion

Plastic Molds

Dies

Labeling

Medical Equipment

Platens

Packaging Equipment

Hot Stamping

Sealing

Injection Molding

Tubular Heater Features & Benefits:

1.Available in a broad variety of sheaths, diameters, and ratings;

2.Supplied with electrically insulated sheath;

3.Provide superior internal electrical insulation and heat conductivity;

4.Easy to install;

5.Configurable to virtually any shape;

6.Compact size;

7.Precise and easy control of heat output;

8.Durable;

9.Easy to maintain;

10.Easy to replace thus eliminating long shut-down periods;

Company Information

Topright Technology Culture:

Since 2001,Topright have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development. Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 90 countries. We supply different heating element for example silicone rubber heater, kapton heater, band heater, cartridge heater, tubular heater, thermocouple and ect. More details pls link online store:

How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.

Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
