◊◊ 2015 best price DDS2688 single phase meter ◊◊
DDS2688 single phase electric meter
1. Electrical Meter Description
DDS2688 single phase electric meter
DDS688 single phase electronic watt hour meter is intended for electric energy measurement and registration in single phase two-wire network in household. It adopts LSI(large scare integrated circuit), micro-electronics technique and SMT(surface mount technology) etc. Its performance comply with IEC62053-21, IEC 62052-11.
2. Electrical Meter Technical Features
Technical Parameter:
1.Rated current: 1.5(6), 2.5(10), 5(20), 5(30), 10(40), 10(60), 15(60), 20(80), 30(100)A
2.Rated voltage: 110,120, 220, 230, 240V
3.Accuracy class: Class1, class 2
4.Frequency: 50/60Hz
5.Starting current: 0.04Ib(1.0S), 0.05Ib(2.0S)
1).Measure active electric energy,do not need calibrate for long-term operation;
2).Adopt the special chip of measurennentADE7755;
3).Adopt the latest oversea electric energy special integration circuit,greatly improved dynamic working range of Meter, making the ability of actual overload up to over10 times;
4).Have hood mistake linearity in the range of 5% lb-Imax;
5).Few periphery components,simple structure,low power consumption;
6).Adopt high reliability and long life electronic components,so the Meter assume feature of high reliability and long life;
Function And Features:
1.Front board three fixed hole installation, terminal block is make of bakelite material, which is moisture-resistant, fire-retardant, high temperature overall.
2.Way of connection: direct connection, through CT, through CT&PT.
3.High accuracy and stability: there is no need to re-calibrate for long term operation.
4.steel and antirust base and long terminal cover, transparent glass cover. May select other materials, such as ABS, Polycarbonate etc.
5.Standard configuration unidirectional 5+1 digits analog register (99999.1kwh), may select LCD or LED display.
6.May extend Communication port, such as RS485, RS232, IR (infrared radiation) etc.
7.simple structure, small volume, low power consumption and light weight etc.
8.Anti-fraud function (optional)
Wide application:

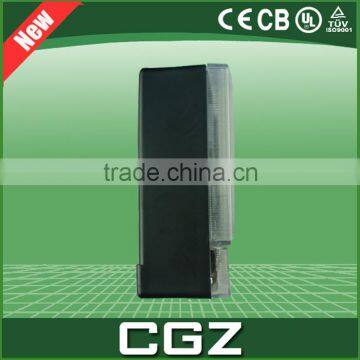

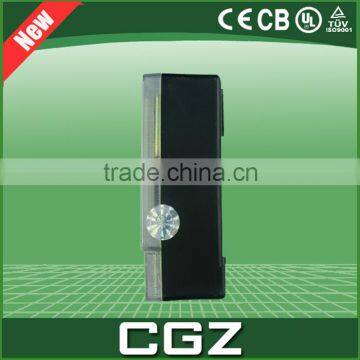

3. Electrical Meter Product Pictures
4.Electrical Meter Detail
DDS2688 single phase electric meter
Different electrical meter types for selection
From left to right
1.DD862-4 transparent single phase electrical meter
2.DD862-2 black single phase electrical meter
3.White Pre-paid meters
4.DT862 transparent three phase electrical meter
5.DT862 black three phase electrical meter
6.DDS2688 single phase electronic watt-hour meter
DDS2688 single phase electric meter
Company View
Our Certifications
Our Exhibitions
Our Services
1. Reply your enquiry in 24 working hours.
2. Experienced staffs answer all your questions in professional and fluent English.
3. Customized design is available. OEM & ODM are welcome.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to your distributor.
FAQ
Q1:what's the delivery time?
A1:Usually it will take about 15 days for production.
Q2:tell me the standard of package?
A2:Standard export carton packing with good quality carton box.
Q3:Can you accept to use our logo?
A3:If you have good quantity,it absolute no problem to do OEM.
Q4:We want to know monthly capacity.
A4:100000pcs/month.
Q5:what kind of certificate do you have?
A5:Our company already achieve ISO, and for products, we have CE & CB certificates.
