Specifications
plastic recycling machine65% plastic oil extraction machine
automatic plastic recycling machine
plastic pyrolysis to oil
Pyrolysis waste plastic recycling machine for crude oil

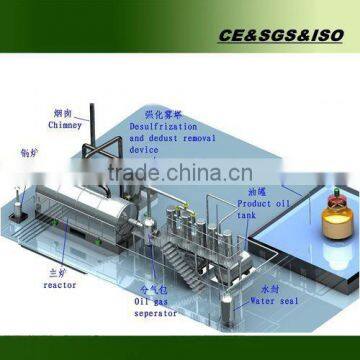

plastic recycling machine
1.horizontal reator
2.feeding raw material machine
3.sub-package
oling dust system
5.2nd remove dust chamber
6.heavy oil tank
7.oil and water separate tank
8.water cooling system
9.water seal
10.test pressure and temperature system
11.electricity control system
ndensation system
13.waste gas burning system
14.remove dust and sulphur system
15.total area: 300 square meters
plastic recycling machine
NO. |
Project |
Content |
||
1 |
Model |
LJ-8 |
LJ-9 |
LJ-10 |
2 |
Raw material |
Plastic |
Plastic |
Plastic |
3 |
Structure form |
Horizontal |
Horizontal |
Horizontal |
4 |
10hours |
5 tons raw material |
8 tons raw material |
10 tons raw material |
5 |
10hours |
3.3 tons fuel oil |
4.6 tons fuel oil |
6.5 tons fuel oil |
6 |
Work pressure |
atmospheric |
atmospheric |
atmospheric |
7 |
Host speed |
0.4r/w |
0.4r/w |
0.4r/w |
8 |
power |
12kw |
12kw |
15.5kw |
9 |
cooling |
Water cooling |
Water cooling |
Water cooling |
10 |
Lose water(T/h) |
0.2 tons |
0.3 tons |
0.4 tons |
11 |
transport |
Belt drive |
Belt Belt drive |
Belt drive |
12 |
Heating method |
Directly |
Directly |
Directly |
13 |
Installation |
foundation |
Foundation |
foundation |
14 |
Noise dB(A) |
≤85 |
≤85 |
≤85 |
15 |
size diameter *length |
2200*6000 |
2200*6600 |
2600*6600 |
16 |
working form |
continuous operation |
continuous operation |
continuous operation |
17 |
packing |
2* 40HQ |
2* 40HQ |
1* 40FR+ 1* 40HQ |
18 |
warranty |
lifetime |
lifetime |
lifetime |
plastic recycling machine-First, the raw materials are put into the furnace, then seal the feed inlet then the bottom of the reactor will slowly heat the wastes by coal or electricity. When the temperature reaches the degree of 250 to 280, we will get the crude oil, the oil steam will be continuous produced until the temperature reaches 300-400°C; oil steam will flow through light and heavy components separating device; light component will enter the condenser and meanwhile the residues will be discharged automatically in succession. But the liquefied part will be condensed to rubber oil, and the part that cannot be liquefied will be input into heating supply system for burning by way of combustion gas purification system.
plastic recycling machine
a plastic recycling machine --
This achievement essential equipment-plit processor adopts the horizontal type revolving structure, the catalyzed split craft and
the product chemistry extract technology.
b. plastic recycling machine --Provides the environmental protection equipment is perfect. For instance waste gas burner and smoke dust removal room.
c. plastic recycling machine --
Adopts the simple chemistry method, has solved the product color and the unusual smell.
d. plastic recycling machine --
The oil extraction rate of the pure waste plastic is not lower than 50%
e. plastic recycling machine --
This equipment design is reasonable, manufacture craft is advanced, high automatically, and the complete safety equipment .
f. plastic recycling machine --
feeding raw material and Auto slag quickly ,300KG carbon black only need 30min
Security & Environmental friendly-- plastic recycling machine
The main equipment is of high safety. The phase of the unliquefizable waste gas produced during the process is alkyl
from C1 to C4, which is dangerous when burning directly. In our process, it is transferred first through a water close
device and a safety device- burning air muzzle. Before burning, we should ensure the safety of production.
